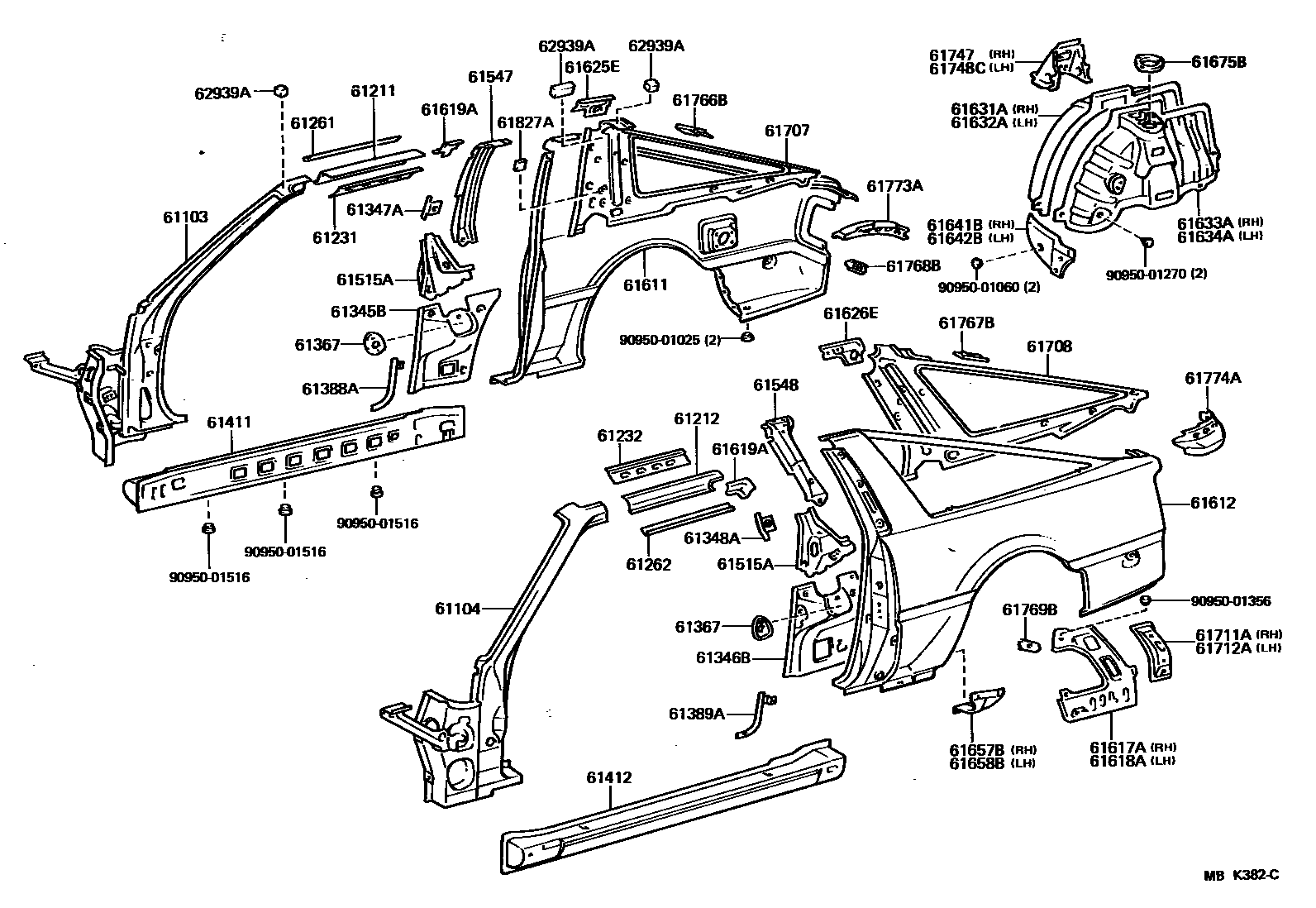

SIDE MEMBER

0001 1 0002 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14290iMA70..RHD..SPR198604-198808

sub61021-14291

sub82819-14230

main61021-14320iMA70..LHD..SPR198604-198808

main61021-14330iMA70..RHD..LB198601-198808

sub61021-14331

sub82819-14230

main61021-14340iMA70..LHD..LB198601-198808

sub61021-14360

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14330iMA70..RHD..SPR198604-198808

main61022-14340iMA70..LHD..SPR198604-198808

main61022-14350iMA70..RHD..LB198601-198808

sub61022-14370

main61022-14360iMA70..LHD..LB198601-198808

sub61022-14380

61211RAIL, ROOF SIDE, OUTER RH

main61211-14150iMA70..LB198601-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-14150iMA70..LB198601-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-14210iMA70..LB198601-198808

sub61231-14211

61232RAIL, ROOF SIDE, INNER LH

main61232-14190iMA70..LB198601-198808

sub61232-14191

61261CHANNEL, ROOF DRIP, RH

main61261-14080iMA70..LB198601-198808

61262CHANNEL, ROOF DRIP, LH

main61262-14080iMA70..LB198601-198808

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-14030iMA70198601-198808

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-14030iMA70198601-198808

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-14080iMA70198601-198808

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-14080iMA70198601-198808

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-24010iMA70198601-198808

61388APLATE, CENTER BODY PILLAR END, RH

main61388-14010iMA70..LB198601-198808

61389APLATE, CENTER BODY PILLAR END, LH

main61389-14010iMA70..LB198601-198808

61411PANEL, ROCKER, OUTER RH

main61401-14070iMA70..SPR198604-198808

main61401-14100iMA70..LB198601-198808

61412PANEL, ROCKER, OUTER LH

main61402-14070iMA70..SPR198604-198808

main61402-14100iMA70..LB198601-198808

61515AEXTENSION, QUARTER LOCK PILLAR

main61515-14010iMA70198601-198808

RH

main61516-14010iMA70198601-198808

LH

61547REINFORCEMENT, QUARTER PILLAR, INNER RH

main61547-14010iMA70..SPR198604-198808

main61547-14020iMA70..LB198601-198808

61548REINFORCEMENT, QUARTER PILLAR, INNER LH

main61548-14010iMA70..SPR198604-198808

main61548-14020iMA70..LB198601-198808

61611PANEL, QUARTER, RH

main61601-1B901iMA70..LB..SA198601-198808

sub61601-1B922

sub90333-15002

main61601-1B903iMA70..LB..(ARL,EUR,GCC,GEN)198601-198808

sub61601-1B914

sub90333-15002

main61601-1B905iMA70..SPR..SA198604-198808

sub61601-1B923

sub90333-15002

main61601-1B907iMA70..SPR..(ARL,EUR,GCC,GEN)198604-198808

sub61601-1B918

sub90333-15002

61612PANEL, QUARTER, LH

main61602-1B901iMA70..LB..(ARL,EUR,GEN,SA)198601-198808

sub61602-1B915

sub90333-15002

main61602-1B902iMA70..LB..GCC198601-198808

sub61602-1B901

sub61602-1B911

main61602-1B903iMA70..SPR..(ARL,EUR,GEN,SA)198604-198808

sub61602-1B919

sub90333-15002

main61602-1B904iMA70..SPR..GCC198604-198808

sub61602-1B903

61617APANEL, QUARTER INNER, REAR RH

main61617-14080iMA70198601-198808

61618APANEL, QUARTER, INNER REAR LH

main61618-14090iMA70198601-198808

61619AREINFORCEMENT, QUARTER PANEL

main61619-14040iMA70..LB198601-198808

RH

main61629-14040iMA70..LB198601-198808

LH

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-14050iMA70..SPR198604-198808

main61625-14060iMA70..LB198601-198808

sub61625-14061

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-14050iMA70..SPR198604-198808

main61626-14060iMA70..LB198601-198808

sub61626-14061

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-14180iMA70198601-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-14180iMA70198601-198808

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-14902iMA70..LB198609-198808

main61607-14904iMA70..LB198601-198609

sub61607-14902

sub90333-25001

main61607-14905iMA70..SPR198604-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-14903iMA70..LB198609-198808

main61608-14905iMA70..LB198601-198609

sub61608-14903

sub90333-25001

main61608-14906iMA70..SPR198609-198808

sub61608-14908

main61608-14907iMA70..SPR198604-198609

sub61608-14906

sub90333-25001

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-14030iMA70198601-198808

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-14020iMA70..LB198601-198808

main61642-14030iMA70..SPR198604-198608

61657BHOUSING, QUARTER PANEL END, LOWER RH

main61657-14050iMA70198601-198808

61658BHOUSING, QUARTER PANEL END, LOWER LH

main61658-14040iMA70198601-198808

61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-14040iMA70198601-198808

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61613-14130iMA70198601-198808

sub61613-14131

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61614-14130iMA70198601-198808

sub61614-14131

61711AREINFORCEMENT, ROOF SIDE, OUTER RH

main61713-14020iMA70198601-198808

61712AREINFORCEMENT, ROOF SIDE, OUTER LH

main61714-14020iMA70198601-198808

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-14050iMA70198601-198808

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-14060iMA70198601-198808

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-14050iMA70198601-198808

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-14060iMA70198601-198808

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-32010iMA70198601-198808

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61768-32010iMA70..TWC198601-198808

61773APATCH, BACK DOOR OPENING, LOWER RH

main61773-14020iMA70198601-198808

sub61773-14021

61774APATCH, BACK DOOR OPENING, LOWER LH

main61774-14020iMA70198601-198808

61827APLATE, NOISE CONTROL, NO.4

main61827-14010iMA70..LB198601-198808

62939ASILENCER, QUARTER VENT

main62939-14030iMA70198601-198808

9095001025

main90950-01025

9095001060

main90950-01060

9095001270

main90950-01270

9095001356

main90950-01356

9095001516

main90950-01516

55 parts on this diagram · 2 diagrams in section
