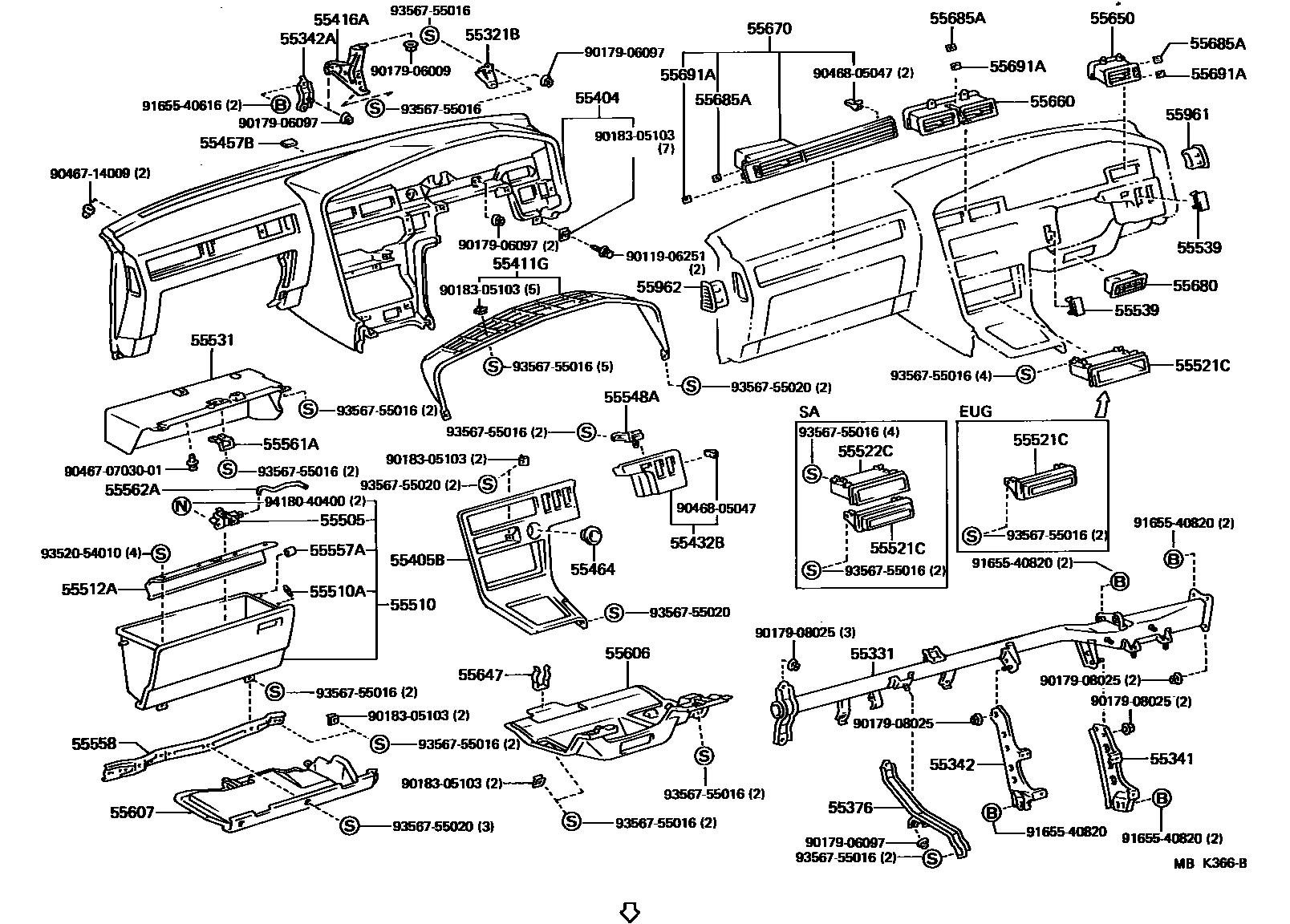

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-14050iMA70..RHD¥510198601-198808

main55321-14060iMA70..LHD¥510198601-198808

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14040iMA70..RHD¥16,300198601-198808

main55330-14050iMA70..LHD¥16,700198601-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14060iMA70..RHD¥1,810198601-198808

main55306-14090iMA70..LHD¥1,830198601-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14130iMA70..RHD¥2,350198601-198808

main55307-14140iMA70..LHD¥2,350198601-198808

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-14040iMA70¥510198601-198808

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14030iMA70..RHD¥1,440198601-198808

main55376-14040iMA70..LHD¥1,440198601-198808

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14480-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55401-14480-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55401-14480-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55401-14480-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

main55401-14490-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55401-14490-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55401-14490-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55401-14490-05iMA70..LHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14080iMA70..RHD¥18,300198601-198808

sub55405-14100¥18,100

main55405-14090iMA70..LHD¥16,200198601-198808

sub55405-14110¥18,100

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-14530iMA70..RHD¥6,700198601-198808

main55411-14540iMA70..LHD¥6,700198601-198808

55416ARETAINER, METER HOOD, NO.1

main55416-14060iMA70..RHD¥1,280198601-198808

main55416-14070iMA70..LHD¥1,280198601-198808

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14190iMA70..RHD¥2,500198601-198808

sub55432-14220¥2,490

main55432-14210iMA70..LHD¥2,860198601-198808

sub55432-14240¥2,840

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iMA70¥190198601-198808

55464BASE, CIGARETTE LIGHTER

main55477-24020iMA70¥1,430198601-198808

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-14030iMA70..RHD¥2,260198601-198808

main55560-14040iMA70..LHD¥2,260198601-198808

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14160-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55550-14160-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55550-14160-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55550-14160-05iMA70..LHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

main55550-14170-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55550-14170-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55550-14170-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55550-14170-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iMA70¥110198601-198808

55512APLATE, GLOVE COMPARTMENT

main55512-14060iMA70..RHD¥2,050198601-198808

main55512-14070iMA70..LHD¥2,050198601-198808

55521CCOVER, STEREO OPENING

main55022-14010iMA70..SA;MA70..EUG¥3,910198601-198808

main55521-14010iMA70..TWT198708-198808

*IPM

main55521-16010iMA70..ARL¥1,750198601-198808

sub55521-16030¥1,580

55522CCOVER, RADIO RECEIVER OPENING

main55521-16010iMA70..SA¥1,750198601-198808

sub55521-16030¥1,580

55531PANEL, GLOVE COMPARTMENT

main55531-14100iMA70..RHD¥4,460198601-198808

main55531-14110iMA70..LHD¥4,460198601-198808

55539COVER, SPARE SWITCH HOLE

main55539-14040iMA70..SDZ;MA70..ARL,GCC,GEN,SA¥470198601-198808

sub55539-14050¥470

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-14030iMA70¥680198601-198808

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iMA70¥230198601-198808

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-14020iMA70..RHD¥2,370198601-198805

sub55558-14021¥2,360

main55558-14021iMA70..RHD¥2,360198805-198808

main55558-14030iMA70..LHD¥2,370198601-198805

sub55558-14031¥2,360

main55558-14031iMA70..LHD¥2,360198805-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-14060iMA70¥620198601-198808

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-14030iMA70..RHD¥440198601-198808

main55562-14040iMA70..LHD¥440198601-198808

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14060-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55606-14060-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55606-14060-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55606-14060-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

main55606-14070-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55606-14070-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55606-14070-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55606-14070-05iMA70..LHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14090-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55607-14090-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55607-14090-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55607-14090-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

main55607-14100-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

main55607-14100-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main55607-14100-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

main55607-14100-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iMA70¥320198601-198808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14110iMA70..RHD¥3,600198601-198808

main55650-14120iMA70..LHD¥2,690198601-198808

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14110iMA70..RHD¥6,700198601-198808

main55660-14120iMA70..LHD¥4,780198601-198808

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14050-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub55670-14070¥4,210

main55670-14050-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub55670-14070¥4,210

main55670-14050-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub55670-14070¥4,210

main55670-14050-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub55670-14070¥4,210

main55670-14060-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub55670-14080¥4,210

main55670-14060-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub55670-14080¥4,210

main55670-14060-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub55670-14080¥4,210

main55670-14060-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub55670-14080¥4,210

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub55680-14030¥1,870

main55680-14030-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub55680-14030¥1,870

main55680-14030-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub55680-14030¥1,870

55685APLATE, AIR DAMPER CONTROL NAME, NO.4

main55685-14010iMA70¥180198601-198808

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55691-14010iMA70¥180198601-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14070-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub55961-14070¥740

main55961-14070-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub55961-14070¥740

main55961-14070-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub55961-14070¥740

main55961-14070-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub55961-14070¥740

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14050-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub55962-14050¥740

main55962-14050-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub55962-14050¥740

main55962-14050-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub55962-14050¥740

main55962-14050-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub55962-14050¥740

9011906251

main90119-06251¥160

9017906009

main90179-06009¥120

9017906097

main90179-06097¥320

9017908025

main90179-08025¥80

9018305103

main90183-05103¥90

904670703001

main90467-0703001

9046714009

main90467-14009¥90

9046805047

main90468-05047¥90

9165540616

main91655-40616¥120

9165540820

main91655-40820¥140

9352054010

main93520-54010¥110

9356755016

main93567-55016¥110

9356755020

main93567-55020¥70

9418040400

main94180-40400¥160

51 parts on this diagram · 2 diagrams in section
