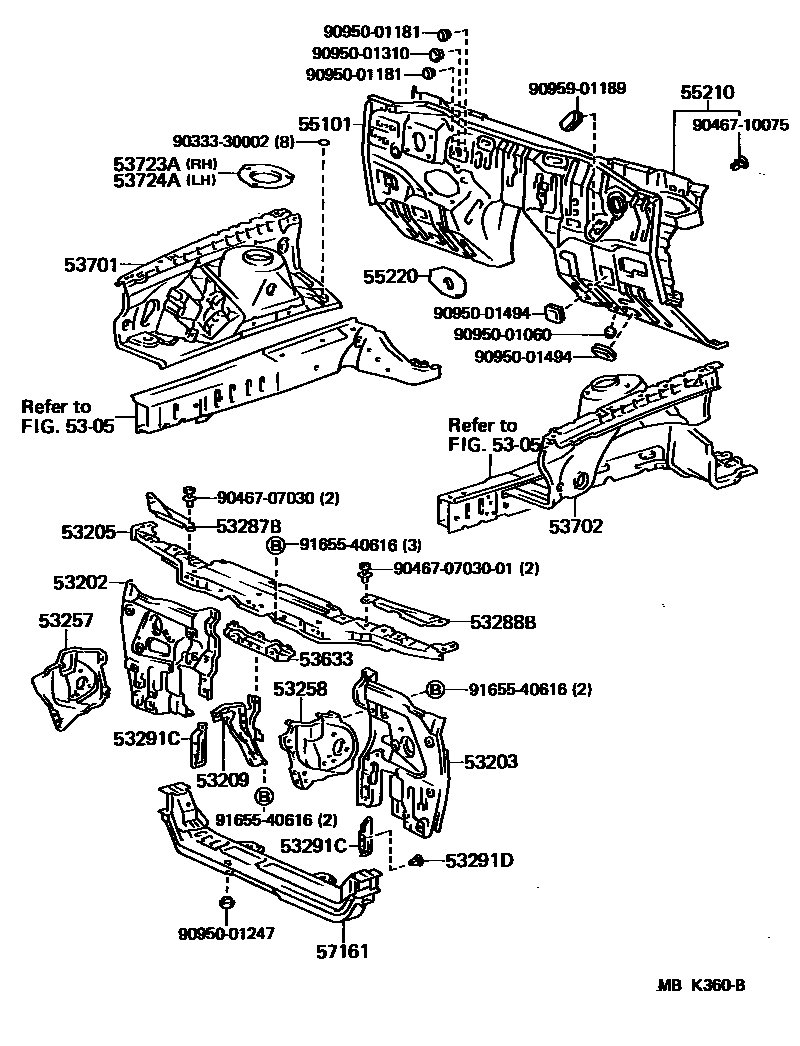

FRONT FENDER APRON & DASH PANEL
5305
53202SUPPORT SUB-ASSY, RADIATOR, RH
sub53211-14221
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53257BRACKET, FRONT END PANEL MOUNTING, RH
53258BRACKET, FRONT END PANEL MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291CSEAL, RADIATOR SUPPORT TO FRAME
RH
LH
53291DCLIP, RADIATOR SUPPORT TO FRAME
sub90467-08136
53633SHIELD, HOOD LOCK CONTROL CABLE
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-14935
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
55210INSULATOR ASSY, DASH PANEL
55220INSULATOR ASSY, DASH PANEL, NO.2
57161CROSSMEMBER, FRONT
9033330002
main90333-30002
9046707030
main90467-07030
904670703001
main90467-0703001
9046710075
main90467-10075
9095001060
main90950-01060
9095001181
main90950-01181
9095001247
main90950-01247
9095001310
main90950-01310
9095001494
main90950-01494
9095901189
main90959-01189
9165540616
main91655-40616
31 parts on this diagram · 1 diagram in section
