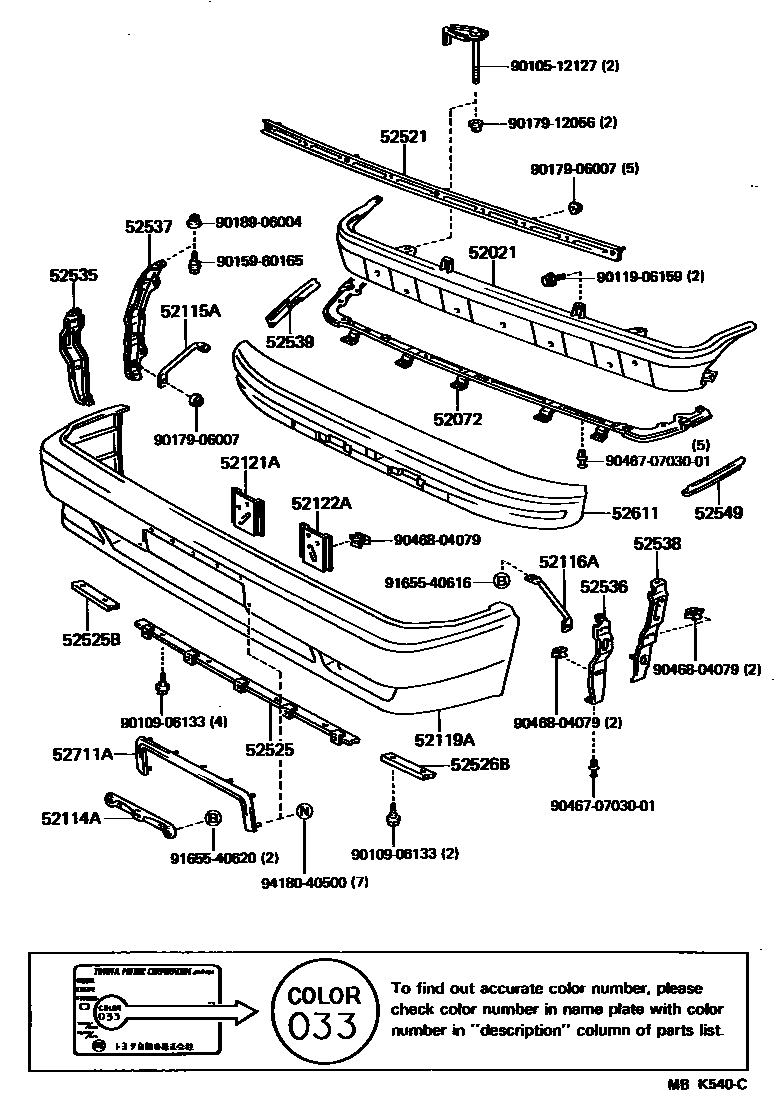

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
W/O LICENCE MOULDING
W/LICENCE MOULDING
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52525BRETAINER, FRONT BUMPER, LOWER SIDE RH
52526BRETAINER, FRONT BUMPER, LOWER SIDE LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52539RETAINER, FRONT BUMPER SIDE, NO.3 RH
52549RETAINER, FRONT BUMPER SIDE, NO.3 LH
52611ABSORBER, FRONT BUMPER ENERGY
52711AGARNISH, FRONT BUMPER
BLACK,BLACK,204 ,8D4 ,27A
RED MICA,RED MICA,3H1
SILVER-M,AMETHYST SILVER M,920
SUPER WHITE 2,SUPER WHITE 2,040
SUPER RED2,SUPER RED 2,3E5
LIGHT BLUE-M,LIGHT BLUE METALLIC,8D8
9010512127
main90105-12127
9010906133
main90109-06133
9011906159
main90119-06159
9015960165
main90159-60165
9017906007
main90179-06007
9017912056
main90179-12056
9018906004
main90189-06004
904670703001
main90467-0703001
9046804079
main90468-04079
9165540616
main91655-40616
9165540620
main91655-40620
9418040500
main94180-40500
32 parts on this diagram · 1 diagram in section
