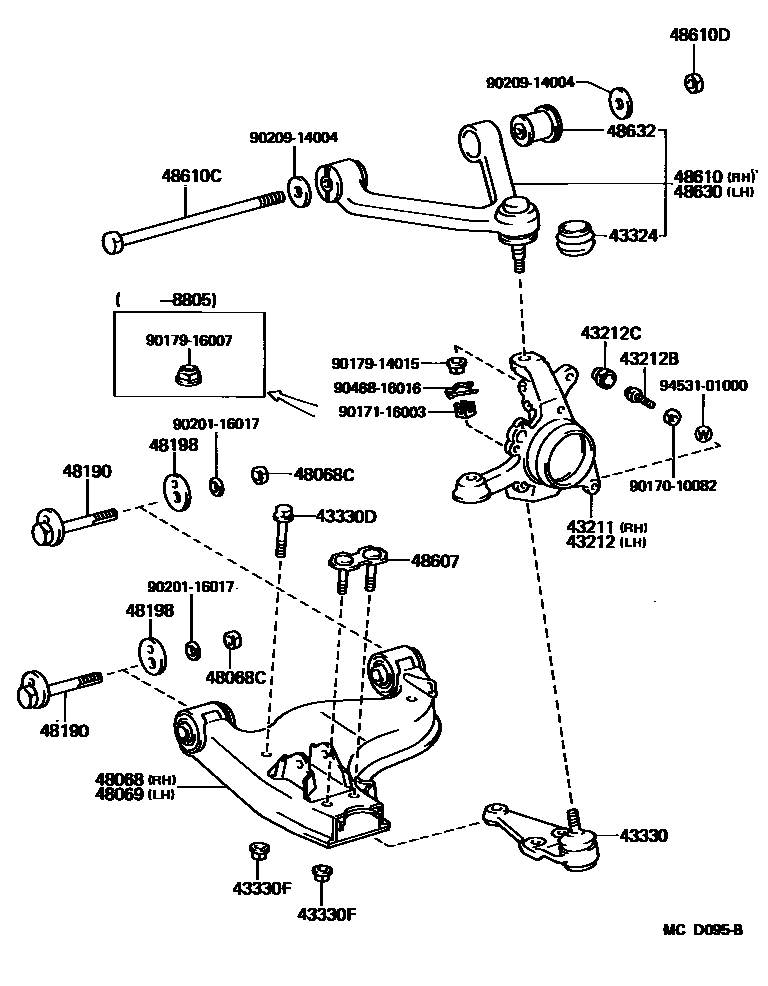

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W/*66
43212KNUCKLE, STEERING, LH
W/*66
43212BBOLT (FOR FRONT KNUCKLE STOPPER)
43212CCOVER, FRONT KNUCKLE STOPPER
43324COVER, UPPER JOINT DUST
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
sub94130-01602
48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
sub48610-19015
48610CBOLT(FOR SUSPENSION UPPER ARM)
48610DNUT(FOR SUSPENSION UPPER ARM)
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
sub48630-19015
48632BUSH, UPPER ARM
9017010082
main90170-10082
9017116003
main90171-16003
9017914015
main90179-14015
9017916007
main90179-16007
9020116017
main90201-16017
9020914004
main90209-14004
9046816016
main90468-16016
9453101000
main94531-01000
27 parts on this diagram · 1 diagram in section
