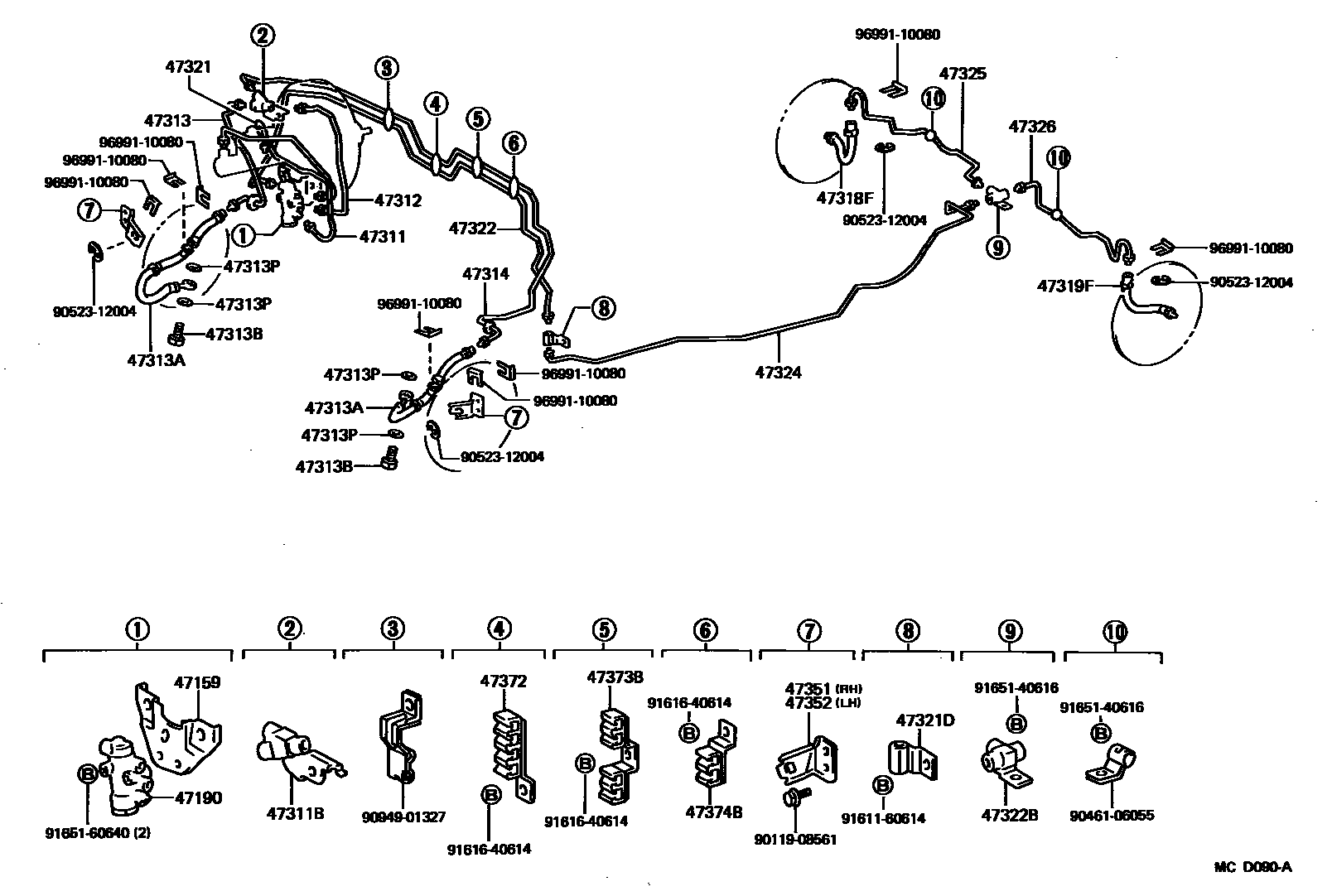

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47159BRACKET, PROPORTIONING VALVE

main47159-14060iMA70..RHD198601-198808

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14060iMA70..RHD..(ARL,GEN,SA)198601-198808

main47190-14070iMA70..LHD..GEN198601-198808

main47190-14080iMA70..RHD..EUG198601-198808

main47190-14090iMA70..LHD..(EUR,GCC)198601-198808

47311TUBE, FRONT BRAKE, NO.1

main47311-14330iMA70..LHD198601-198808

main47311-14340iMA70..RHD198601-198808

main47311-14380iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

main47311-14390iMA70..LHD198604-198808

W/*66

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10137iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

main90413-10200iMA70..RHD198601-198808

main90413-10203iMA70..LHD198601-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-14160iMA70..LHD198601-198808

main47312-14180iMA70..LHD198604-198808

W/*66

main47312-14200iMA70..RHD198601-198808

main47312-14210iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

47313TUBE, FRONT BRAKE, NO.3

main47313-14222iMA70..LHD198601-198808

main47313-14231iMA70..LHD198604-198808

W/*66

main47313-14241iMA70..RHD198601-198808

main47313-14251iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02489iMA70198601-198808

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMA70198601-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iMA70198601-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-14121iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

main47314-14141iMA70..LHD198601-198808

main47314-14151iMA70..LHD198604-198808

W/*66

main47314-14161iMA70..RHD198601-198808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02493iMA70198601-198808

sub90947-02568

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02493iMA70198601-198808

sub90947-02568

47321TUBE, REAR BRAKE, NO.1

main47321-14190iMA70..LHD198601-198808

main47321-14200iMA70..RHD198601-198808

main47321-14210iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

main47321-14220iMA70..LHD198604-198808

W/*66

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10116iMA70198601-198808

47322TUBE, REAR BRAKE, NO.2

main47322-14230iMA70..LHD198601-198808

main47322-14240iMA70..LHD198604-198808

W/*66

main47322-14250iMA70..RHD198601-198808

main47322-14260iMA70..RHD..(EUR,GEN,SA)198604-198808

W/*66

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10004iMA70198601-198808

47324TUBE, REAR BRAKE, NO.4

main47324-14130iMA70198601-198808

47325TUBE, REAR BRAKE, NO.5

main47325-14010iMA70198601-198808

47326TUBE, REAR BRAKE, NO.6

main47326-14010iMA70198601-198808

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-14041iMA70198601-198808

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-14021iMA70198601-198808

47372CLAMP, BRAKE TUBE, NO.2

main47371-14021iMA70..RHD198601-198808

47373BCLAMP, BRAKE TUBE, NO.3

main47371-14010iMA70..RHD198601-198808

main47371-14040iMA70..LHD198604-198608

main47371-14041iMA70..LHD198608-198808

47374BCLAMP, BRAKE TUBE, NO.4

main47371-30010iMA70198601-198808

9011908561

main90119-08561

9046106055

main90461-06055

9052312004

main90523-12004

9094901327

main90949-01327

9161160614

main91611-60614

9161640614

main91616-40614

9165140616

main91651-40616

9165160640

main91651-60640

9699110080

main96991-10080

33 parts on this diagram · 6 diagrams in section
