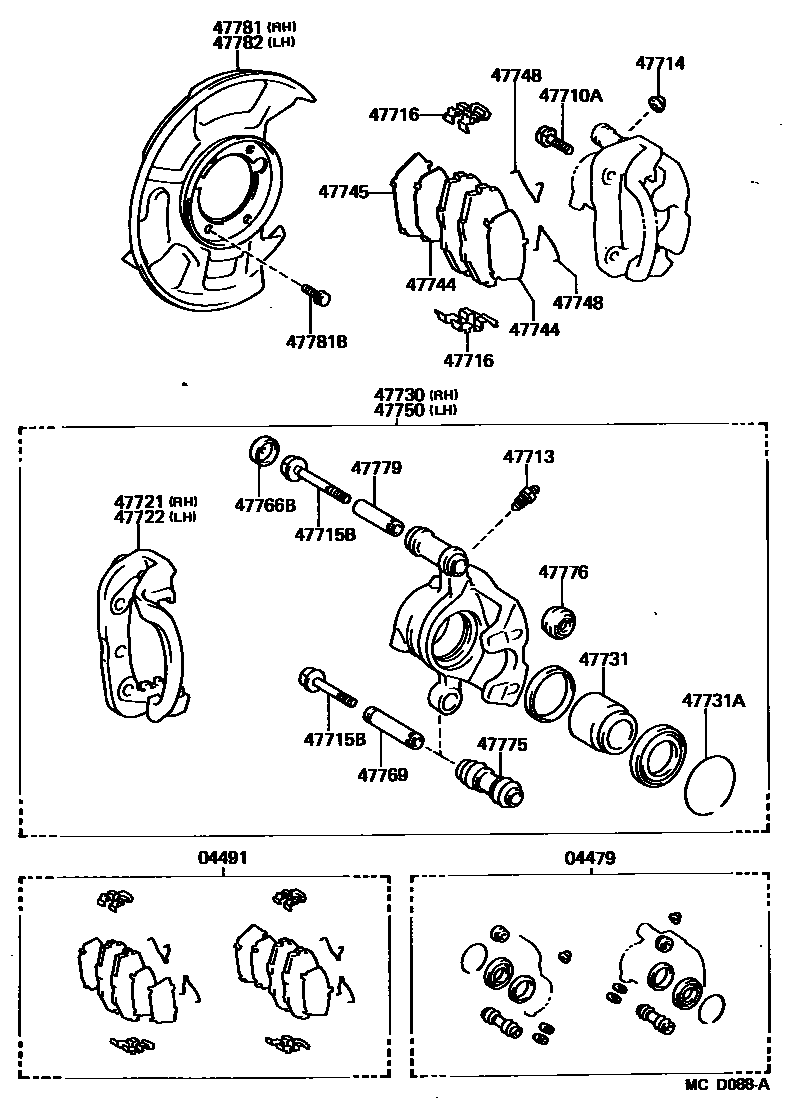

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iMA70198601-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-14200iMA70..ARL,GEN,SA198601-198706

sub04491-14201

main04491-14201iMA70..ARL,GEN,SA198706-198808

sub04465-14360

main04491-14210iMA70..EUR,GCC198601-198808

sub04491-14230

main04491-14230iMA70..EUR198801-198808

DENMARK OR SWITZERLAND SPEC

sub04465-14100

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iMA70198601-198808

*12-1.25PX31-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMA70198601-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMA70198601-198808

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141iMA70198601-198808

UPR

main90119-10403iMA70198601-198808

LWR

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14120iMA70198601-198808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14110iMA70198601-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14110iMA70198601-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14200iMA70198601-198808

47731PISTON, FRONT DISC BRAKE

main47731-28020iMA70198601-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iMA70198601-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14100iMA70198601-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14030iMA70198601-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070iMA70198601-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14220iMA70198601-198808

47766BCAP, CYLINDER SLIDE PIN

main47766-14010iMA70198601-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iMA70198601-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28010iMA70198601-198602

sub47775-28020

main47775-28020iMA70198602-198808

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14020iMA70198601-198703

main47776-20010iMA70198703-198808

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020iMA70198601-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iMA70..ARL,GEN,SA198601-198808

main47781-14120iMA70..EUR,GCC198601-198808

47781BBOLT(FOR DUST COVER SETTING)

main90119-08571iMA70198601-198808

*8-1.25PX18-5.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iMA70..ARL,GEN,SA198601-198808

main47782-14120iMA70..EUR,GCC198601-198808

24 parts on this diagram · 2 diagrams in section
