FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iMA70¥6,200198601-198808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iMA70¥3,090198601-198808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14080iMA70..RHD¥107,000198601-198808

main44250-14090iMA70..LHD..(EUR,GEN)¥107,000198601-198808

main44250-14110iMA70..GCC¥108,000198608-198808

main44250-14130iMA70..LHD..EUR¥125,000198604-198808

W/SPEED SENSING PS

main44250-24050iMA70..RHD..EUG¥126,000198604-198808

W/SPEED SENSING PS

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMA70¥130198601-198808

45460ROD ASSY, TIE, RH

main45460-19225iMA70¥3,830198601-198808

45466CLAMP, TIE ROD END

main45466-22010iMA70¥300198601-198808

45470ROD ASSY, TIE, LH

main45460-19225iMA70¥3,830198601-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-14050iMA70..RHD¥1,630198601-198808

main45515-14080iMA70..LHD¥940198601-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-14060iMA70..LHD¥1,810198601-198808

main45515-14070iMA70..RHD¥820198601-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-14010iMA70..RHD¥880198601-198808

sub45516-14020¥880

main45517-14030iMA70..LHD¥870198601-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45516-14010iMA70..LHD¥880198601-198808

sub45516-14020¥880

main45517-14030iMA70..RHD¥870198601-198808

9010108265

main90101-08265¥440

9011912027

main90119-12027¥190

9017008125

main90170-08125¥320

9451100800

main94511-00800¥100

9538103020

main95381-03020¥90

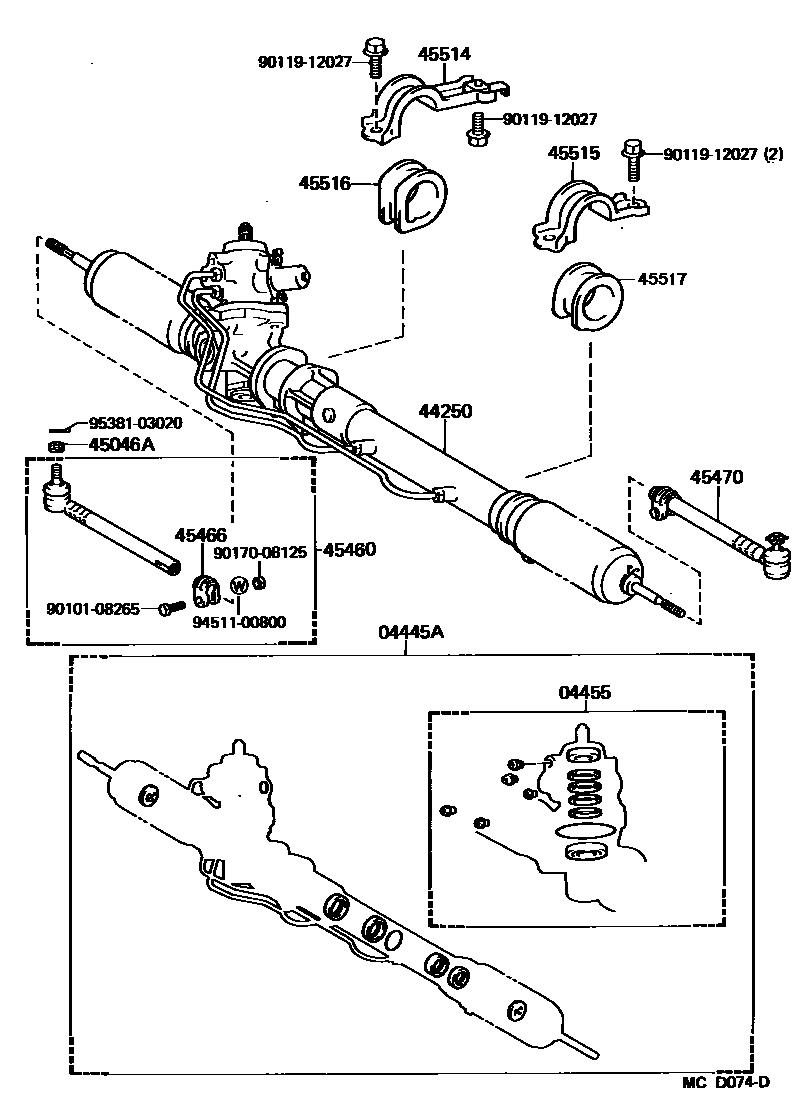

16 parts on this diagram · 4 diagrams in section
