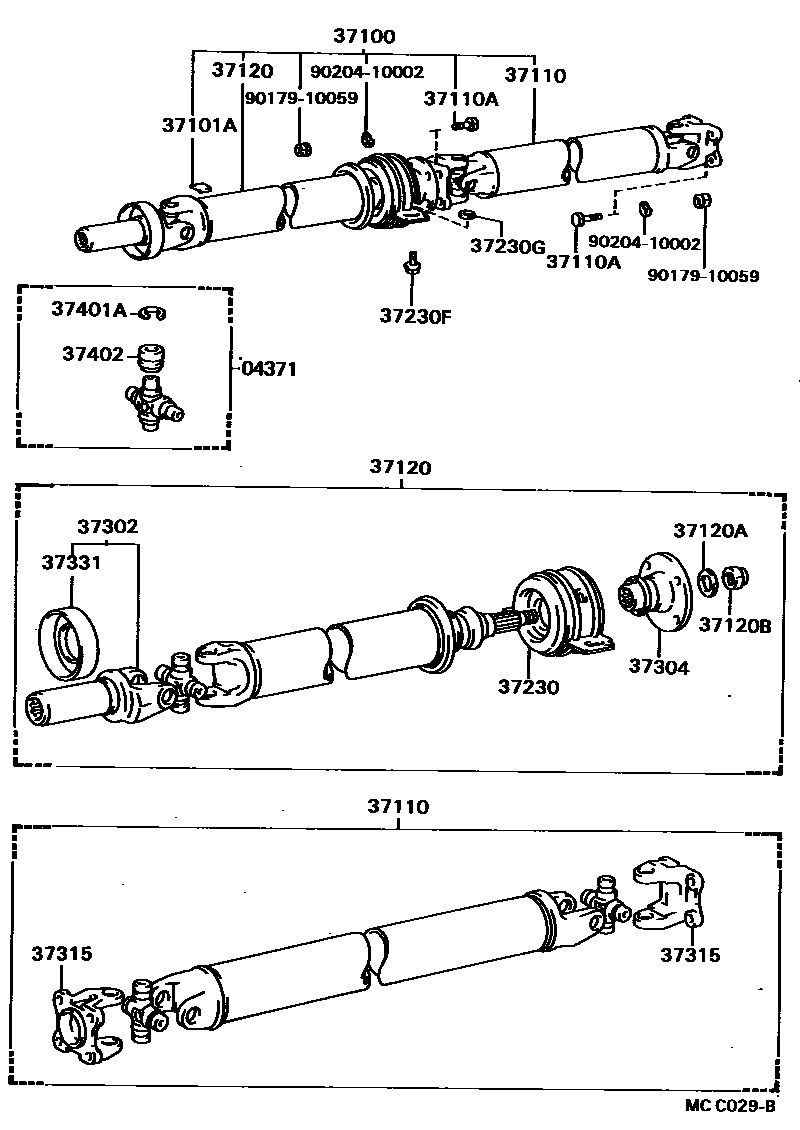

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G
15G,15G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
3G,3G
5G,5G
7G,L=14.4,7G
9G,L=18.5,9G
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
OD=33.5,T=4.0,T=4
OD=36.6,T=0.8,T=0.8
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
L=40,L=40
L=33,L=33
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5,T=4.5
T=9.0,T=9.0
T=6.5,T=6.5
T=11.0,T=11.0
T=13.5,T=13.5
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
ID=43
ID=42
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.125,MARK 1,T=2.125
T=2.175,MARK 2,T=2.175
T=2.225,MARK 3,T=2.225
T=2.275,MARK 4,T=2.275
T=2.325,MARK 5,T=2.325
T=2.375,MARK 6,T=2.375
T=2.425,MARK 7,T=2.425
T=2.475,MARK 8,T=2.475
T=1.50,OD=32.4,T=1.50
T=1.55,T=1.55
T=1.60,T=1.60
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017910059
main90179-10059
9020410002
main90204-10002
19 parts on this diagram · 1 diagram in section
