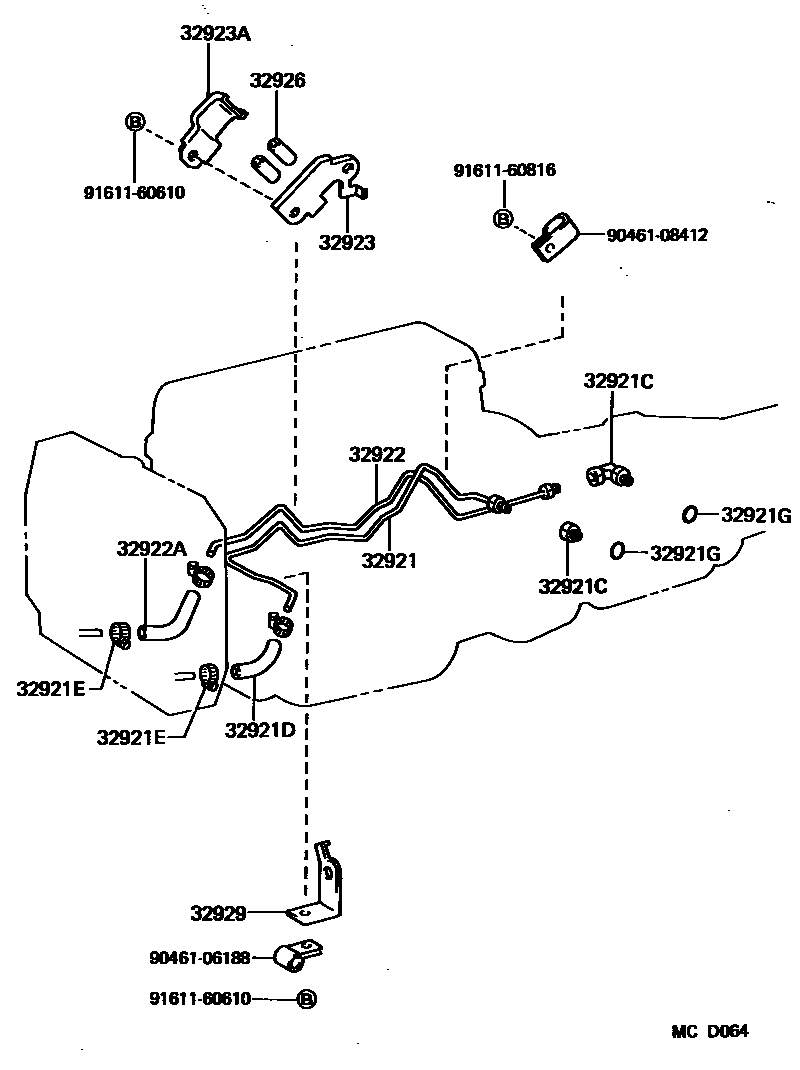

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-14220iMA70..4FC..TWC¥2,100198601-198808

main32921-14230iMA70..4FC..TWT¥1,890198708-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-16020iMA70..4FC¥580198601-198808

INLET

sub90404-16029¥430

main90407-16009iMA70..4FC¥390198601-198808

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-16017iMA70..4FC¥1,060198601-198701

sub90445-16030¥1,280

main90445-17065iMA70..4FC..TWT¥620198708-198808

sub90445-17102¥610

main90445-17066iMA70..4FC..TWC¥860198701-198808

sub90445-17104¥1,020

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iMA70..4FC¥320198601-198701

main90467-16013iMA70..4FC¥300198701-198808

sub90467-16022¥300

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iMA70..4FC¥220198601-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14220iMA70..4FC..TWC¥1,900198601-198808

main32922-14230iMA70..4FC..TWT¥2,860198708-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16022iMA70..4FC¥810198601-198701

main90445-17065iMA70..4FC..TWC¥620198701-198808

sub90445-17102¥610

main90445-17066iMA70..4FC..TWT¥860198708-198808

sub90445-17104¥1,020

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14030iMA70..4FC¥790198601-198808

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-14040iMA70..4FC¥590198601-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iMA70..4FC¥170198601-198808

L=35,ID=10

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-14010iMA70..4FC¥730198601-198808

main32929-24050iMA70..4FC¥670198601-198808

W/COOLER

9046106188

main90461-06188¥130

9046108412

main90461-08412¥240

9161160610

main91611-60610¥120

9161160816

main91611-60816¥230

15 parts on this diagram · 2 diagrams in section
