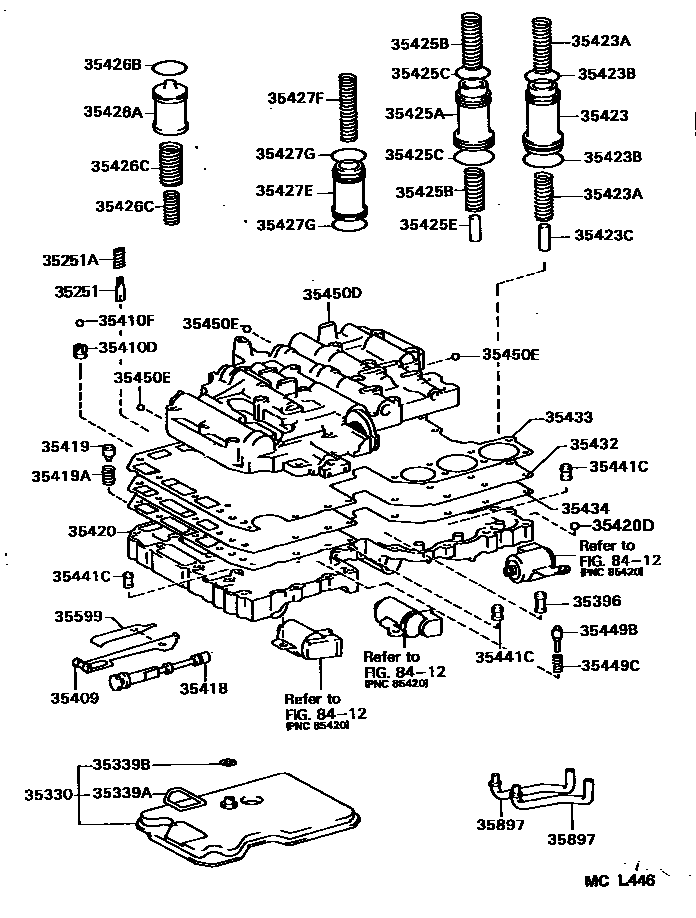

VALVE BODY & OIL STRAINER (ATM)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35330STRAINER ASSY, VALVE BODY OIL
35339AGASKET, OIL STRAINER, NO.1
35339BGASKET, OIL STRAINER, NO.2
35396STRAINER, THROTTLE OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35410DVALVE, CHECK
35410FBALL (FOR CHECK VALVE)
OD=6.35,STEEL
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
OD=5.535,RUBBER,OD=5.54,RUBBER
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
UPR
UPR
LWR
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPR
35423CPIN, STRAIGHT (FOR B-2 ACCUMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
UPR
LWR
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35425EPIN, STRAIGHT (FOR C-2 ACCUMULATOR PISTON)
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
sub90301-24010
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
INLET
OUTLET
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPR
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35441CSTRAINER, SOLENOID OIL
LWR VALVE BODY
UPR VALVE BODY
35449BVALVE, PRESSURE RELIEF
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
35450EBALL (FOR UPPER VALVE BODY)
OD=6.35,RUBBER,OD=6.35,RUBBER
OD=6.35,RUBBER,OD=6.35,RUBBER
0D=5.56,OD=5.56,STEEL
0D=7.14,STEEL,OD=7.14,STEEL
35599COVER, MANUAL DETENT SPRING
35897TUBE, 1ST & REVERSE BRAKE
8412
39 parts on this diagram · 4 diagrams in section
