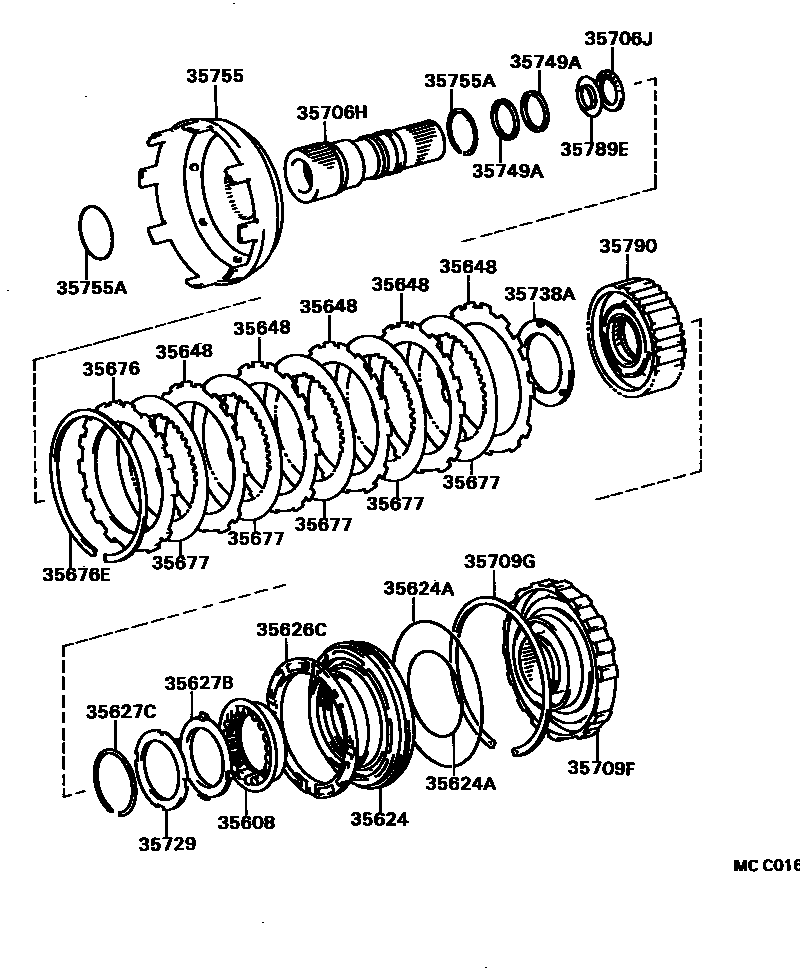

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iMA70..4FC198601-198808

35624PISTON, 2ND BRAKE

main35624-30010iMA70..4FC198601-198808

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iMA70..4FC198601-198808

INNER

main90301-99038iMA70..4FC198601-198808

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iMA70..4FC198601-198808

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iMA70..4FC198601-198808

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iMA70..4FC198601-198808

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020iMA70..4FC198601-198808

T=2.5,T=2.5

main35647-30030iMA70..4FC198601-198808

T=1.8,T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iMA70..4FC198601-198808

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iMA70..4FC198601-198808

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30020iMA70..4FC198601-198808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061iMA70..4FC198601-198808

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iMA70..4FC198601-198808

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iMA70..4FC198601-198808

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iMA70..4FC198601-198808

35729WASHER, 1 WAY CLUTCH THRUST, NO.2

main35729-30010iMA70..4FC198601-198808

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iMA70..4FC198601-198808

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010iMA70..4FC198601-198808

35755DRUM, SUN GEAR INPUT

main35755-30010iMA70..4FC198601-198808

sub35755-50010

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iMA70..4FC198601-198808

ID=46.0,T=1.2,ID=46.0

main90520-49001iMA70..4FC198601-198808

ID=49.0,WD=2.3,ID=49.0

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30150iMA70..4FC198601-198808

35790CLUTCH ASSY, 1 WAY

main35790-30030iMA70..4FC198601-198808

sub35790-50010

21 parts on this diagram · 1 diagram in section
