34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30011i198601-198808

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08065i198601-198808

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033i198601-198808

34103CRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT)

main35789-30080i198601-198808

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090i198601-198808

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30030i198601-198808

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020i198601-198808

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-65005i198601-198808

INNER,ID=65

sub90301-65006

main90301-99036i198601-198808

OUTER,ID=112.5

sub90301-99086

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30010i198601-198808

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99031i198601-198808

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-30010i198601-198808

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001i198601-198808

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020i198601-198808

T=3.6,T=3.6

sub34615-50050

main34615-30030i198601-198808

T=3.5,T=3.5

sub34615-50040

main34615-30040i198601-198808

T=3.4,T=3.4

sub34615-50030

main34615-30050i198601-198808

T=3.3,T=3.3

sub34615-22030

main34615-30060i198601-198808

T=3.2,T=3.2

sub34615-22020

main34615-30070i198601-198808

T=3.1,T=3.1

sub34615-22010

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001i198601-198808

34622PISTON, OVERDRIVE BRAKE

main34622-14010i198708-198808

main34622-30030i198601-198808

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99035i198601-198808

INNER,ID=131.6

sub90301-99087

main90301-99037i198601-198808

OUTER,ID=145.6

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-30030i198601-198808

T=4.0,MARK 1,T=4.0

sub34625-30110

main34625-30040i198601-198808

T=3.9,T=3.9

sub34625-30120

main34625-30050i198601-198808

T=3.8,T=3.8

sub34625-30130

main34625-30060i198601-198808

T=3.7,T=3.7

sub34625-30140

main34625-30070i198601-198808

T=3.6,T=3.6

sub34625-30150

main34625-30080i198601-198808

T=3.5,T=3.5

sub34625-30160

main34625-30090i198601-198808

T=3.3,T=3.3

sub34625-30170

main34625-30100i198708-198808

T=4.0,NO MARK,T=4.0

sub34625-30180

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99027i198601-198808

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-30030i198601-198808

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-30050i198601-198808

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-25005i198601-198808

RR

main90374-28008i198601-198808

FR

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010i198601-198808

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30040i198601-198808

sub35791-50010

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028i198601-198808

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010i198601-198808

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030i198601-198808

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024i198601-198808

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-30030i198601-198808

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-32004i198601-198808

sub90374-35004

34732CRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR)

main35789-30060i198601-198808

FR

main35789-30070i198601-198808

RR

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30030i198601-198808

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020i198601-198808

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-30040i198601-198808

sub35633-14010

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010i198601-198808

T=2.0

35648BPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main34634-30020i198601-198808

sub34634-30021

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010i198601-198808

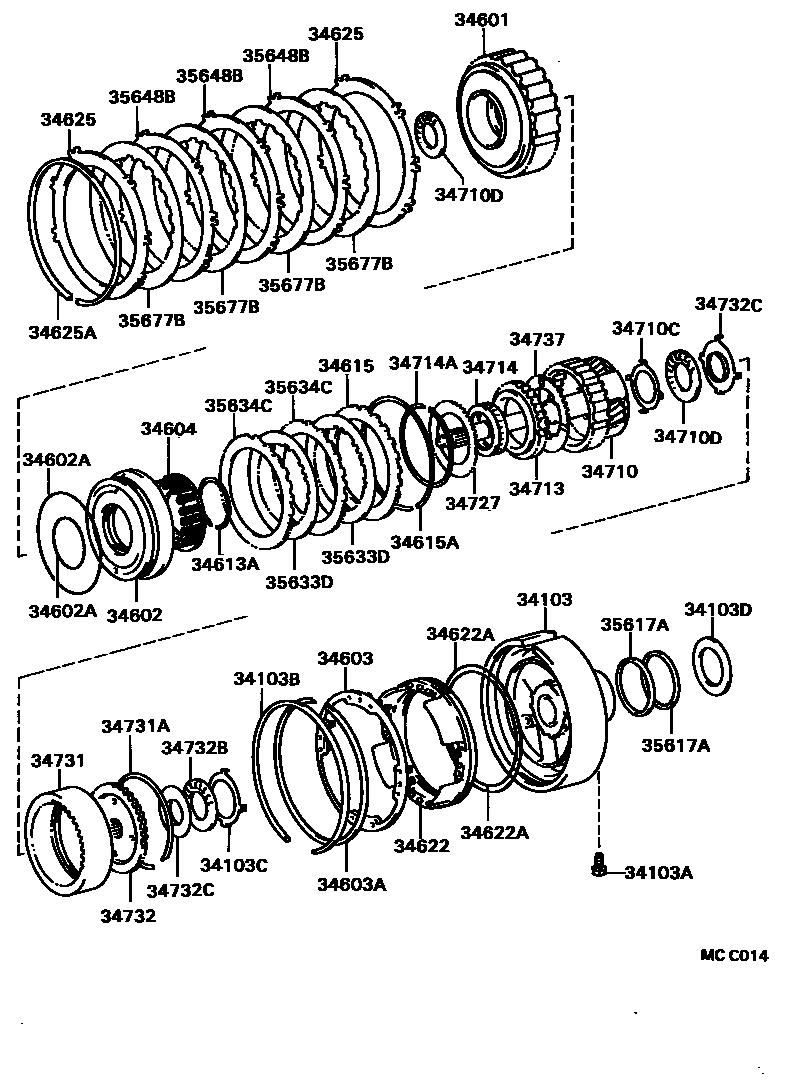

OVERDRIVE GEAR (ATM)
