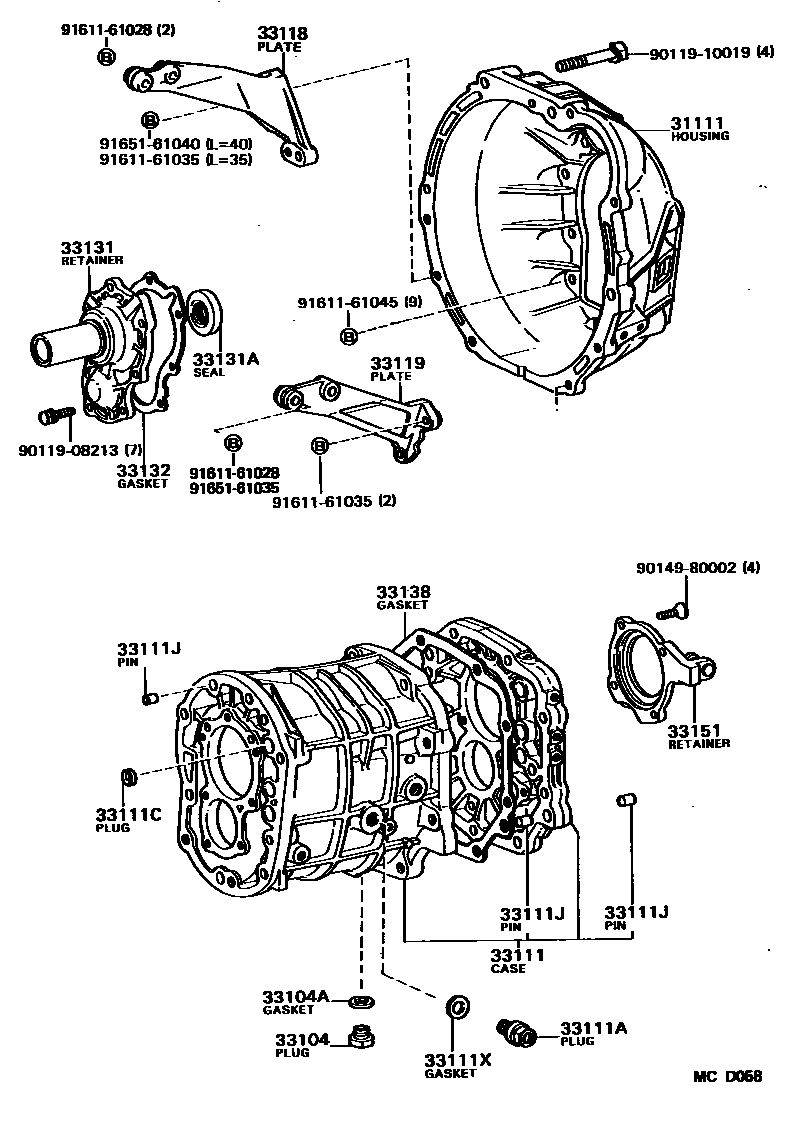

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-14100iMA70..5F..TWT¥34,000198708-198808

main31111-22091iMA70..5F..TWC¥30,000198601-198808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iMA70..5F..TWT¥180198708-198808

main90341-18057iMA70..5F..TWC¥350198601-198808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iMA70..5F¥110198601-198808

33111CASE, MANUAL TRANSMISSION

main33101-22021iMA70..5F..TWC¥45,700198601-198808

sub33101-22031¥46,500

main33101-35030iMA70..5F..TWT¥41,800198708-198808

sub33101-35031¥50,200

sub90341-16014¥310

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iMA70..5F..TWC¥580198601-198808

main90341-18026iMA70..5F..TWT¥400198708-198808

sub90341-18019¥210

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iMA70..5F¥370198601-198808

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iMA70..5F¥130198601-198808

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iMA70..5F..TWC¥110198601-198808

33118PLATE, STIFFENER, RH(MTM)

main33118-14050iMA70..5F¥3,450198608-198808

main33118-30031iMA70..5F¥3,730198601-198608

33119PLATE, STIFFENER, LH(MTM)

main33119-14070iMA70..5F..TWT¥4,500198708-198808

main33119-22030iMA70..5F..TWC¥3,910198601-198808

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iMA70..5F..TWC¥5,100198601-198808

sub33131-22021¥4,810

main33131-35030iMA70..5F..TWT¥5,300198708-198808

sub33131-35031¥4,350

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iMA70..5F..TWC¥220198601-198808

main90311-32012iMA70..5F..TWT¥350198708-198808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iMA70..5F..TWC¥300198601-198808

33138GASKET, INTERMEDIATE PLATE

main33142-22010iMA70..5F..TWC¥340198601-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iMA70..5F..TWC¥4,910198601-198808

main33151-35020iMA70..5F..TWT¥1,400198708-198808

9011908213

main90119-08213¥180

9011910019

main90119-10019¥280

9014980002

main90149-80002¥70

9161161028

main91611-61028¥140

9161161035

main91611-61035¥130

9161161045

main91611-61045¥180

9165161035

main91651-61035¥200

9165161040

main91651-61040¥120

23 parts on this diagram · 2 diagrams in section
