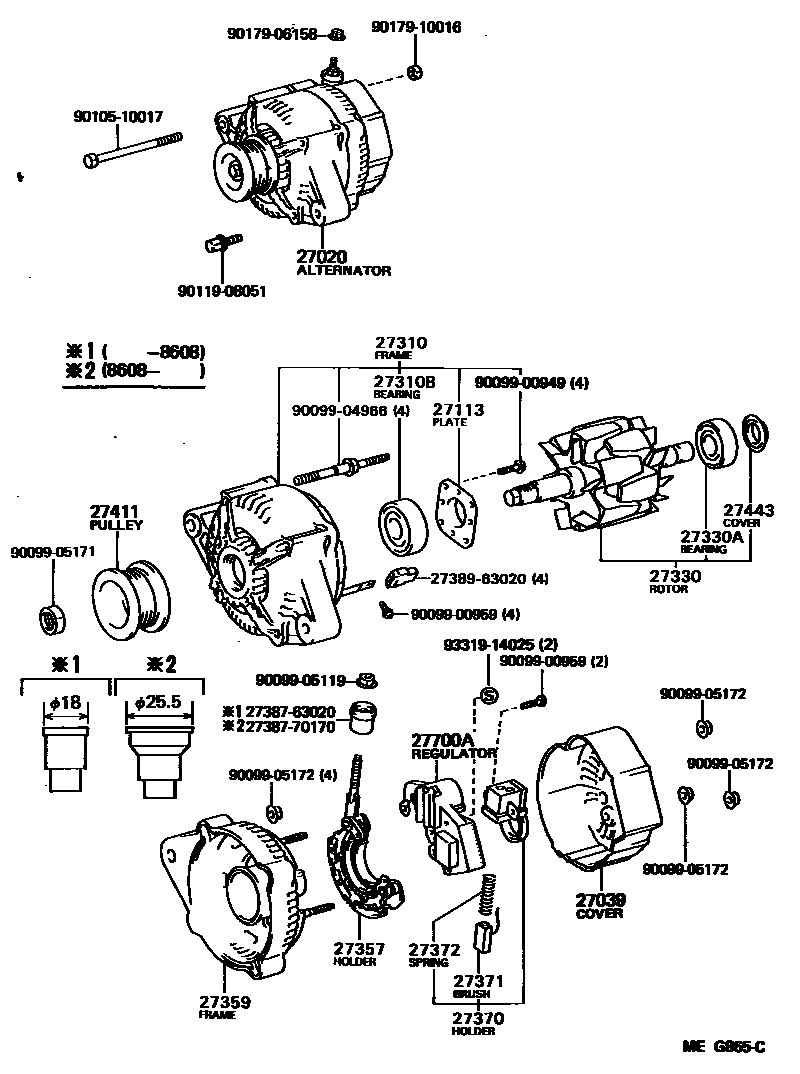

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A,12V 80A
12V 70A,12V 70A
12V 70A,12V 70A
27039COVER, ALTERNATOR REAR END
12V 80A
27113PLATE, BEARING RETAINER, ALTERNATOR
12V 80A
12V 80A
12V 70A
12V 70A
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 70A
12V 70A
12V 80A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
12V 70A
27330ROTOR ASSY, ALTERNATOR
12V 80A
12V 70A
27330ABEARING(FOR ALTERNATOR ROTOR)
12V 70A,80A
27357HOLDER, ALTERNATOR, W/RECTIFIER
12V 80A
12V 70A
27359FRAME, ALTERNATOR RECTIFIER END
12V 70A
12V 80A
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
12V 70A
12V 80A
27443COVER, ALTERNATOR BEARING
12V 70A,80A
27700AREGULATOR ASSY, GENERATOR
12V 80A
2738763020INSULATOR, TERMINAL
main27387-63020
2738770170INSULATOR, TERMINAL
main27387-70170
2738963020INSULATOR, TERMINAL
main27389-63020
9009900949
main90099-00949
9009900959
main90099-00959
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9010510017
main90105-10017
9011908051
main90119-08051
9017906158
main90179-06158
9017910016
main90179-10016
9331914025
main93319-14025
29 parts on this diagram · 2 diagrams in section
