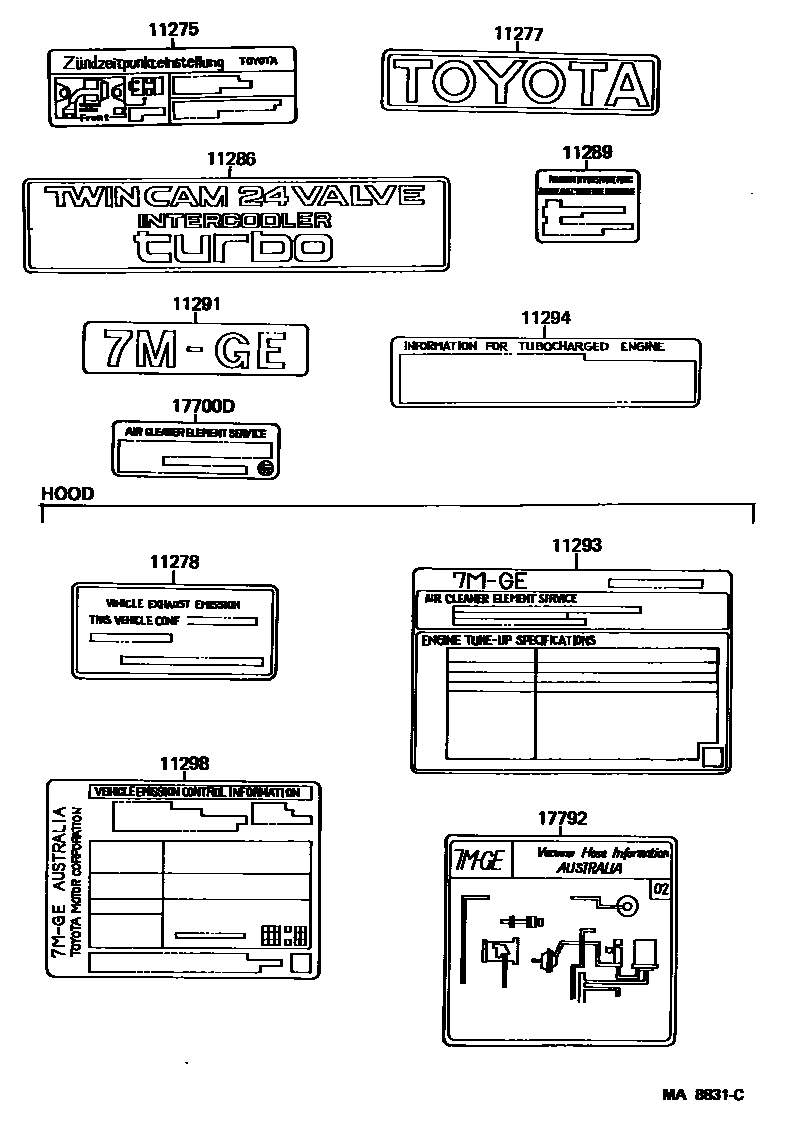

CAUTION PLATE & NAME PLATE (ENGINE)

11275PLATE, IGNITION TIMING ADJUSTING CAUTION

main11275-42010i7MG#..MA70..SDZ198601-198808

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-42010i7MGTE..MA70198708-198808

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-16020i7MGE..MA70..RHD198604-198808

SINGAPORE SPEC

sub11278-42010

11286PLATE, ENGINE SPECIFICATION

main11286-42010i7MGTE..MA70198708-198808

11289PLATE, SPARK PLUG CAUTION

main11289-13040i7MGE..MA70..ARL;7MGE..MA70..SDZ198601-198606

main11289-73020i7MG#..MA70..SDZ;7MGE..MA70..ARL198606-198808

11291PLATE, ENGINE NAME

main11291-42020i7MGTE..MA70198708-198808

main11291-42030i7MGE..MA70198601-198808

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-42090i7MGE..MA70..RHD198604-198808

SINGAPORE SPEC

11294PLATE, ENGINE CAUTION, NO.2

main11294-42010i7MGTE..MA70198708-198808

11298PLATE, EMISSION CONTROL INFORMATION

main11298-42030i7MGE..MA70..ARL198601-198808

main11298-42040i7MGE..MA70..SDZ198601-198808

main11298-42090i7MGTE..MA70198708-198808

17700DPLATE, ENGINE CAUTION

main11293-42090i7MGE..MA70..LHD..EUG;7MGE..MA70..LHD..(GCC,GEN);7MGE..MA70..RHD..(EUR,GEN,SA)198601-198808

main17791-28010i7MG#..MA70..SDZ;7MGE..MA70..ARL198601-198808

sub17791-16040

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-42010i7MGE..MA70..SDZ198601-198808

main17792-42020i7MGE..MA70..ARL198601-198808

main17792-42040i7MGTE..MA70198708-198808

11 parts on this diagram · 1 diagram in section
