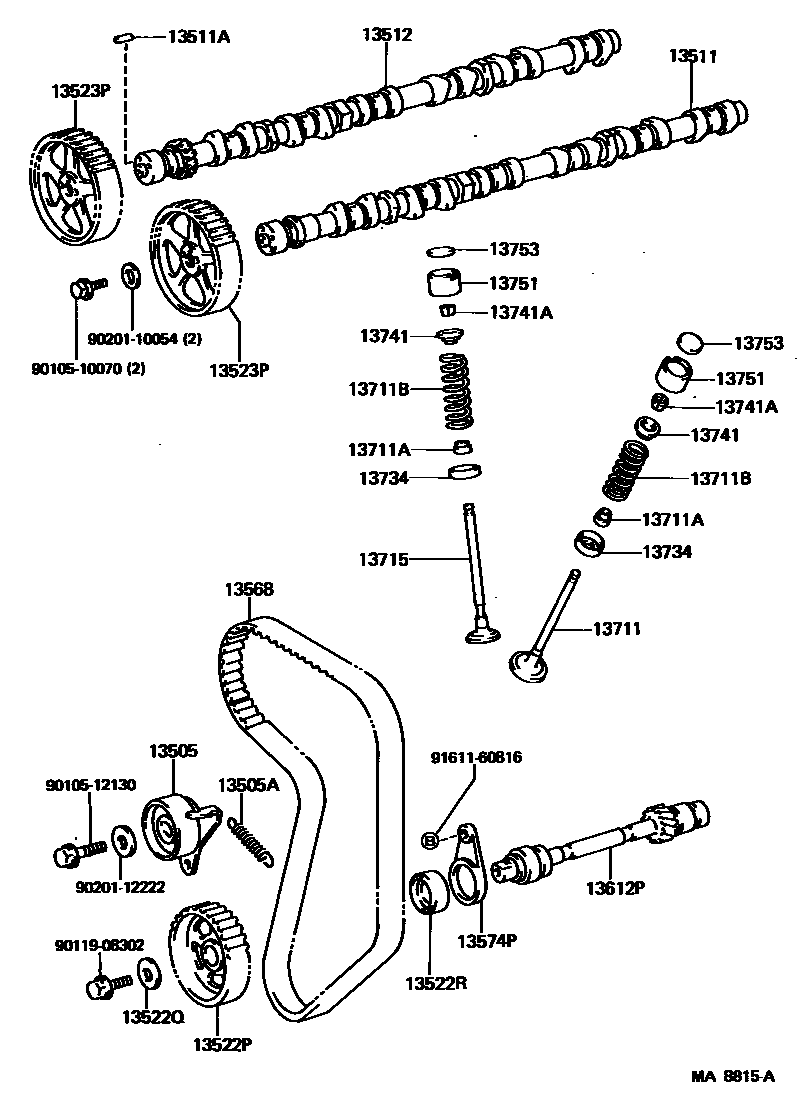

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13522PPULLEY, PUMP DRIVE SHAFT
13522QWASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY)
13522RCOLLAR(FOR PUMP DRIVE SHAFT PULLEY)
13523PPULLEY, CAMSHAFT TIMING
13568BELT, TIMING
sub13568-42011
13574PPLATE, PUMP DRIVE SHAFT THRUST
13612PSHAFT, PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50,T=2.50
T=2.55,T=2.55
T=3.25,T=3.25
T=3.30,T=3.30
9010510070
main90105-10070
9010512130
main90105-12130
9011908302
main90119-08302
9020110054
main90201-10054
9020112222
main90201-12222
9161160816
main91611-60816
27 parts on this diagram · 1 diagram in section
