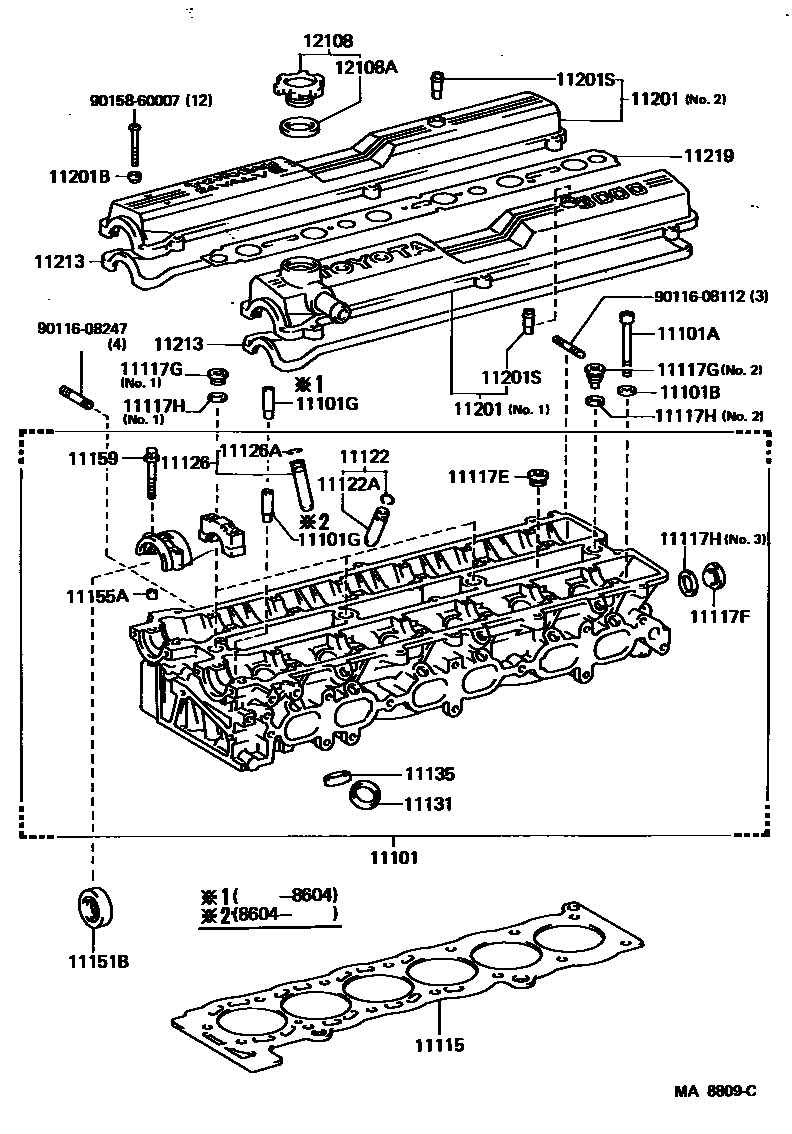

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101GUNION(FOR CYLINDER HEAD)
11115GASKET, CYLINDER HEAD
sub11115-42021
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
NO.1
NO.2
NO.1
11117HGASKET(FOR WATER HOLE)
NO.1,2
NO.3
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
O/S 0.03,O/S 0.03
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
NO.1
NO.1
NO.2
NO.2
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201STUBE, AIR
11213GASKET, CYLINDER HEAD COVER
11219COVER, CYLINDER HEAD, NO.3
sub11219-42020
12108CAP SUB-ASSY, OIL FILLER
sub12180-55010
12108AGASKET(FOR OIL FILLER CAP)
9011608112
main90116-08112
9011608247
main90116-08247
9015860007
main90158-60007
28 parts on this diagram · 1 diagram in section
