STANDARD TOOL

09110JACK ASSY

main09111-14050iMA70..ARL198601-198808

main09111-24030iMA70..EUR,GCC,GEN,SA198601-198808

09113HANDLE, JACK

main09113-24020iMA70198601-198808

sub09113-14030

09120BAG, TOOL

main09120-10030iMA70198601-198808

NO.2

main09120-14010iMA70..SPR198610-198707

NO.3

sub09120-14011

main09120-14011iMA70..SPR198707-198808

NO.3

main09120-14020iMA70198601-198808

NO.1

main09120-14030iMA70..SPR198604-198610

NO.3

sub09120-14010

09130PLIERS

main99913-11500iMA70198601-198808

09135DRIVER, SCREW

main99915-10700iMA70198601-198808

09141SPANNER

main99914-10810iMA70198601-198808

8 X 10,8X10

main99914-11214iMA70198601-198808

12 X 14,12X14

09150WRENCH, HUB NUT BOX

main09150-40010iMA70198601-198808

09155WRENCH, SPARK PLUG

main09155-00100iMA70198601-198808

09168WRENCH, ROOF PANEL

main09168-14010iMA70..SPR198604-198808

09169HANDLE, ROOF PANEL

main09169-14010iMA70..SPR198604-198808

09184STOPPER, WHEEL

main09184-00010iMA70198601-198808

7403

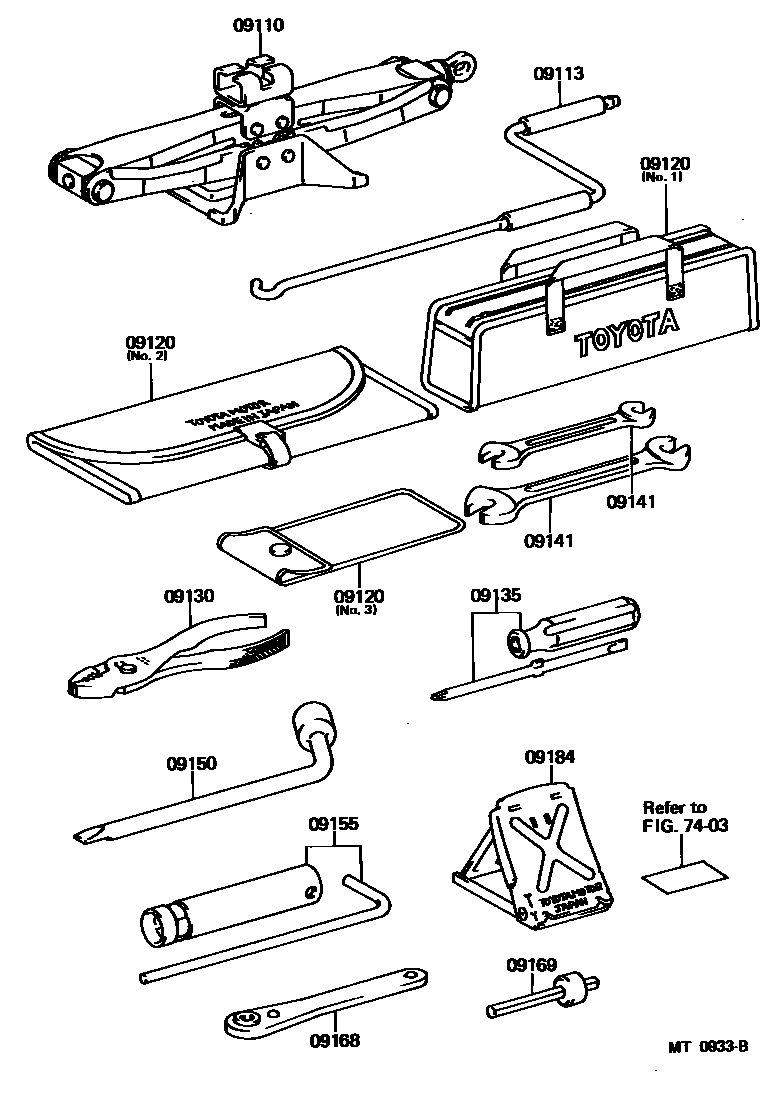

12 parts on this diagram · 1 diagram in section
