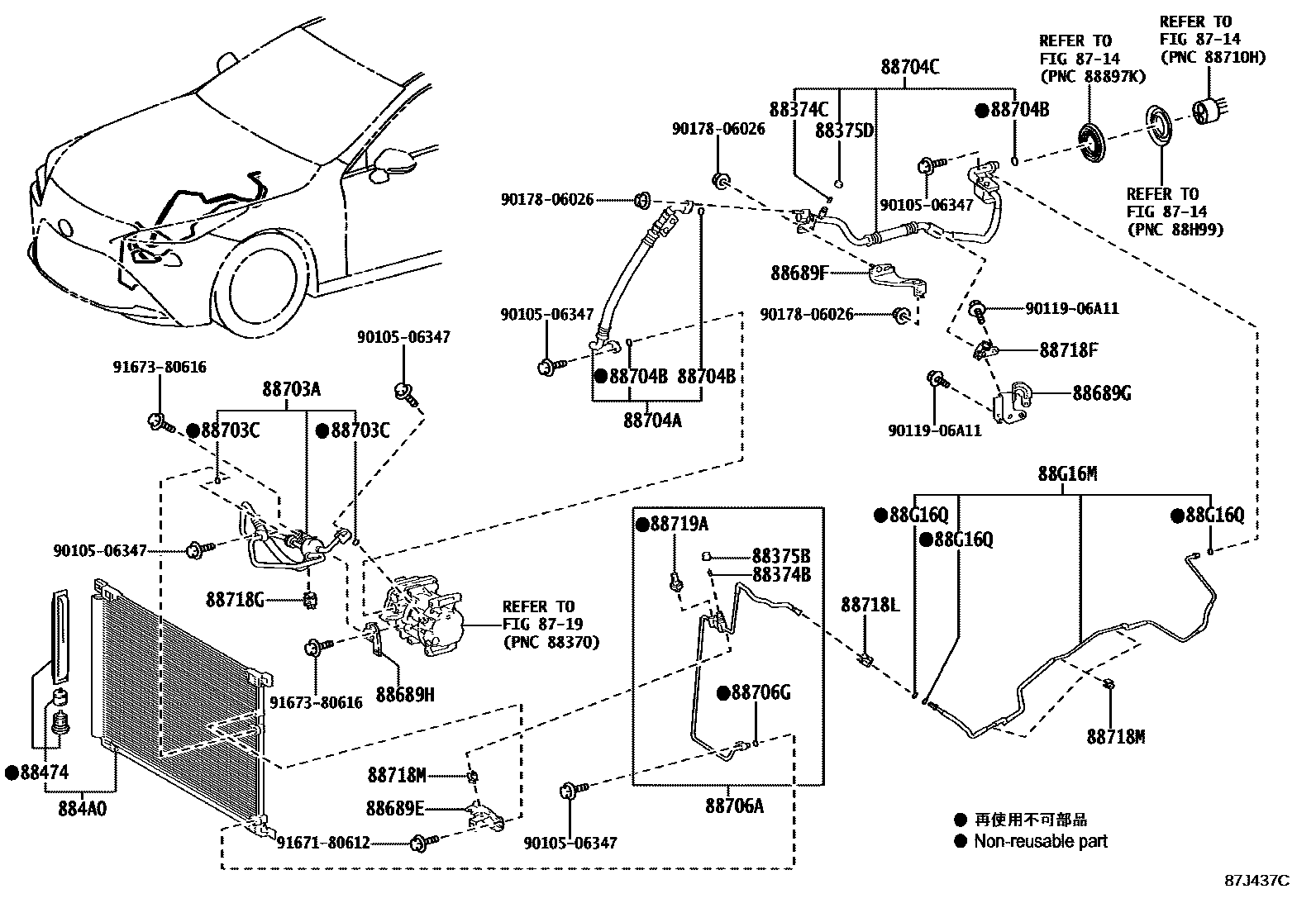

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
COSTA RICA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
AUSTRALIA SPEC
U.A.E. SPEC
88375DCAP, SERVICE VALVE, NO.2
AUSTRALIA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
U.A.E. SPEC
COSTA RICA SPEC
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88689HBRACKET, COOLER, NO.4
88703AHOSE SUB-ASSY, DISCHARGE, NO.1
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704AHOSE SUB-ASSY, SUCTION, A
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88704CHOSE SUB-ASSY, SUCTION, B
AUSTRALIA SPEC
NEW ZEALAND SPEC
88706ATUBE SUB-ASSY, LIQUID, A
COSTA RICA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
AUSTRALIA SPEC
U.A.E. SPEC
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88G16MTUBE, LIQUID, NO.1
88G16QRING, O, NO.1(FOR LIQUID TUBE)
ID=6.7,OD=10.3
9010506347
9011906A11
9017806026
9167180612
9167380616
31 parts on this diagram · 2 diagrams in section
