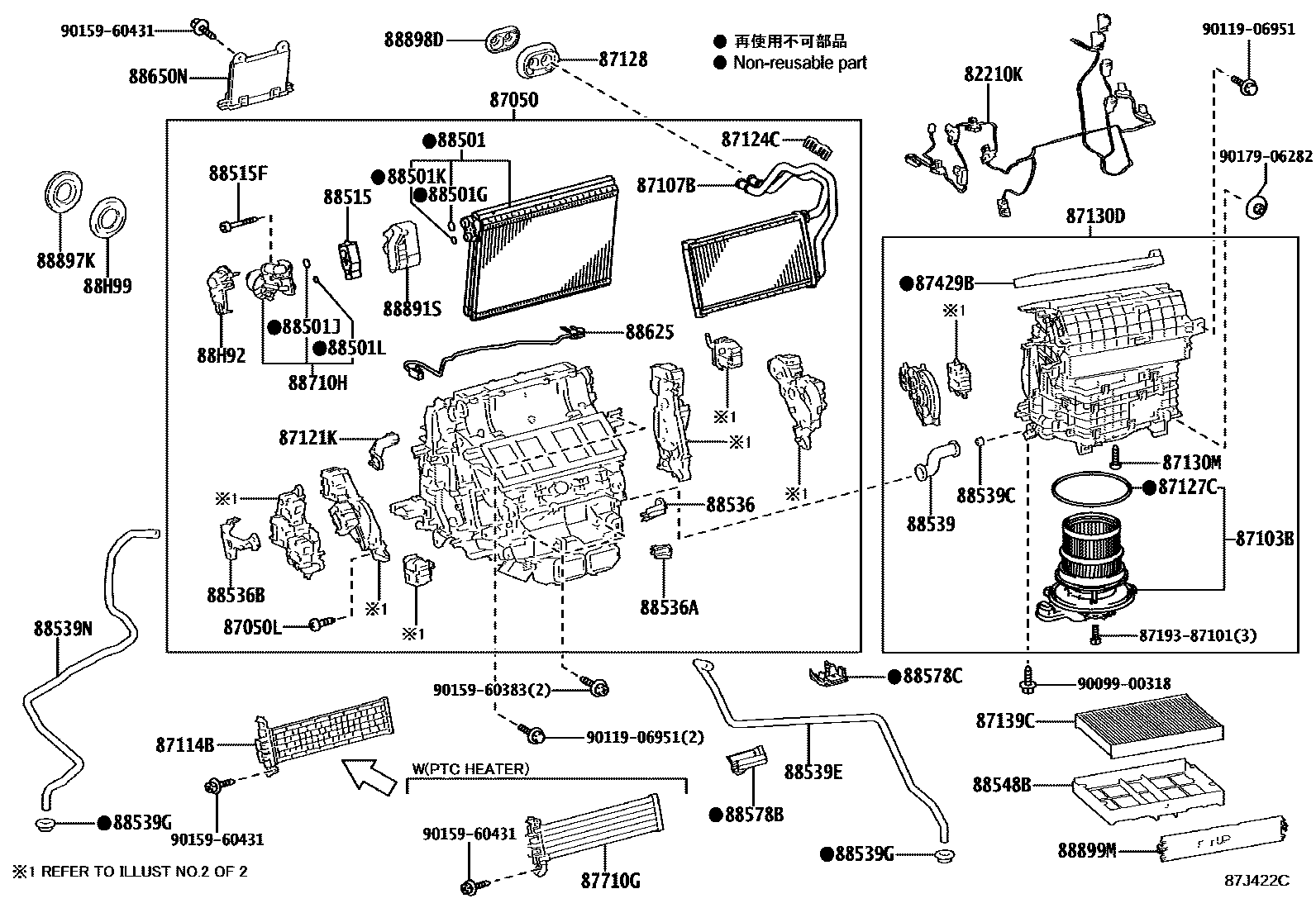

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1DAMPER SERVO 0004 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-50190iJPD20..RHD202312-202411

main82212-50210iJPD20..LHD202412

main82212-30070iJPD20..RHD..H202011-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main82212-62010iJPD20..LHD..H202212-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main82212-62020iJPD20..RHD..H202312-202411

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main82212-62030iJPD20..LHD..H202412

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-62050iJPD20..RHD202011-202312

main87050-62060iJPD20..LHD202312-202411

main87050-62070iJPD20..B202312-202411

AUSTRALIA SPEC

main87050-62080iJPD20..LHD..H202412

U.A.E. SPEC

main87050-62090iJPD20..RHD..H202011-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main87050-62100iJPD20..LHD..H202212-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main87050-62120iJPD20..RHD..H202412

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

main87050-62130iJPD20..LHD..H202312-202411

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90099-00968×23iJPD20..LHD202412

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50180iJPD20..LHD202412

main87103-50190iJPD20..RHD202412

87107BUNIT SUB-ASSY, HEATER RADIATOR

main87107-62030iJPD20..RHD202312-202411

main87107-62040iJPD20..LHD202412

87114BCOVER, HEATER

main87114-30010iJPD20202412

87121KBRACKET, HEATER

main87121-11030iJPD20..LHD202412

main87121-11040iJPD20..RHD202412

87124CCLAMP, HEATER

main87124-33070iJPD20202412

87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1

main87127-11010iJPD20202011-202312

87128GROMMET, HEATER

main87128-28020iJPD20202312-202411

87130DBLOWER ASSY

main87130-50180iJPD20..LHD202412

main87130-50190iJPD20..RHD202412

87130MSCREW(FOR BLOWER)

main90099-00968iJPD20..LHD202011-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)

87139CFILTER, CLEAN AIR

main87139-50110iJPD20202011-202312

DEODORANT FILTER

87429BPACKING, COOLER UNIT, NO.1

main87429-53010iJPD20202312-202411

87710GQUICK HEATER ASSY

main87710-30050iJPD20..H202011-202212

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30A30iJPD20..H,S202312-202411

main88501-50401iJPD20..LHD..H202412

COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iJPD20202312-202411

ID=13.4,OD=18.2

88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)

main90099-14121iJPD20202011-202312

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iJPD20202011-202312

ID=10.8,OD=15.6

88501LO-RING, COOLER EVAPORATOR NO.2(LIQUID)

main90099-14119iJPD20202312-202411

ID=6.7,OD=10.3

88515VALVE, COOLER EXPANSION

main88515-30800iJPD20..LHD..H202312-202411

SAUDI ARABIA SPEC

main88515-50320iJPD20..H,S202412

88515FBOLT(FOR COOLER EXPANSION VALVE)

main88899-44050×2iJPD20202312-202411

88536BRACKET, COOLING UNIT, NO.1

main87241-11010iJPD20..LHD202412

main87241-11020iJPD20..RHD202312-202411

88536ABRACKET, COOLING UNIT, NO.2

main87241-11030iJPD20..LHD202412

main87241-11040iJPD20..RHD202312-202411

88536BBRACKET, COOLING UNIT, NO.3

main87241-11050iJPD20..LHD202011-202312

main87241-11060iJPD20..RHD202011-202312

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-11050iJPD20202011-202312

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-30A00iJPD20202412

88539EHOSE, COOLER UNIT DRAIN, NO.3

main88539-11020iJPD20..LHD202011-202312

main88539-11030iJPD20..RHD202011-202312

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029×2iJPD20..LHD..H202011-202312

COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

88539NHOSE, COOLER UNIT DRAIN, NO.4

main88539-50200iJPD20..RHD202412

main88539-50210iJPD20..LHD202412

88548BCASE, AIR FILTER

main88899-50140iJPD20202412

88578BPACKING, COOLING UNIT, NO.1

main88578-11010iJPD20202312-202411

88578CPACKING, COOLING UNIT, NO.2

main88578-11020iJPD20202412

88625THERMISTOR, COOLER, NO.1

main88620-30290iJPD20..LHD202011-202312

main88620-50020iJPD20..RHD202412

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-62070iJPD20202011-202212

main88650-62083iJPD20202212-202306

main88650-62084iJPD20202306-202312

sub88650-62100

main88650-62090iJPD20202312-202411

main88650-62091iJPD20202412

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-11010iJPD20..LHD202011-202312

main88710-11020iJPD20..RHD202011-202312

88891SCOVER, COOLER, NO.1

main88891-50120iJPD20202412

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iJPD20202011-202312

88898DGROMMET

main87128-28010iJPD20202412

88899MPLATE, COVER(FOR AIR FILTER)

main88899-50150iJPD20202412

88H92COVER, COOLER, NO.2

main88892-50140iJPD20202412

88H99PARTS, COOLING UNIT

main88899-11020iJPD20202412

8719387101

main87193-87101

9009900318

main90099-00318

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

48 parts on this diagram · 4 diagrams in section
