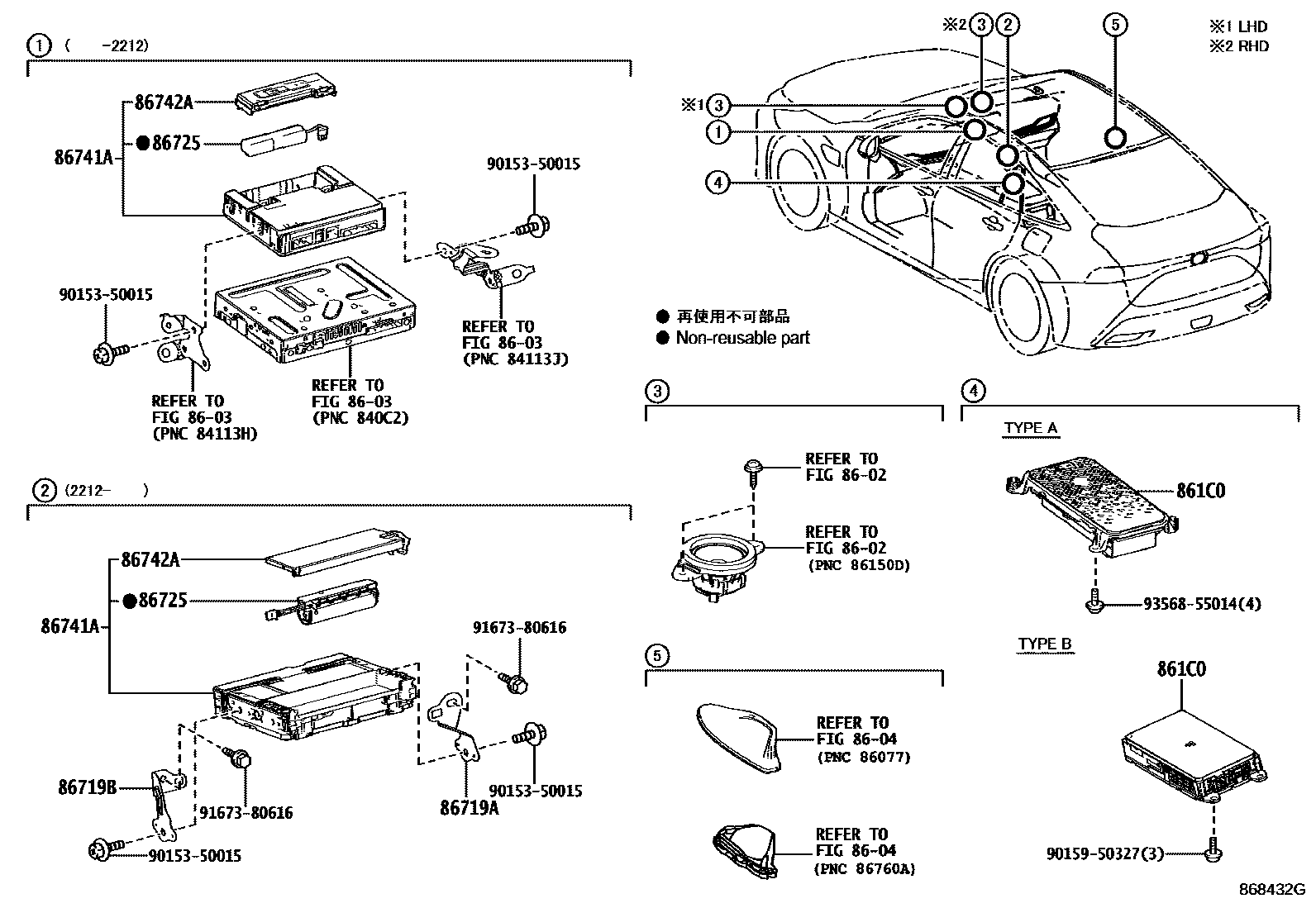

TELEPHONE & MAYDAY
8602
8603
8604
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
86719ABRACKET, TELEPHONE NO.1
COSTA RICA SPEC
NEW ZEALAND SPEC
SAUDI ARABIA SPEC
86719BBRACKET, TELEPHONE NO.2
COSTA RICA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
86725BATTERY, MOBILEPHONE
COSTA RICA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC
COSTA RICA SPEC
SAUDI ARABIA SPEC
86741ATRANSCEIVER, TELEMATICS
NEW ZEALAND SPEC
SAUDI ARABIA SPEC
COSTA RICA SPEC
NEW ZEALAND SPEC
COSTA RICA SPEC
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
NEW ZEALAND SPEC
COSTA RICA SPEC
NEW ZEALAND SPEC
SAUDI ARABIA SPEC
COSTA RICA SPEC
86742ACOVER, TRANSCEIVER
COSTA RICA SPEC
NEW ZEALAND SPEC
SAUDI ARABIA SPEC
9015350015
main90153-50015
9015950327
main90159-50327
9167380616
main91673-80616
9356855014
main93568-55014
13 parts on this diagram · 1 diagram in section
