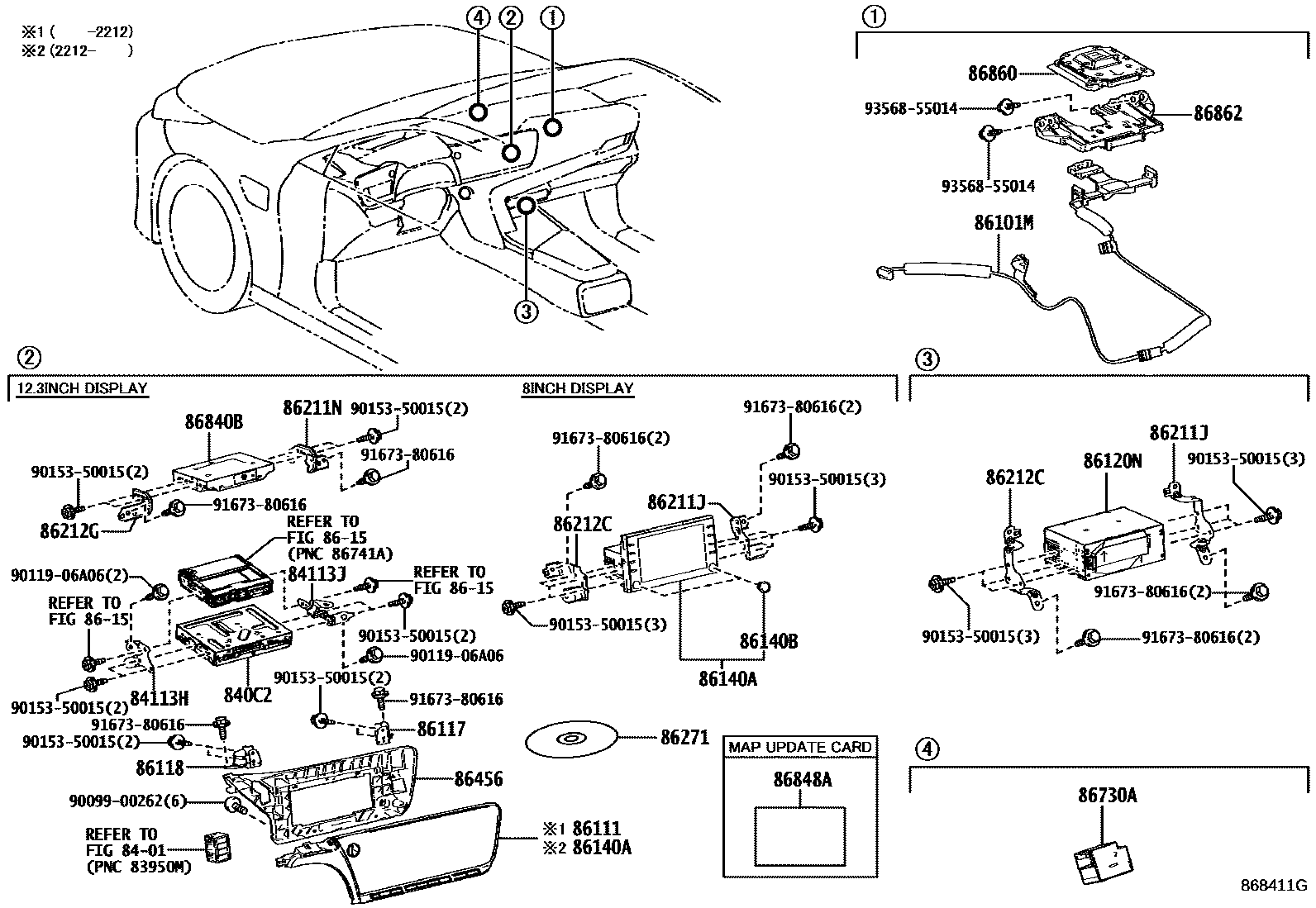

NAVIGATION & FRONT MONITOR DISPLAY
8401
84113HBRACKET, INTEGRATION CONTROL, NO.1
84113JBRACKET, INTEGRATION CONTROL, NO.2
86101MCORD SUB-ASSY, ANTENNA
86111MULTI-DISPLAY
DENSO
DENSO
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
86118BRACKET, MULTI-DISPLAY CONTROLER, B
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC
PANASONIC
PANASONIC
PANASONIC
PANASONIC
PANASONIC
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
8615
86211JBRACKET, RADIO RECEIVER, NO.1
86211NBRACKET, NAVIGATION COMPUTER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86212GBRACKET, NAVIGATION COMPUTER, NO.2
86456COVER, MULTI-MEDIA MODULE
86730AMICROPHONE ASSY, TELEPHONE
86848ACARD, SERIAL NUMBER MAP UPDATE
86862BRACKET, NAVIGATION ANTENNA
MARK = D1
MARK = DE
9009900262
main90099-00262
9011906A06
main90119-06A06
9015350015
main90153-50015
9167380616
main91673-80616
9356855014
main93568-55014
28 parts on this diagram · 2 diagrams in section
