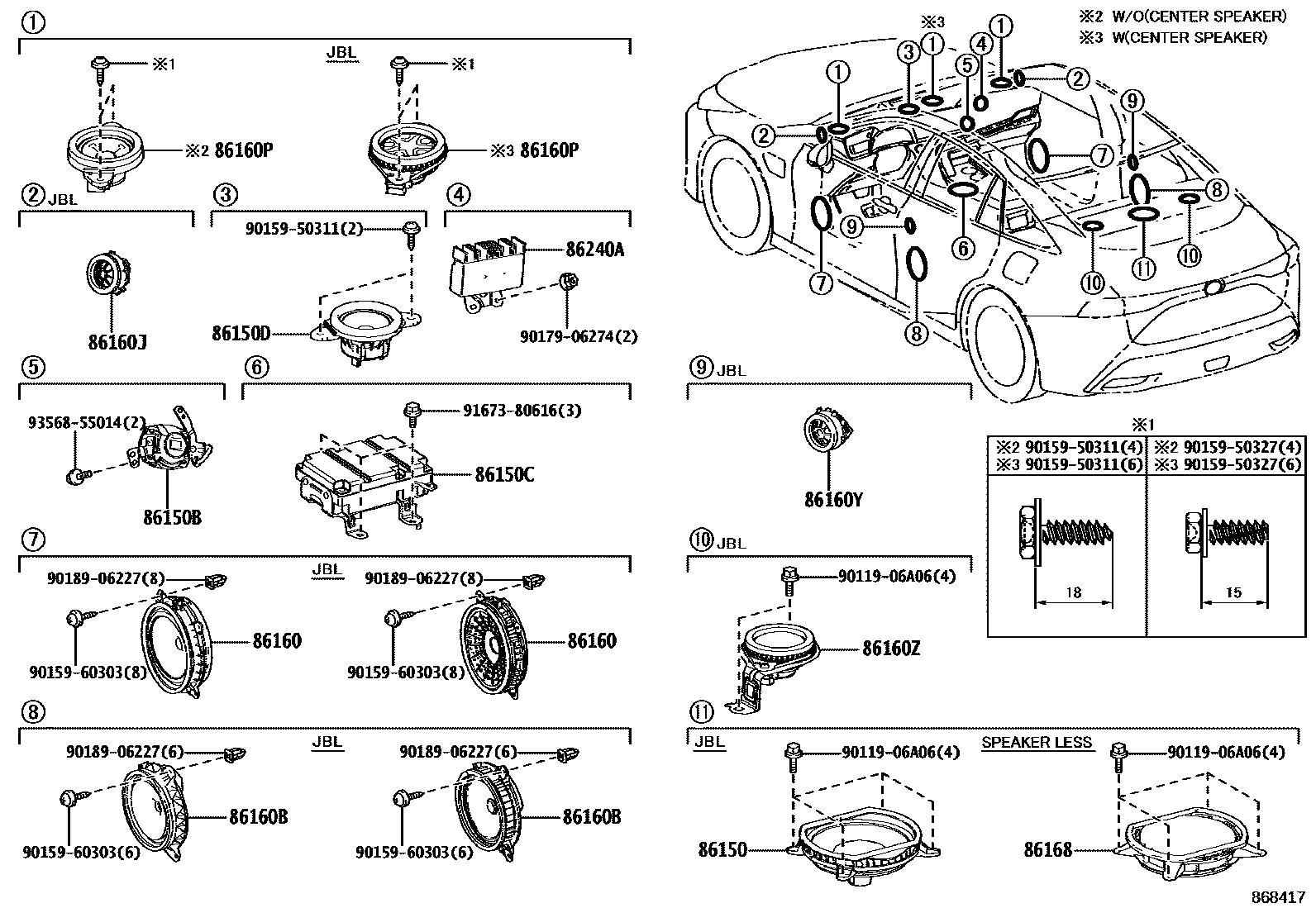

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-62100iJPD20202412

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-62010iJPD20..RHD..H202011-202212

main86150-62030iJPD20..LHD..H202011-202212

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-62020iJPD20..H202011-202212

86150DSPEAKER ASSY, W/BOX, NO.4

main86150-62130iJPD20202312-202411

SAUDI ARABIA SPEC

86160SPEAKER ASSY, FRONT NO.1

main86160-33A10×2iJPD20202312-202411

main86160-33A20×2iJPD20..LHD..H202011-202212

COSTA RICA SPEC

86160BSPEAKER ASSY, REAR

main86160-62020×2iJPD20202011-202312

main86160-30E00×2iJPD20..LHD..H202011-202212

COSTA RICA SPEC

86160JSPEAKER ASSY, FRONT NO.3

main86150-33060×2iJPD20202312-202411

86160PSPEAKER ASSY, FRONT NO.2

main86160-33A30×3iJPD20202312-202411

main86160-47140×2iJPD20..LHD..H202011-202212

COSTA RICA SPEC

86160YSPEAKER ASSY, REAR NO.2

main86150-33060×2iJPD20202011-202312

86160ZSPEAKER ASSY, REAR NO.3

main86150-62060×2iJPD20202011-202312

86168COVER, SPEAKER MOUNTING

main86168-62010iJPD20..LHD..H202011-202212

COSTA RICA SPEC

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-62010iJPD20..H202011-202212

main86240-62050iJPD20..H202212-202312

main86240-62060iJPD20..H202312-202411

9011906A06

main90119-06A06

9015950311

main90159-50311

9015950327

main90159-50327

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

9167380616

main91673-80616

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
