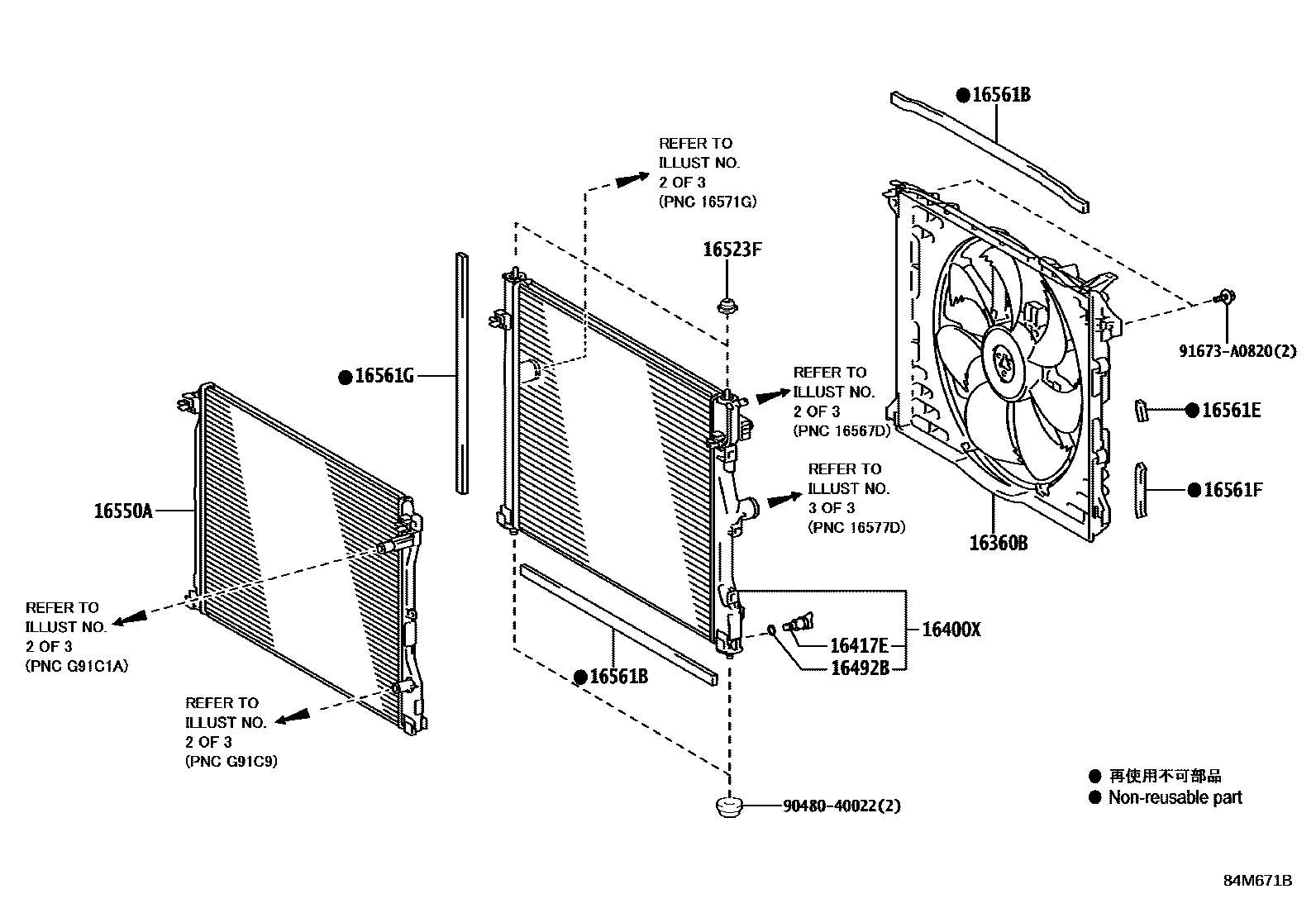

FCEV COOLING

0001 1RADIATOR 0002 1COOLING HOSE(1/2) 0003 1COOLING HOSE(2/2) 0004 1RADIATOR 0005 1COOLING HOSE(1/2) 0006 1COOLING HOSE(2/2)

16360BFAN ASSY, W/MOTOR

main16360-77040i3KM..JPD20202312-202411

16400XRADIATOR ASSY, FC

main16400-77110i3KM..JPD20202312-202411

16417ECOCK, RADIATOR DRAIN

main16417-21280i3KM..JPD20202312-202411

16492BRING, O(FOR RADIATOR DRAIN COCK)

main16492-21050i3KM..JPD20202312-202411

16523FCUSHION, RADIATOR SUPPORT

main16523-38010×2i3KM..JPD20202312-202411

16550ARADIATOR ASSY, EV

main16550-77010i3KM..JPD20202312-202411

16561BSEAL, RADIATOR TO SUPPORT, NO.1

main16561-31170×2i3KM..JPD20202312-202411

16561ESEAL, RADIATOR TO SUPPORT, NO.2

main16561-31180i3KM..JPD20202312-202411

16561FSEAL, RADIATOR TO SUPPORT, NO.3

main16561-31190i3KM..JPD20202312-202411

16561GSEAL, RADIATOR TO SUPPORT, NO.4

main16561-77020i3KM..JPD20202312-202411

9048040022

main90480-40022

91673A0820

main91673-A0820

12 parts on this diagram · 6 diagrams in section
