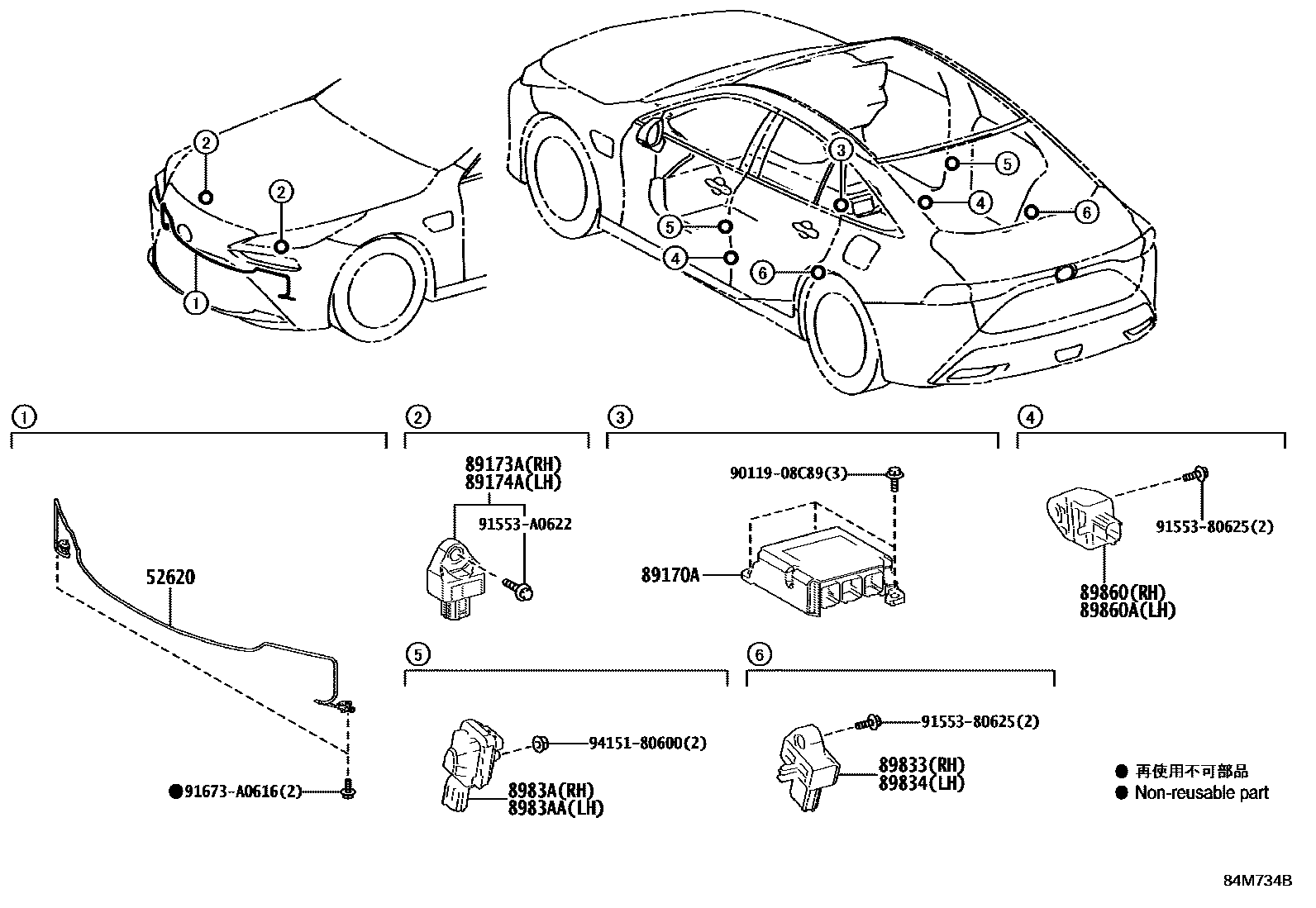

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-62010iJPD20202312-202411

89170ACOMPUTER ASSY, AIRBAG

main89170-62060supersedes 89170-62110iJPD20..LHD..S202011-202312

COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

main89170-62120iJPD20..RHD..H202011-202312

main89170-62210iJPD20202412

*614

main89170-62140supersedes 89170-62070iJPD20..RHD..S202011-202312

AUSTRALIA, NEW ZEALAND SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-59405iJPD20202312-202411

89174ASENSOR, AIRBAG, FRONT LH

main89173-59405iJPD20202312-202411

89833SENSOR, AIRBAG, REAR RH

main89831-52130iJPD20202312-202411

89834SENSOR, AIRBAG, REAR LH

main89831-52130iJPD20202312-202411

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iJPD20202011-202101

main8983A-52011iJPD20202312-202411

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iJPD20202011-202101

main8983A-52011iJPD20202412

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-62020iJPD20202312-202411

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-62020iJPD20202312-202411

9011908C89

main90119-08C89

9155380625

main91553-80625

91553A0622

main91553-A0622

91673A0616

main91673-A0616

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
