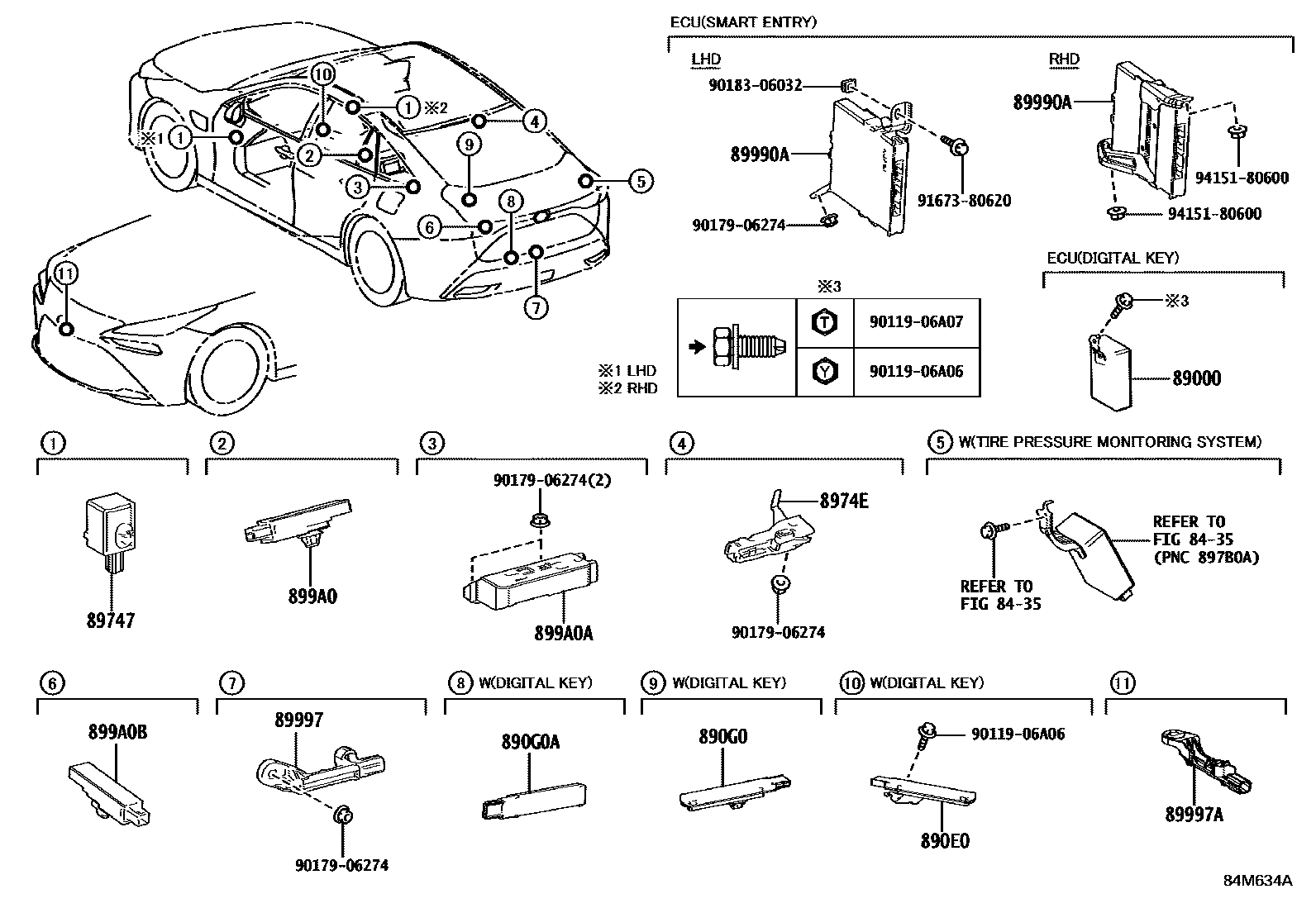

WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-62010iJPD20..H,S202312-202411

DIGITAL KEY-WITH

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-62010iJPD20..H,S202312-202411

DIGITAL KEY-WITH

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010iJPD20..H,S202312-202411

DIGITAL KEY-WITH

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

main890G0-76010iJPD20..H,S202312-202411

DIGITAL KEY-WITH

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iJPD20202312-202411

8974EANTENNA, ROOF HEADER ELECTRICAL KEY

main8974E-62010iJPD20202312-202411

89990ACOMPUTER ASSY, SMART KEY

main899H0-62010iJPD20..LHD202312-202411

main899H0-62020iJPD20..LHD202011-202312

main899H0-62030iJPD20..RHD202011-202212

main899H0-62032iJPD20..RHD202212-202312

main899H0-62070iJPD20..RHD..(B,S)202312-202411

main899H0-62090iJPD20..RHD..H202312-202411

main899H0-62080iJPD20..LHD..H202312-202411

SMART ENTRY-WITH&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

89997ANTENNA, ELECTRICAL KEY

main89997-30100iJPD20202312-202411

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iJPD20..RHD..H202312-202411

ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iJPD20202312-202411

main899A0-47010iJPD20202011-202312

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-62010iJPD20202312-202411

main899A0-62020iJPD20202011-202312

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iJPD20202312-202411

main899A0-47010iJPD20202011-202312

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9017906274

main90179-06274

9018306032

main90183-06032

9167380620

main91673-80620

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
