SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT 0003 1MOTOR COMPARTMENT RELAY BLOCK0004 1MOTOR COMPARTMENT RELAY BLOCK0005 1MOTOR COMPARTMENT RELAY BLOCK0006 1MOTOR COMPARTMENT RELAY BLOCK0007 1COWL 0008 1COWL 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1CONSOLE BOX 0014 1CONSOLE BOX 0015 1STEERING 0016 1SEAT 0017 1DOOR & ROOF 0018 1FLOOR & LUGGAGE 0019 1FLOOR & LUGGAGE 0020 1RELAY BLOCK(LUGGAGE) 0021 1RELAY BLOCK(LUGGAGE)

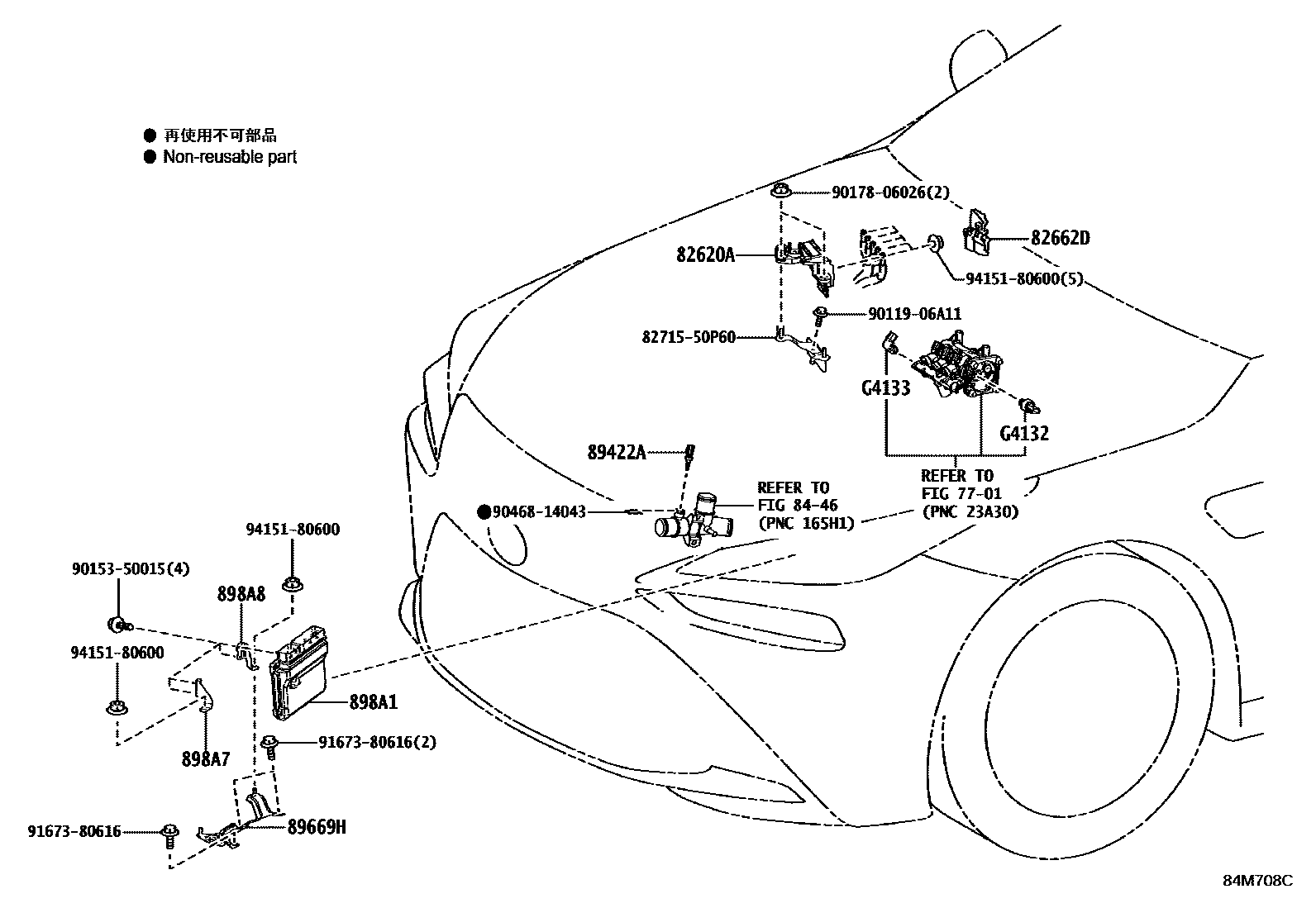

7701

82620ABLOCK ASSY, FUSIBLE LINK

main82620-50200iJPD20..LHD202312-202411

main82620-50210iJPD20..RHD202412

82662DCOVER, RELAY BLOCK, UPPER, NO.4

main82662-50490iJPD20..LHD202312-202411

main82662-50500iJPD20..RHD202412

8446

89422ASENSOR, WATER TEMPERATURE

main89422-47010iJPD20202312-202411

89669HBRACKET, FC CONTROL COMPUTER, NO.3

main89669-30180iJPD20202011-202312

898A1COMPUTER, FC CONTROL

main898A1-62030iJPD20202011-202312

main898A1-62070iJPD20202312-202411

898A7BRACKET, FC CONTROL COMPUTER, NO.1

main898A7-62010iJPD20202312-202411

898A8BRACKET, FC CONTROL COMPUTER, NO.2

main898A8-62010iJPD20202312-202411

G4132SENSOR, HYDROGEN PRIMARY PRESSURE

mainG413262020iJPD20202312-202411

G4133SENSOR, HYDROGEN SECONDARY PRESSURE

mainG413362020iJPD20202312-202411

8271550P60BRACKET,WIRING HARNESS CLAMP

main82715-50P60

9011906A11

main90119-06A11

9015350015

main90153-50015

9017806026

main90178-06026

9046814043

main90468-14043

9167380616

main91673-80616

9415180600

main94151-80600

18 parts on this diagram · 21 diagrams in section
