METER

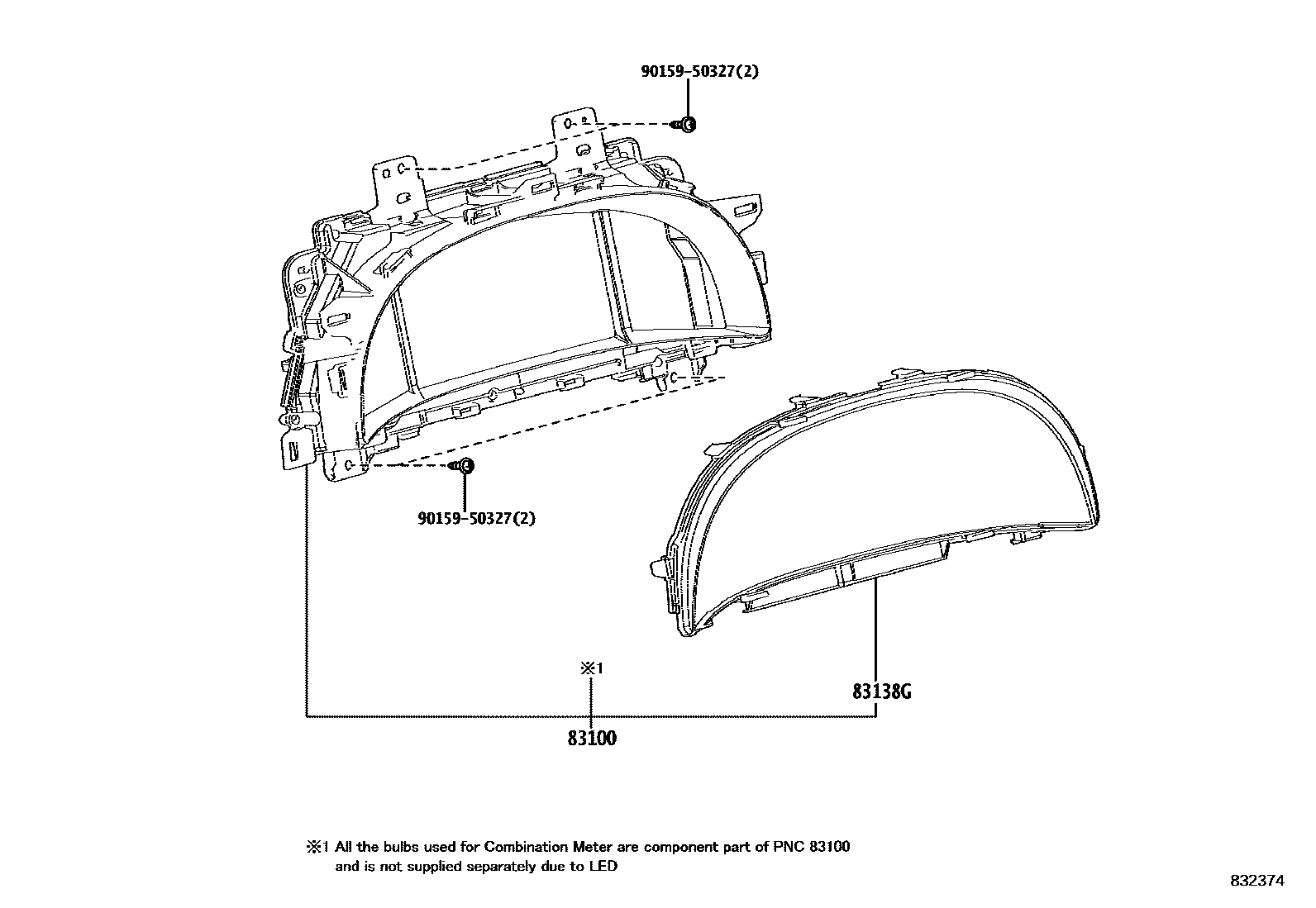

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY

83100METER ASSY, COMBINATION

main83800-62150iJPD20..H202011-202108

YAZAKI

main83800-62151iJPD20..H202108-202212

YAZAKI

main83800-62160iJPD20..S202011-202108

YAZAKI,COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

main83800-62161iJPD20..S202108-202212

YAZAKI,COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

main83800-62360iJPD20..H202212-202312

YAZAKI

main83800-62370iJPD20..S202212-202312

YAZAKI,COSTA RICA SPEC&FRONT AIR CONDITIONER-DUAL

main83800-62380iJPD20202312-202402

YAZAKI,*614

main83800-62381iJPD20202402-202411

YAZAKI,*614

main83800-62420iJPD20202412

YAZAKI,*614

83138GGLASS, COMBINATION METER

main83852-62120iJPD20202011-202312

main83852-62380iJPD20202312-202411

9015950327

main90159-50327

3 parts on this diagram · 2 diagrams in section
