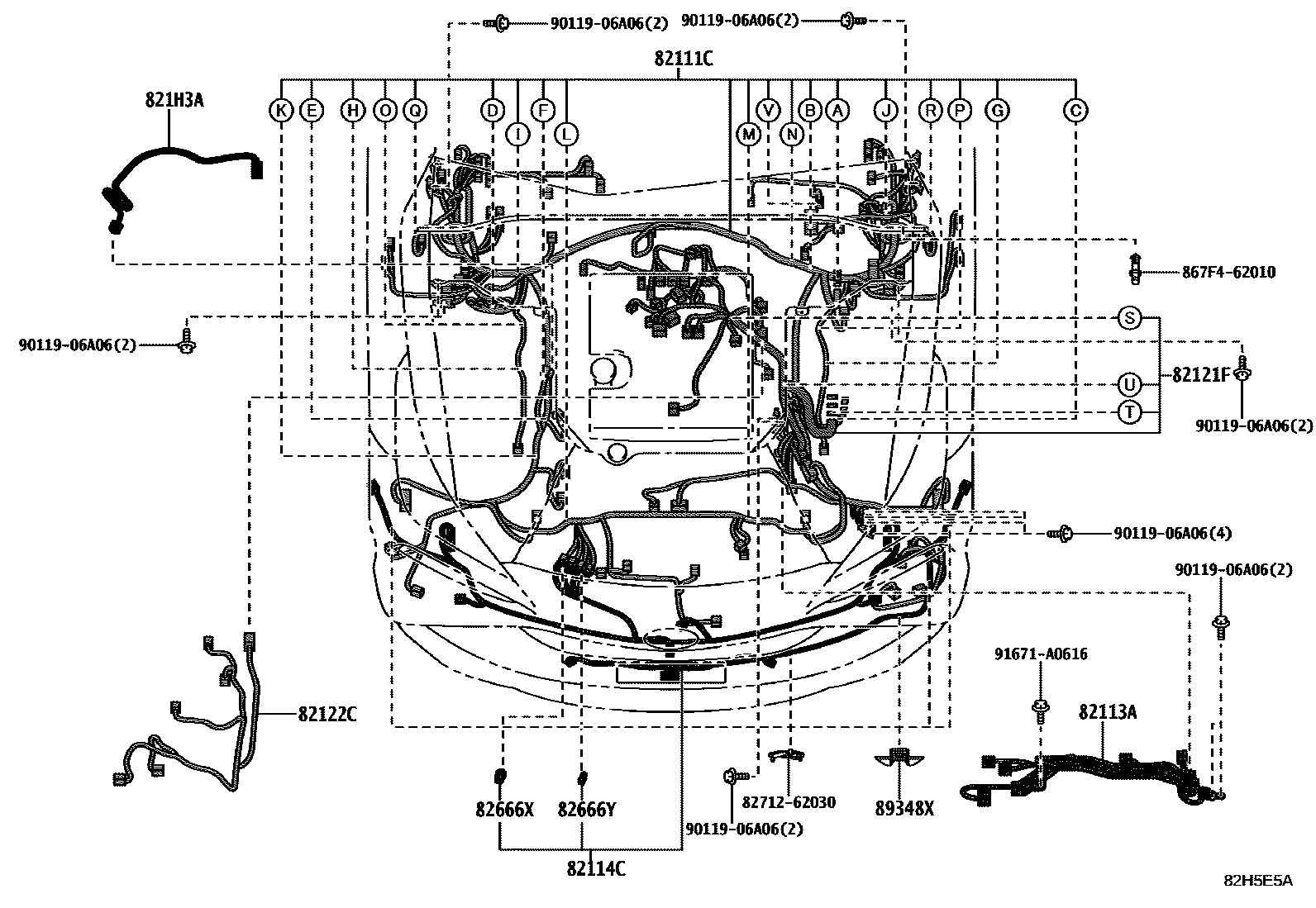

WIRING & CLAMP
82111CWIRE, FRONT COMPARTMENT, MAIN
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
NEW ZEALAND SPEC
COSTA RICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA
SAUDI ARABIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *FLA & *PVM
SAUDI ARABIA SPEC
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
82113AWIRE, FRONT COMPARTMENT, NO.3
82114CWIRE, FRONT COMPARTMENT, NO.4
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
INTELIGENT PARKING ASSIST-WITH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
COSTA RICA SPEC&CLEARANCE & BACK SONAR-WITH(*PKSB)
COSTA RICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA&CLEARANCE & BACK SONAR-WITH(*PKSB)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA
INTELIGENT PARKING ASSIST-WITH
ADVANCED PARK-WITH
82121FWIRE, STACK
821H3AWIRE, BATTERY PACK, NO.1
82666XHOLDER, CONNECTOR NO.17
82666YHOLDER, CONNECTOR NO.18
89348XCLIP, ULTRASONIC SENSOR, FRONT
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
8271262030CLAMP, WIRING HARNESS
main82712-62030
867F462010JOINT, WASHER HOSE
main867F4-62010
9011906A06
main90119-06A06
91671A0616
main91671-A0616
13 parts on this diagram · 19 diagrams in section
