REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iJPD20202312-202411

81497COVER, REAR COMBINATION LAMP, RH

main81497-62020iJPD20202312-202411

81498COVER, REAR COMBINATION LAMP, LH

main81498-62020iJPD20202312-202411

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D20×2iJPD20202312-202411

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-05172×8iJPD20202412

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-62050iJPD20202011-202112

main81551-62051iJPD20202412

81555GCORD, REAR COMBINATION LAMP, RH

main81555-62100iJPD20202412

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-62050iJPD20202011-202112

main81561-62051iJPD20202312-202411

81565DCORD, REAR COMBINATION LAMP, LH

main81555-62100iJPD20202412

81580DLAMP ASSY, REAR, RH

main81580-62040iJPD20202011-202111

main81580-62041iJPD20202412

81584PACKING, REAR LAMP RH

main81582-62030iJPD20202011-202312

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-62040iJPD20202312-202411

81587PROTECTOR, REAR LAMP, RH

main81558-24040×2iJPD20202312-202411

81588PROTECTOR, REAR LAMP, LH

main81558-24040×2iJPD20202312-202411

81590ALAMP ASSY, REAR, LH

main81590-62040iJPD20202011-202111

main81590-62041iJPD20202412

81594BPACKING, REAR LAMP LH

main81592-62030iJPD20202412

81595SOCKET & WIRE, REAR LAMP, LH

main81585-62040iJPD20202312-202411

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

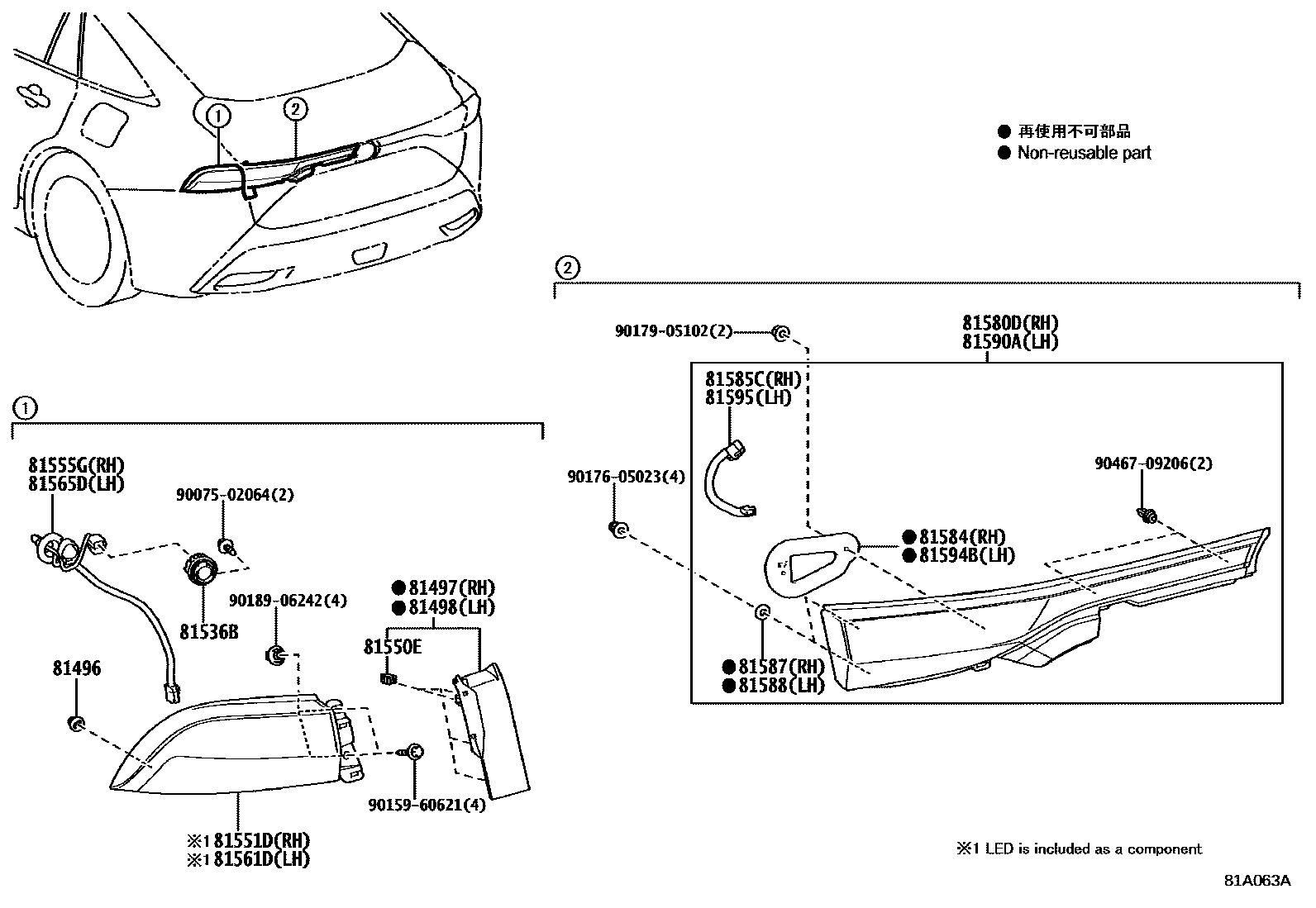

23 parts on this diagram · 1 diagram in section
