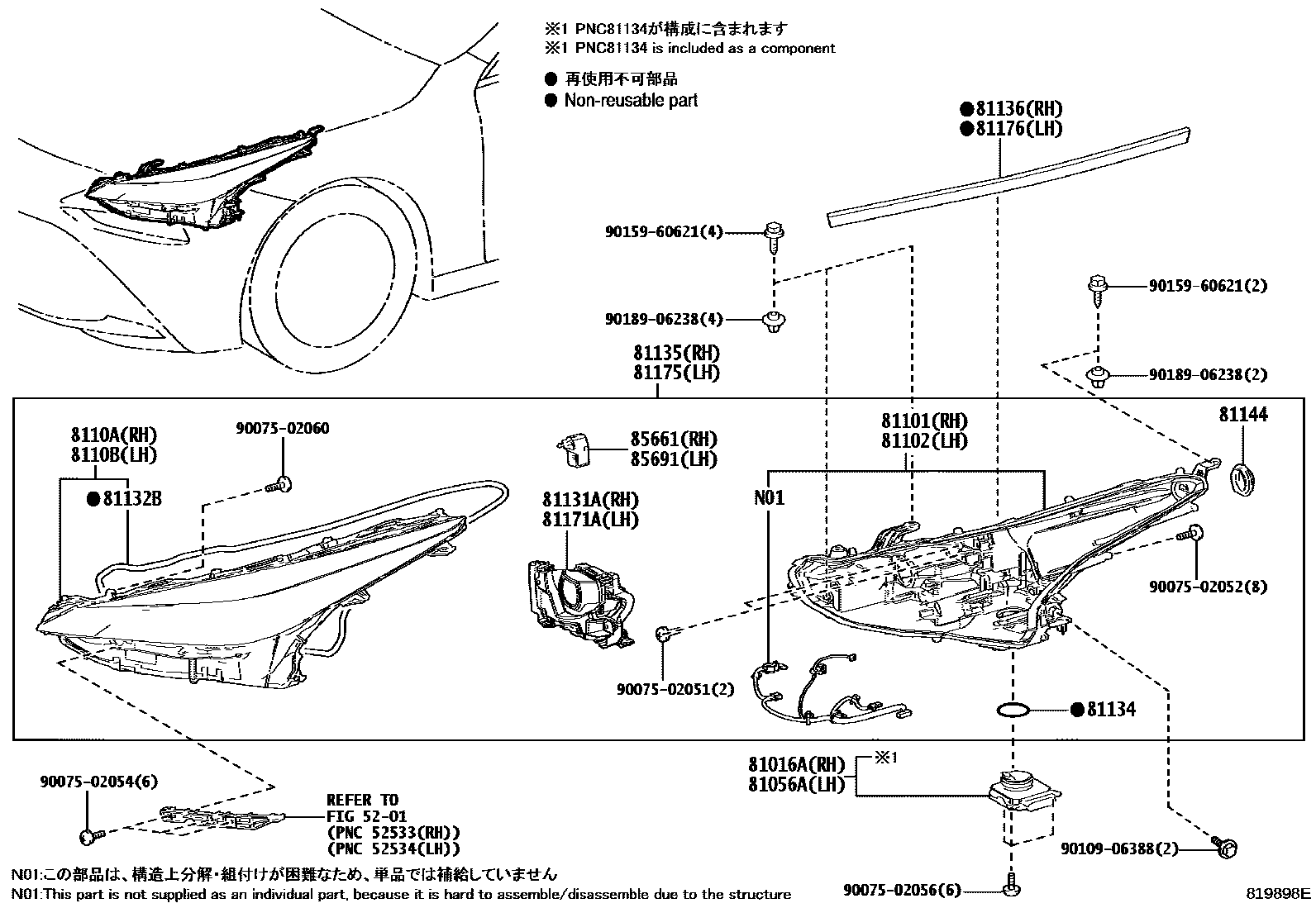

HEADLAMP
5201
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81136PROTECTOR, HEADLAMP, NO.1 RH
81144COVER, HEADLAMP, NO.1
81171AUNIT, HEADLAMP, LH
81176PROTECTOR, HEADLAMP, NO.1 LH
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
26 parts on this diagram · 2 diagrams in section
