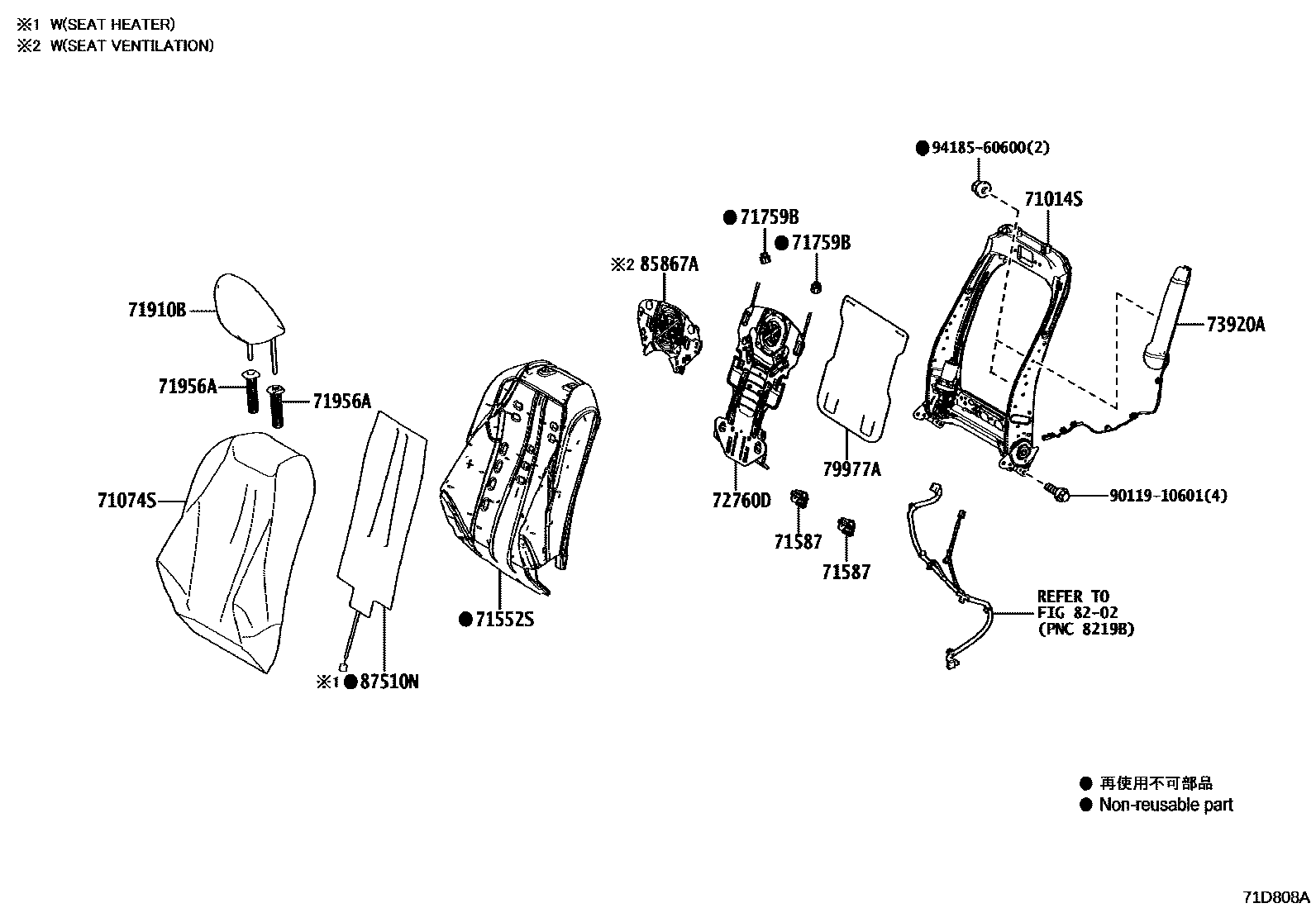

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-62050i202011-202411

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-62030-C0i202011-202212

BLACK,TRIM2#

main71074-62040-C0i202212-202512

BLACK,TRIM2#

main71074-62050-A0i202011-202411

WHITE&WHITE,TRIM0#

main71074-62050-A0i202312-202411

WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#

main71074-62050-C0i202011-202411

BLACK&GRAY,TRIM2#

main71074-62050-C0i202312-202411

WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30B10i202011-202411

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010i202011-202411

71759BHOOK, FRONT SEATBACK

main71759-50040i202011-202411

71910BHEADREST ASSY, FRONT SEAT

main71910-62040-C1i202011-202512

BLACK,TRIM2#

main71910-62040-C1i202412-202512

WITHOUT(COLD AREA SPEC),BLACK,TRIM2#

main71910-62050-A0i202312-202411

WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#

main71910-62050-A0i202011-202411

WHITE&WHITE,TRIM0#

main71910-62050-A0i202312-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#

main71910-62050-A0i202011-202312

SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#

main71910-62050-C0i202312-202411

BLACK&IVORY,TRIM21

main71910-62050-C0i202011-202312

BLACK&IVORY,TRIM20,21

main71910-62050-C1i202011-202411

BLACK&GRAY,TRIM20

main71910-62050-C1i202312-202411

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#

main71910-62050-C1i202312-202411

WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#

main71910-62050-C1i202011-202312

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-47050-C5i202011-202411

W(LOCK),BLACK,TRIM0#,2#

main71930-47050-C5i202011-202512

W(LOCK),BLACK,TRIM2#

main71931-47030-C4i202011-202512

W/O(LOCK),BLACK,TRIM2#

main71931-47030-C4i202011-202411

W/O(LOCK),BLACK,TRIM0#,2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140i202011-202312

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-12090i202011-202411

79977AFELT, SEATBACK

main79977-33030i202011-202312

main79977-33030i202312-202411

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

main79977-33030i202312-202411

SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)

8202

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-30040

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-30300i202312-202411

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

main87530-30300i202312-202411

SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)

main87530-30300i202212-202411

SEAT HEATER-WITH(FRONT SEAT)

main87530-30300i202412-202512

main87530-30300i202212-202312

FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

main87530-30300i202212-202312

SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)

9011910601

main90119-10601

9418560600

main94185-60600

16 parts on this diagram · 8 diagrams in section
