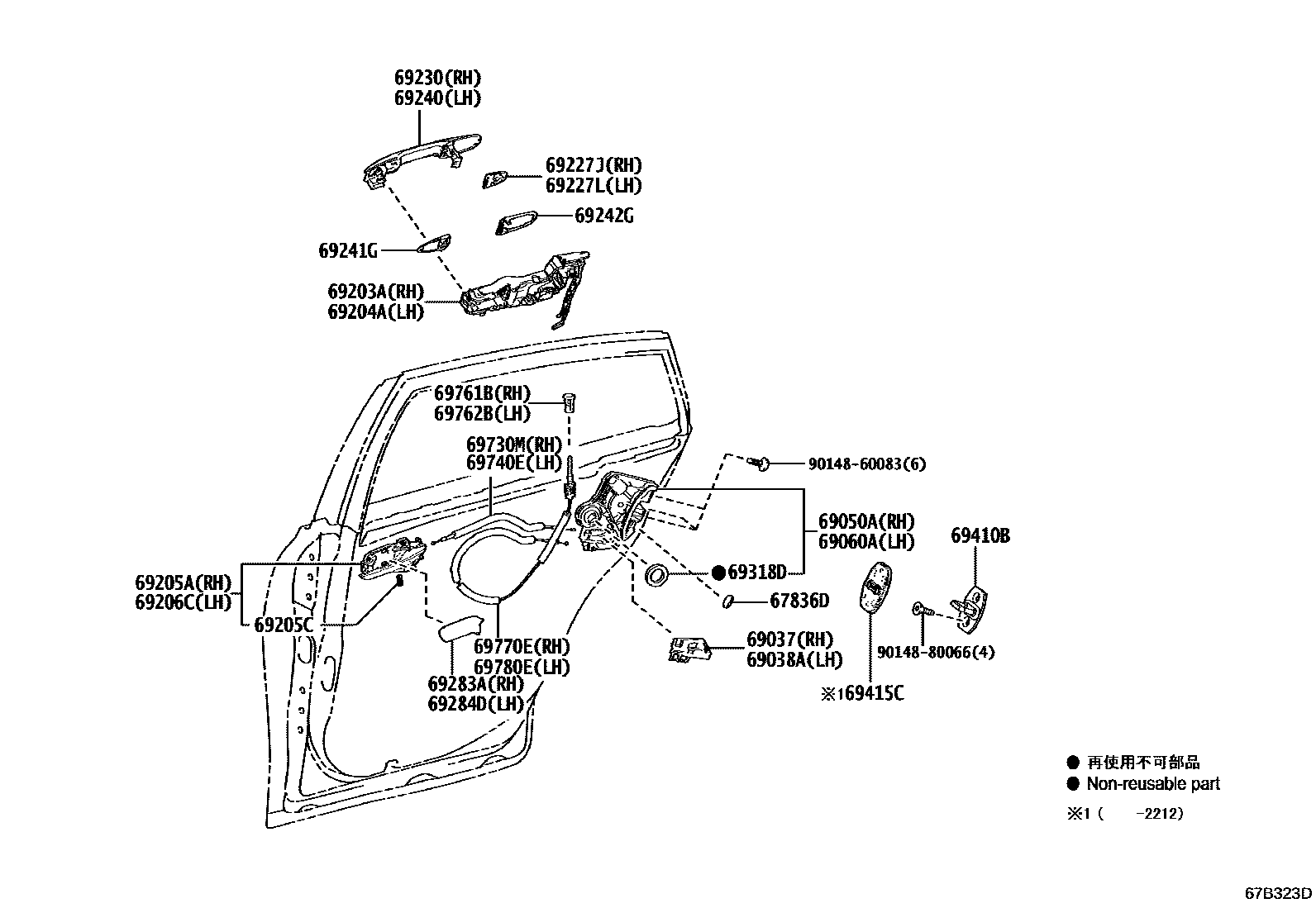

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-33030×2iJPD20202011-202312

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-30010iJPD20202412

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-30010iJPD20202412

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-30570iJPD20202011-202312

main69050-62040iJPD20..RHD..(H,S)202412

UNITED KINGDOM SPEC

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-30620iJPD20202011-202312

main69060-62040iJPD20..RHD202011-202312

UNITED KINGDOM SPEC

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-62020iJPD20202312-202411

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-62020iJPD20202312-202411

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30220iJPD20202312-202411

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main69275-30070×2iJPD20202312-202411

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30220iJPD20202312-202411

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-47020iJPD20202312-202411

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-47020iJPD20202312-202411

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-K0020-A5iJPD20..LHD..H202312-202411

PRECIOUS WHITE PEARL,090

main69210-K0020-B9iJPD20..LHD..H202312-202411

PRECIOUS SILVER,1J6

main69210-K0020-C2iJPD20..RHD..H202312-202411

PRECIOUS BLACK,219

main69210-K0020-D5iJPD20..LHD..H202312-202411

SMART ENTRY-WITH,EMOTIONAL RED 2,3U5

main69210-K0020-J4iJPD20..LHD..H202312-202411

DK.BLUE MC.,8S6

main69210-K0020-J8iJPD20..RHD..H202412

SMART ENTRY-WITH,FORCE BLUE MULTIPLE LAYER,8Y7

main69210-K0020-P0iJPD20..RHD..H202412

SMART ENTRY-WITH,PRECIOUS METAL,1L5

main69211-47021-A6iJPD20..B,S;JPD20..LHD..H202412

PRECIOUS WHITE PEARL,090

main69211-47021-B7iJPD20202011-202312

PRECIOUS SILVER,1J6

main69211-47021-C4iJPD20202011-202312

PRECIOUS BLACK,219

main69211-47021-D6iJPD20202011-202312

EMOTIONAL RED 2,3U5

main69211-47021-J7iJPD20202011-202312

DK.BLUE MC.,8S6

main69211-47021-P2iJPD20202011-202312

PRECIOUS METAL,1L5

main69211-47021-R1iJPD20..B,S;JPD20..LHD..H202312-202411

FORCE BLUE MULTIPLE LAYER,8Y7

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-K0020-A5iJPD20..LHD..H202412

PRECIOUS WHITE PEARL,090

main69210-K0020-B9iJPD20..RHD..H202312-202411

PRECIOUS SILVER,1J6

main69210-K0020-C2iJPD20..RHD..H202312-202411

PRECIOUS BLACK,219

main69210-K0020-D5iJPD20..LHD..H202312-202411

SMART ENTRY-WITH,EMOTIONAL RED 2,3U5

main69210-K0020-J4iJPD20..RHD..H202312-202411

DK.BLUE MC.,8S6

main69210-K0020-J8iJPD20..LHD..H202312-202411

SMART ENTRY-WITH,FORCE BLUE MULTIPLE LAYER,8Y7

main69210-K0020-P0iJPD20..LHD..H202312-202411

SMART ENTRY-WITH,PRECIOUS METAL,1L5

main69211-47021-A6iJPD20..B,S;JPD20..LHD..H202312-202411

PRECIOUS WHITE PEARL,090

main69211-47021-B7iJPD20202011-202312

PRECIOUS SILVER,1J6

main69211-47021-C4iJPD20..B,S;JPD20..LHD..H202412

PRECIOUS BLACK,219

main69211-47021-D6iJPD20202011-202312

EMOTIONAL RED 2,3U5

main69211-47021-J7iJPD20..B,S;JPD20..LHD..H202312-202411

DK.BLUE MC.,8S6

main69211-47021-P2iJPD20..B,S;JPD20..LHD..H202412

PRECIOUS METAL,1L5

main69211-47021-R1iJPD20..B,S;JPD20..LHD..H202312-202411

FORCE BLUE MULTIPLE LAYER,8Y7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-47020×2iJPD20202011-202312

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-47030×2iJPD20202011-202312

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30070-C0iJPD20202011-202104

BLACK,TRIM0#,2#

main69283-30070-C1iJPD20..B202312-202411

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30070-C0iJPD20202011-202104

BLACK,TRIM0#,2#

main69284-30070-C1iJPD20..B202312-202411

BLACK,TRIM2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iJPD20202312-202411

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110×2iJPD20202312-202411

main69410-33030×2iJPD20202011-202211

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-60020×2iJPD20202011-202212

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-62020iJPD20202312-202411

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-62020iJPD20202011-202312

69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH

main69761-62020-C0iJPD20..B202312-202411

BLACK,TRIM2#

69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH

main69761-62020-C0iJPD20..B202412

BLACK,TRIM2#

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-62020iJPD20202011-202312

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-62020iJPD20202412

9014860083

main90148-60083

9014880066

main90148-80066

29 parts on this diagram · 1 diagram in section
