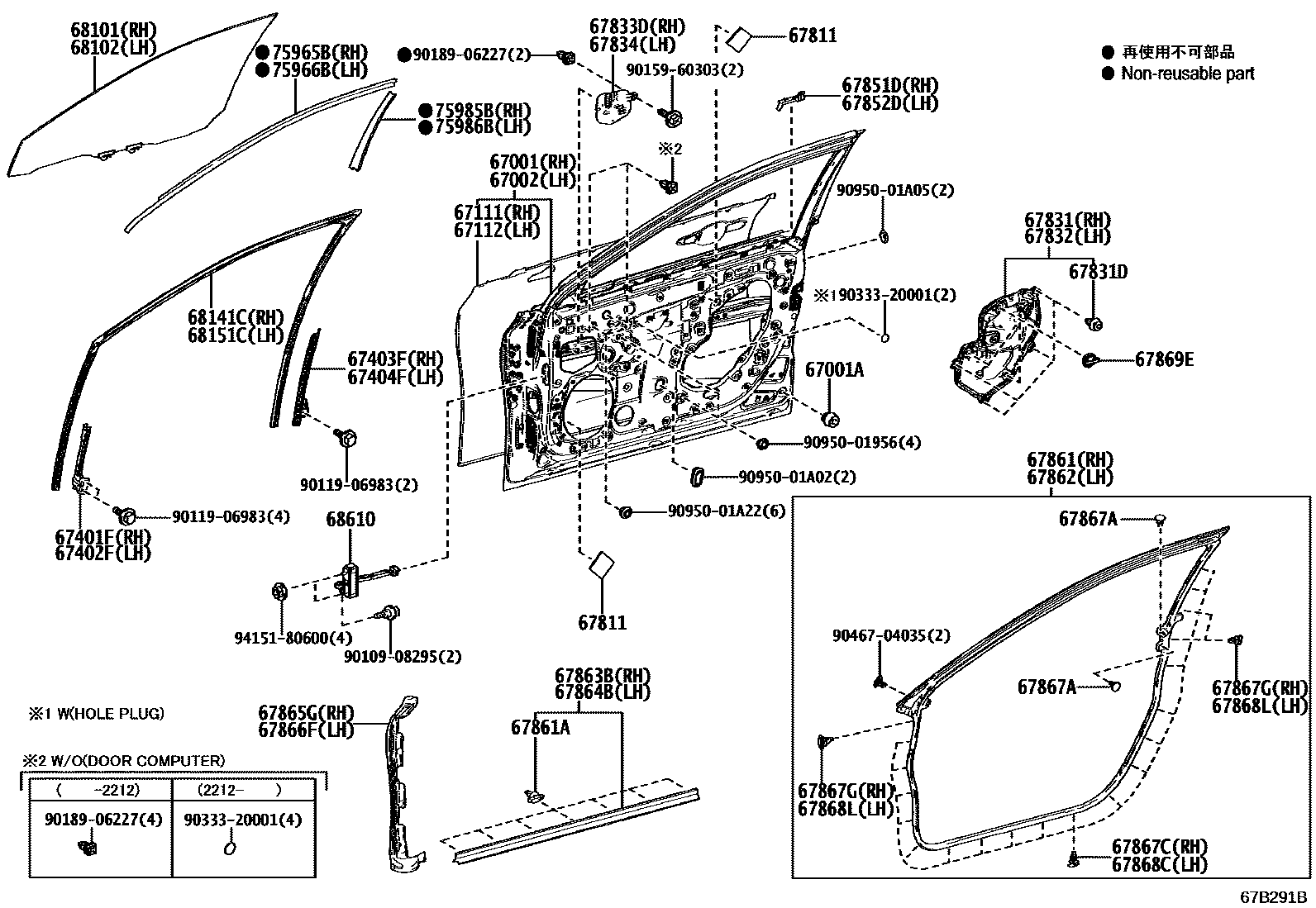

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-62060iJPD20202412

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iJPD20202312-202411

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-62040iJPD20202412

67111PANEL, FRONT DOOR, OUTER RH

main67111-62020iJPD20202312-202411

67112PANEL, FRONT DOOR, OUTER LH

main67112-62020iJPD20202312-202411

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-62020iJPD20202312-202411

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-62020iJPD20202312-202411

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-62020iJPD20202312-202411

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-62020iJPD20202412

67811PAD, FRONT DOOR SILENCER

main67811-30100×4iJPD20202312-202411

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-62020iJPD20202312-202411

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iJPD20202312-202411

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-62020iJPD20202312-202411

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-62010iJPD20202312-202411

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-62010iJPD20202312-202411

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-62010iJPD20202312-202411

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-62010iJPD20202312-202411

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-62020iJPD20202312-202411

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×14iJPD20202312-202411

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-62020iJPD20202412

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-62020iJPD20202312-202411

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-62020iJPD20202312-202411

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-62020iJPD20202312-202411

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-62020iJPD20202312-202411

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×4iJPD20202312-202411

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iJPD20202412

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×3iJPD20202312-202411

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iJPD20202312-202411

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×3iJPD20202312-202411

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iJPD20202312-202411

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-62020iJPD20202011-202106

main68101-62021iJPD20202107-202212

main68101-62040iJPD20202212-202311

main68101-62041iJPD20202312-202411

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-62020iJPD20202011-202106

main68102-62021iJPD20202107-202212

main68102-62040iJPD20202212-202311

main68102-62041iJPD20202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-62020iJPD20202412

68151CRUN, FRONT DOOR GLASS, LH

main68151-62020iJPD20202312-202411

68610CHECK ASSY, FRONT DOOR

main68610-62020×2iJPD20202011-202312

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-62020iJPD20202412

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-62020iJPD20202011-202312

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-62020iJPD20202011-202312

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-62020iJPD20202312-202411

9010908295

main90109-08295

9011906983

main90119-06983

9015960303

main90159-60303

9018906227

main90189-06227

9033320001

main90333-20001

9046704035

main90467-04035

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095001A22

main90950-01A22

9415180600

main94151-80600

50 parts on this diagram · 2 diagrams in section
