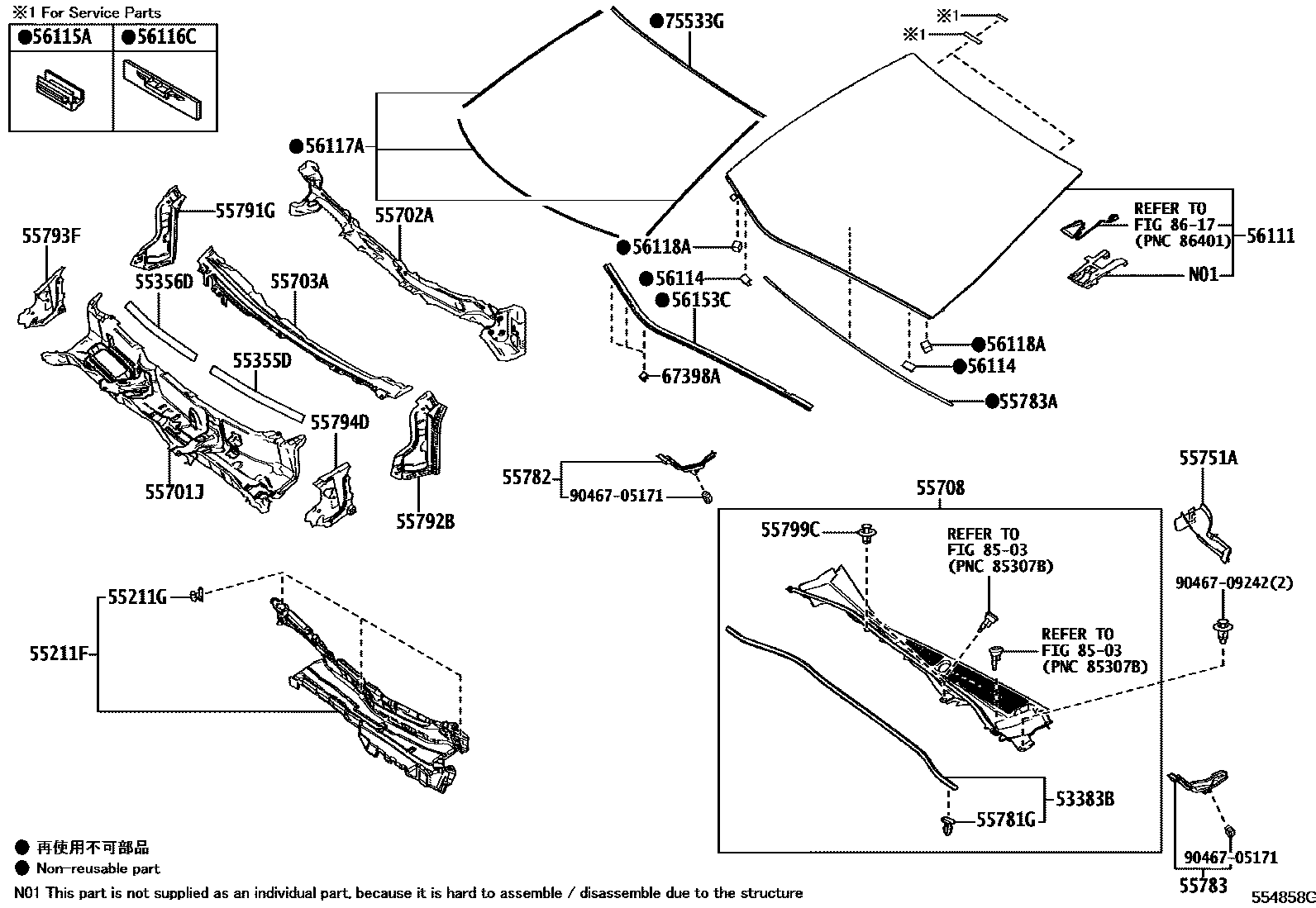

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-62020iJPD20202312-202411

55211FCOVER, DASH PANEL INSULATOR

main55211-62030iJPD20..LHD202011-202308

main55211-62031iJPD20..LHD202412

main55211-62040iJPD20..RHD202011-202308

main55211-62041iJPD20..RHD202412

55211GCLIP, DASH PANEL INSULATOR COVER

main90467-11122×3iJPD20202312-202411

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-62030iJPD20202412

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55357-62040iJPD20202011-202305

main55357-62041iJPD20202305-202312

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-62030iJPD20..LHD202412

main55701-62040iJPD20..RHD202011-202312

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-62010iJPD20..LHD202011-202312

main55702-62020iJPD20..RHD202412

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-62030iJPD20..LHD202312-202411

main55703-62040iJPD20..RHD202011-202304

main55703-62041iJPD20..RHD202412

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-62110iJPD20..RHD202312-202411

main55708-62120supersedes 55708-62100iJPD20..LHD202011-202212

COLD AREA SPEC

main55708-62130supersedes 55708-62110iJPD20..RHD202011-202212

COLD AREA SPEC

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-50010iJPD20..LHD202312-202411

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×14iJPD20202312-202411

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55773-62010iJPD20202312-202411

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55783-62030iJPD20202412

55783APAD, COWL TOP SILENCER

main55783-33130iJPD20202412

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-62010iJPD20202011-202312

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-62010iJPD20202011-202312

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-62010iJPD20202011-202312

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-62010iJPD20202011-202312

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iJPD20202011-202312

56111GLASS, WINDSHIELD

main56101-62925iJPD20..LHD..H202212-202312

MOON ROOF-PANORAMA ROOF

main56101-62926iJPD20..LHD..H202011-202212

MOON ROOF-PANORAMA ROOF

main56101-62928iJPD20..RHD..H202011-202212

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

main56101-62930iJPD20..RHD..H202212-202312

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF

main56101-62931supersedes 56101-62944iJPD20..LHD..H202011-202103

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56101-62932iJPD20..LHD..H202212-202312

WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH

main56101-62933supersedes 56101-62944iJPD20..LHD..H202011-202103

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

main56101-62934iJPD20..LHD..H202011-202212

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

main56101-62936iJPD20..RHD..H202011-202212

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56101-62937iJPD20..RHD..H202011-202212

HEAD-UP DISPLAY-WITH

main56101-62938iJPD20..RHD..H202212-202312

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

main56101-62939iJPD20..RHD..H202212-202312

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

main56101-62941iJPD20..LHD..H202103-202212

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56101-62942iJPD20..LHD..H202103-202212

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

main56101-62943supersedes 56101-62944iJPD20..LHD..H202412

MOON ROOF-PANORAMA ROOF

main56101-62950supersedes 56101-62949iJPD20..LHD202312-202411

WITHOUT(COLD AREA SPEC)

main56101-62951supersedes 56101-62944iJPD20..LHD..H202312-202411

MOON ROOF-PANORAMA ROOF

main56101-62952supersedes 56101-62944iJPD20..LHD..H202312-202411

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF

main56101-62954supersedes 56101-62959iJPD20..RHD..H202312-202411

MOON ROOF-PANORAMA ROOF

main56101-62955supersedes 56101-62953iJPD20..RHD..(B,S)202412

WITHOUT(COLD AREA SPEC)

main56101-62956supersedes 56101-62959iJPD20..RHD..H202312-202411

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF

main56101-62957supersedes 56101-62944iJPD20..LHD..H202412

WITHOUT(COLD AREA SPEC)

main56101-62958supersedes 56101-62944iJPD20..LHD..H202412

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF

main56101-62960supersedes 56101-62959iJPD20..RHD..H202312-202411

WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH

main56101-62961supersedes 56101-62959iJPD20..RHD..H202412

MOON ROOF-PANORAMA ROOF

main56101-62962supersedes 56101-62959iJPD20..RHD..H202412

WITHOUT(COLD AREA SPEC)&MOON ROOF-PANORAMA ROOF

56114RETAINER, WINDSHIELD GLASS

main56114-30120×2iJPD20202011-202312

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iJPD20202412

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iJPD20202412

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010supersedes 56117-64010iJPD20202011-202312

*D,L=1387 OR 650,MOON ROOF-PANORAMA ROOF

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30140×2supersedes 56118-30140iJPD20202011-202312

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-62010iJPD20..RHD202312-202411

main56153-62020iJPD20..LHD202011-202312

67398AGUIDE(FOR WINDOW DEFOGGER WIRE)

main67398-60010×3iJPD20202212-202312

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-62010iJPD20202312-202411

8503

8617

9046705171

main90467-05171

9046709242

main90467-09242

32 parts on this diagram · 2 diagrams in section
