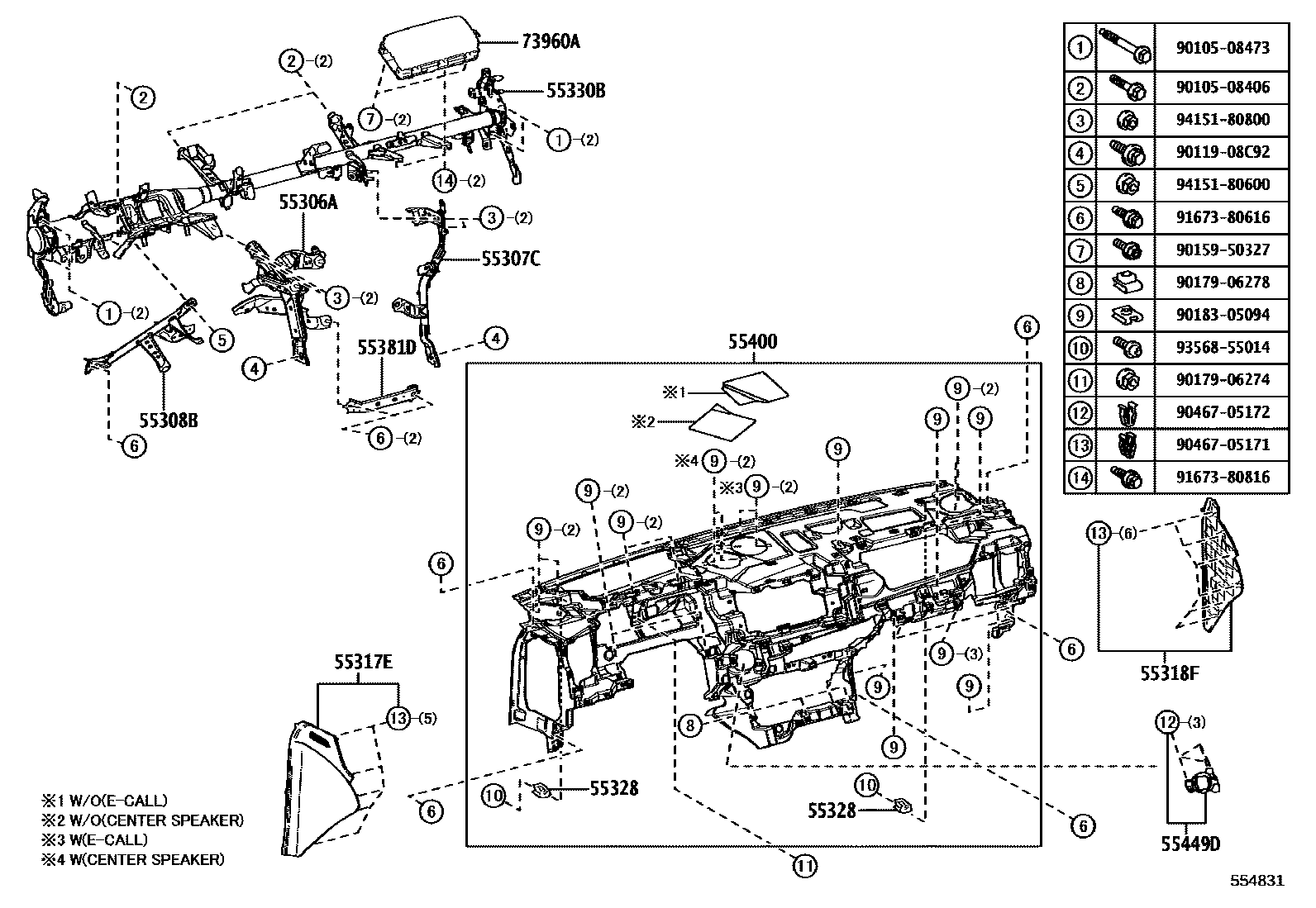

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-62030iJPD20..RHD202312-202411

main55306-62040iJPD20..LHD202011-202312

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-62030iJPD20..RHD202011-202312

main55307-62040iJPD20..LHD202312-202411

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-62010iJPD20..RHD202312-202411

main55308-62020iJPD20..LHD202312-202411

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-62070-C0iJPD20..B202312-202411

BLACK,TRIM0#,2#

main55317-62080-C0iJPD20..LHD202312-202411

BLACK,TRIM0#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-62080-C0iJPD20..B202312-202411

BLACK,TRIM0#,2#

main55318-62100-C0iJPD20..LHD202011-202312

BLACK,TRIM0#,2#

main55318-62070-C0supersedes 55318-62080-C0iJPD20..RHD..S202412

NEW ZEALAND SPEC,BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×2iJPD20202312-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-62030iJPD20..RHD202011-202312

main55330-62040iJPD20..LHD202412

55381DBRACKET, INSTRUMENT PANEL SHIFT MOUNTING, NO.1

main55381-62010iJPD20..RHD202312-202411

main55381-62020iJPD20..LHD202312-202411

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-62020iJPD20..RHD202011-202312

main55400-62040iJPD20..LHD202412

main55400-62030iJPD20..RHD..(B,S)202312-202411

NEW ZEALAND SPEC

main55400-62050iJPD20..LHD..H202412

COSTA RICA SPEC

main55400-62060iJPD20..LHD..H202011-202212

COSTA RICA SPEC

55449DBASE, SWITCH

main55449-62030iJPD20..RHD202011-202312

main55449-62040iJPD20..LHD202011-202312

main55449-62050iJPD20..RHD202312-202411

main55449-62060iJPD20..LHD202312-202411

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-62030iJPD20202312-202411

9010508406

main90105-08406

9010508473

main90105-08473

9011908C92

main90119-08C92

9015950327

main90159-50327

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 8 diagrams in section
