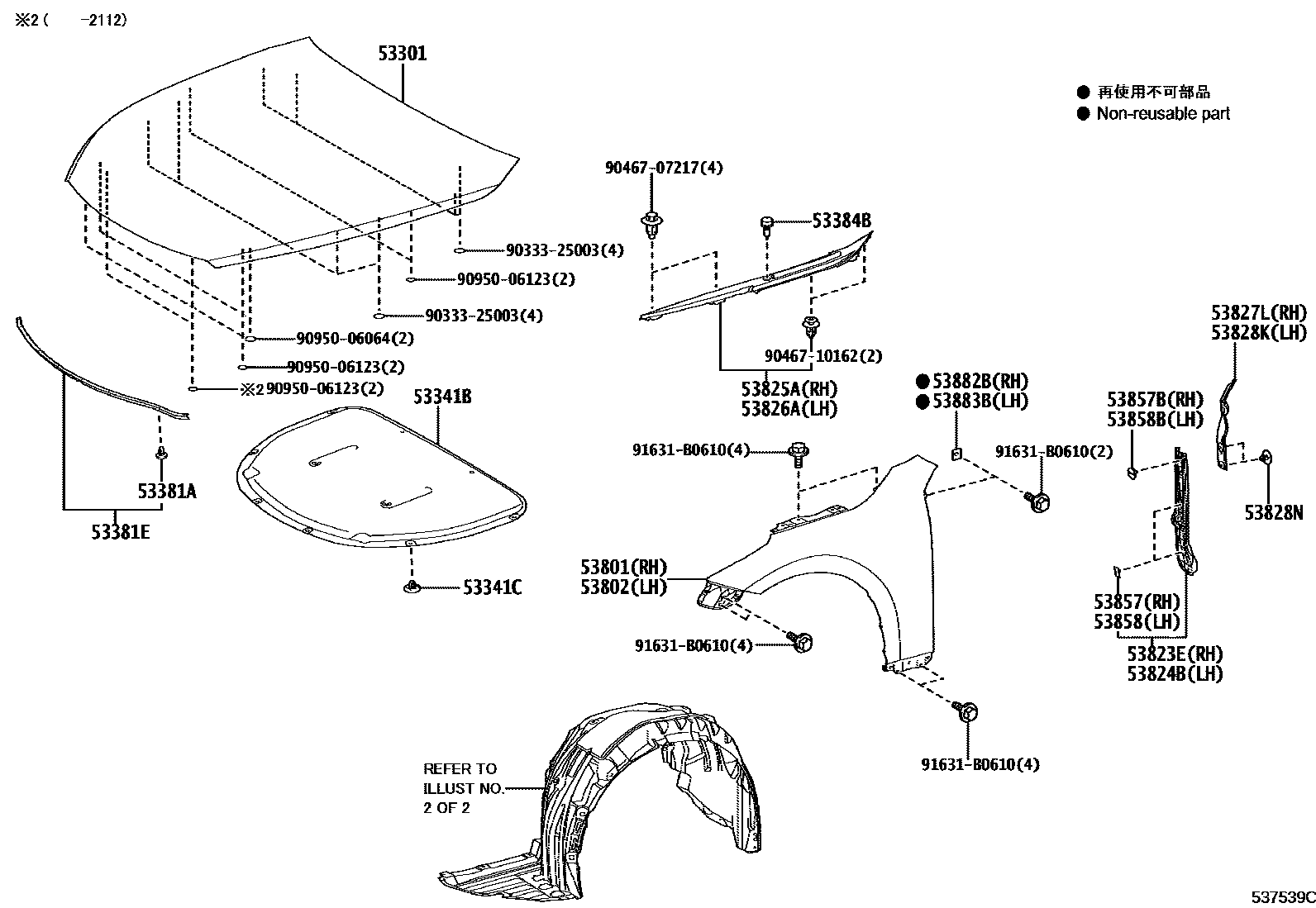

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-62030iJPD20¥72,300202011-202411

53341BINSULATOR, HOOD

main53341-62020iJPD20¥6,700202011-202411

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iJPD20¥120202011-202411

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iJPD20¥100202011-202411

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-62020iJPD20¥1,140202011-202411

53384BCUSHION, HOOD, CENTER

main53384-68010iJPD20¥380202011-202411

53801FENDER SUB-ASSY, FRONT RH

main53801-62030iJPD20¥38,500202011-202411

53802FENDER SUB-ASSY, FRONT LH

main53802-62030iJPD20¥38,500202011-202411

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-62020iJPD20¥1,810202011-202411

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-62020iJPD20¥1,810202011-202411

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-62020iJPD20¥3,100202011-202411

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-62020iJPD20¥3,100202011-202411

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-62020iJPD20¥1,170202011-202411

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-62020iJPD20¥1,170202011-202411

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iJPD20202011-202411

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iJPD20¥100202011-202411

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iJPD20¥60202011-202411

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iJPD20¥100202011-202411

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iJPD20¥60202011-202411

53882BSEAL, FRONT FENDER, RH

main53882-30030iJPD20¥60202011-202411

53883BSEAL, FRONT FENDER, LH

main53882-30030iJPD20¥60202011-202411

9033325003

main90333-25003¥70

9046707217

main90467-07217¥80

9046710162

main90467-10162¥90

9095006064

main90950-06064¥110

9095006123

main90950-06123¥110

91631B0610

main91631-B0610¥110

27 parts on this diagram · 2 diagrams in section
