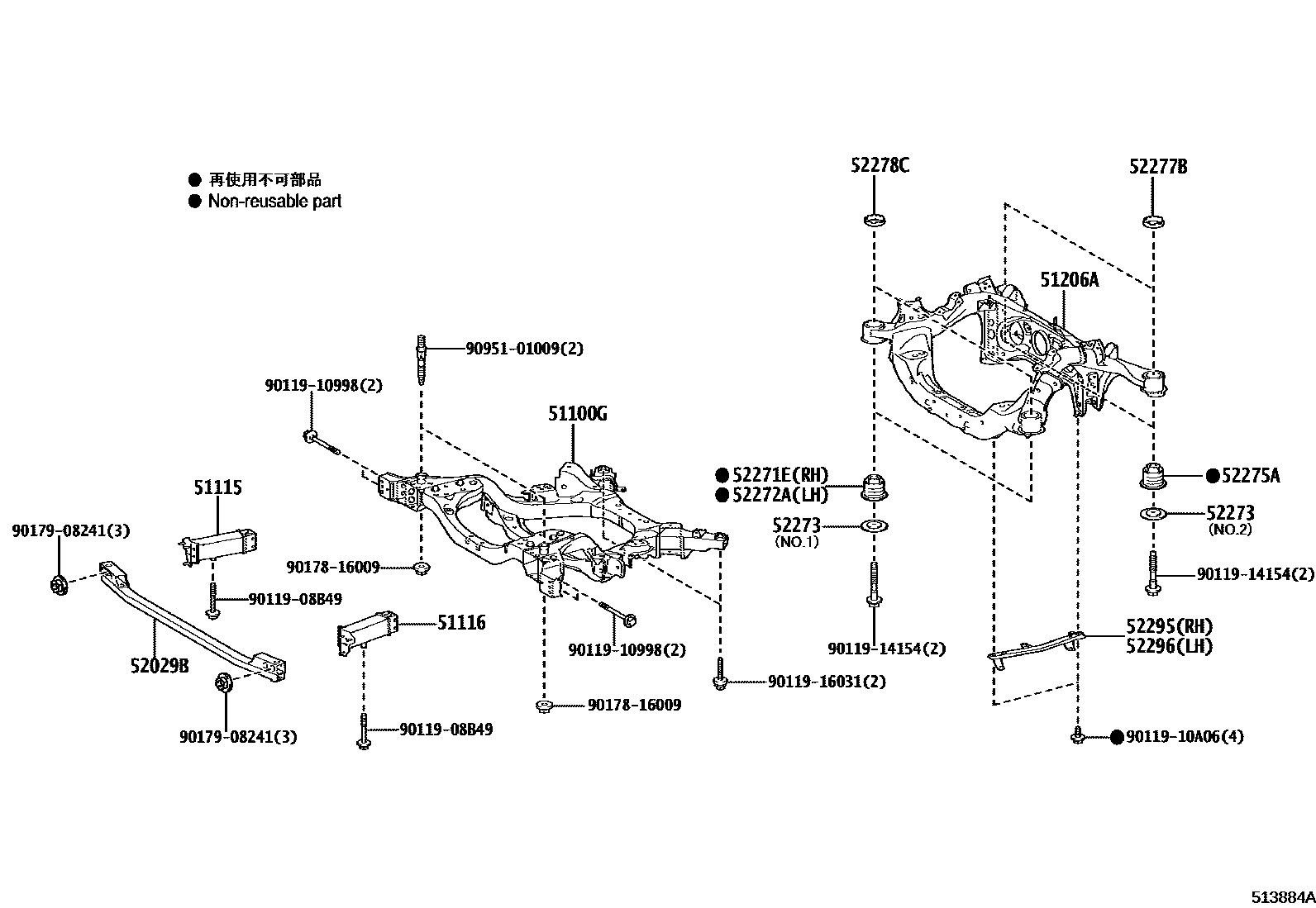

SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
51115RAIL, FRAME SIDE, REAR RH
51116RAIL, FRAME SIDE, REAR LH
51206AMEMBER SUB-ASSY, REAR SUSPENSION
52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
9011908B49
9011910998
9011910A06
9011914154
9011916031
9017816009
9017908241
9095101009
21 parts on this diagram · 4 diagrams in section
