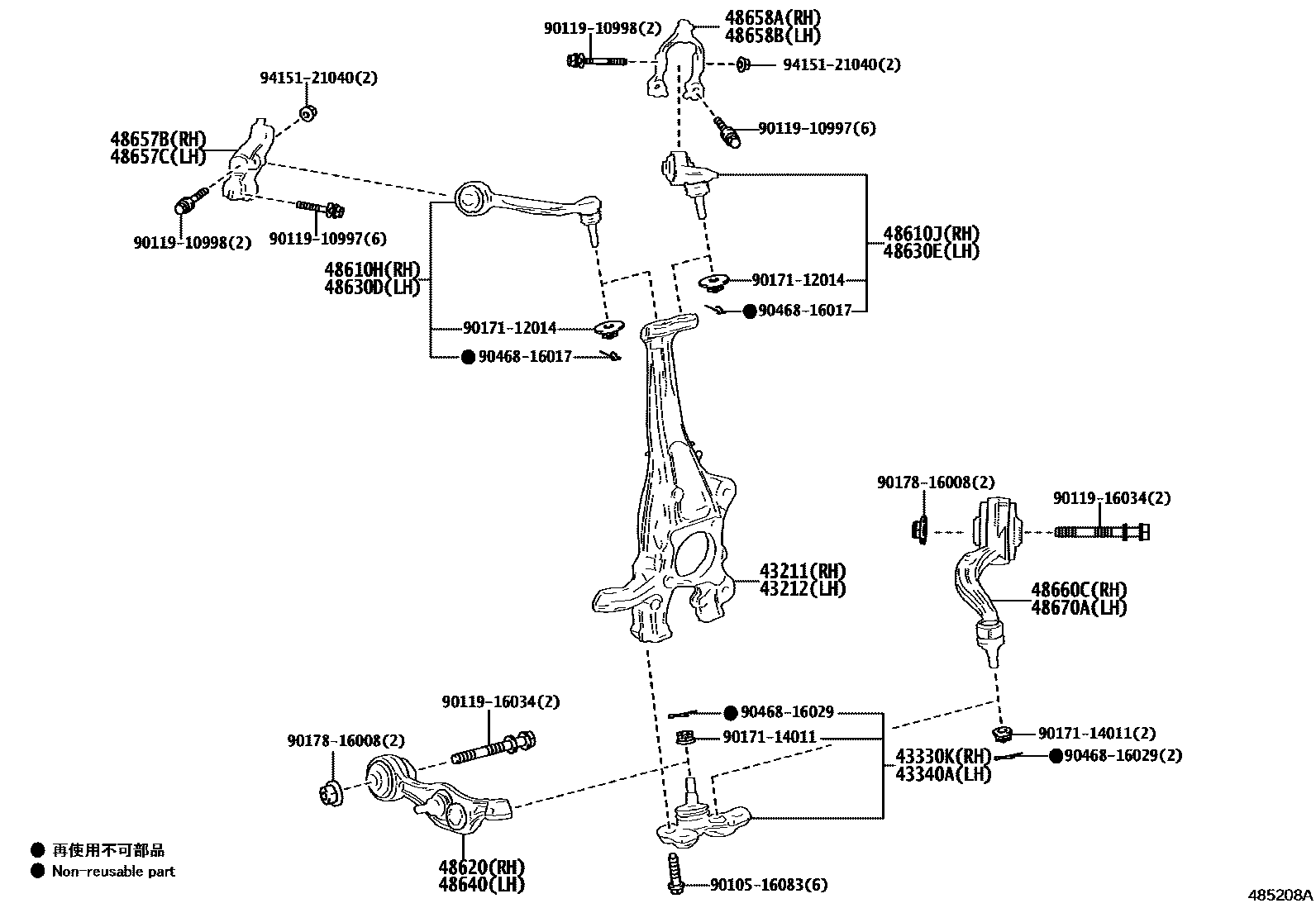

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-50050iJPD20202011-202411

43212KNUCKLE, STEERING, LH

main43202-50050iJPD20202011-202411

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-59145iJPD20202011-202411

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-59145iJPD20202011-202411

48610HARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main48610-59155iJPD20202011-202411

48610JARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH

main48610-59165iJPD20202011-202411

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-62011iJPD20202011-202411

48630DARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH

main48630-59155iJPD20202011-202411

48630EARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH

main48630-59165iJPD20202011-202411

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-62011iJPD20202011-202411

48657BBRACKET, FRONT UPPER ARM, NO.1 RH

main48657-50030iJPD20202011-202411

48657CBRACKET, FRONT UPPER ARM, NO.1 LH

main48657-50040iJPD20202011-202411

48658ABRACKET, FRONT UPPER ARM, NO.2 RH

main48658-50020iJPD20202011-202411

48658BBRACKET, FRONT UPPER ARM, NO.2 LH

main48658-50030iJPD20202011-202411

48660CARM ASSY, SUSPENSION, LOWER NO.2 RH

main48660-62011iJPD20202011-202411

48670AARM ASSY, SUSPENSION, LOWER NO.2 LH

main48670-62011iJPD20202011-202411

9010516083

main90105-16083

9011910997

main90119-10997

9011910998

main90119-10998

9011916034

main90119-16034

9017112014

main90171-12014

9017114011

main90171-14011

9017816008

main90178-16008

9046816017

main90468-16017

9046816029

main90468-16029

9415121040

main94151-21040

26 parts on this diagram · 1 diagram in section
