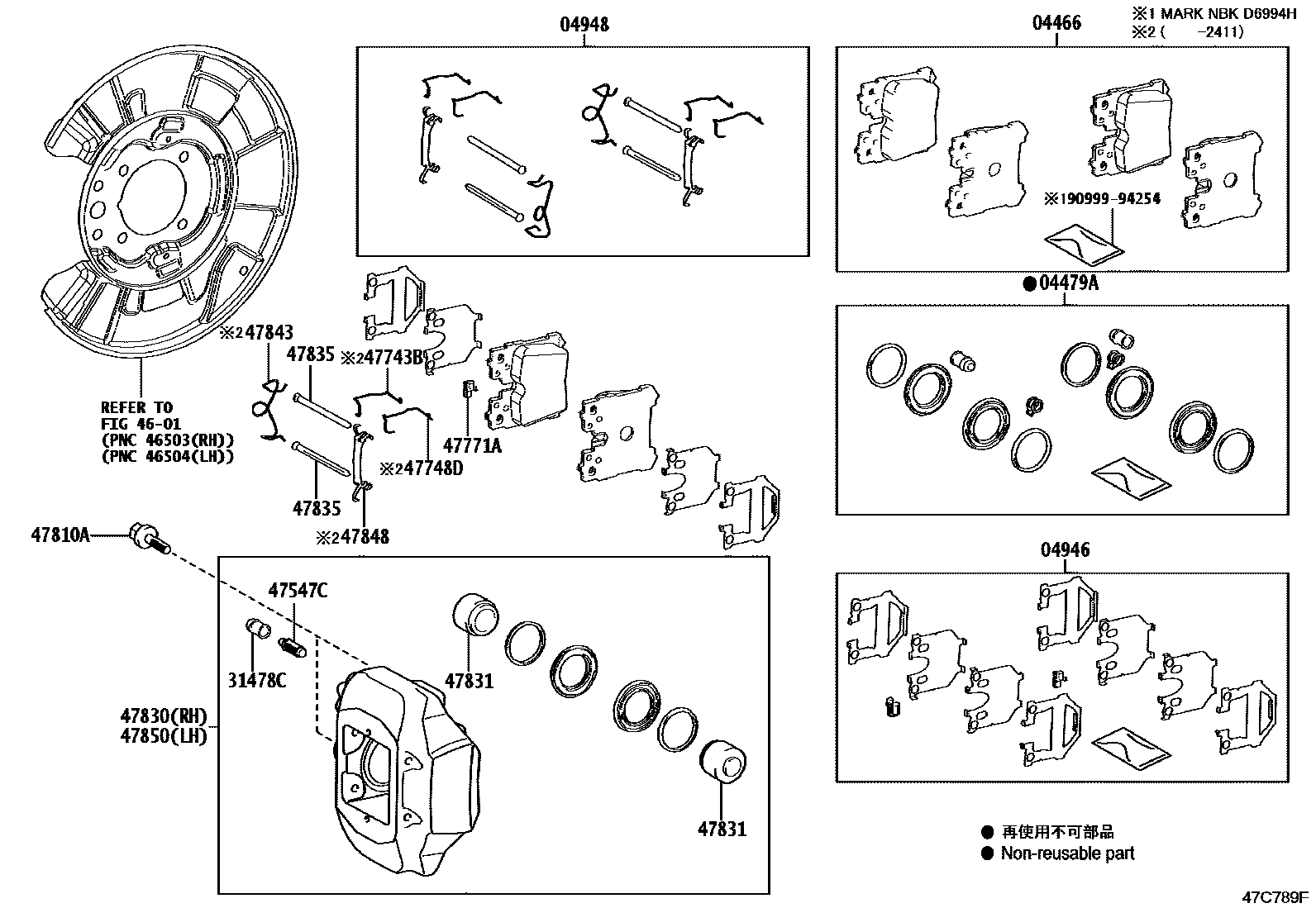

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-50200iJPD20202011-202312

MARK NBK D6994H

main04466-50220iJPD20202312-202411

MARK NBK D6504H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-62020iJPD20202011-202411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-62010iJPD20202011-202411

04948FITTING KIT, DISC BRAKE, REAR

main04948-50070iJPD20202011-202411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iJPD20202011-202411

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010iJPD20202011-202411

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47718-50210iJPD20202412

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47717-50210iJPD20202412

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-30620iJPD20202011-202411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396iJPD20202011-202411

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50200iJPD20202011-202411

47831PISTON, REAR DISC BRAKE

main47731-50180iJPD20202011-202411

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140iJPD20202011-202411

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-50140iJPD20202412

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-50150iJPD20202412

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50200iJPD20202011-202411

9099994254

main90999-94254

18 parts on this diagram · 1 diagram in section
