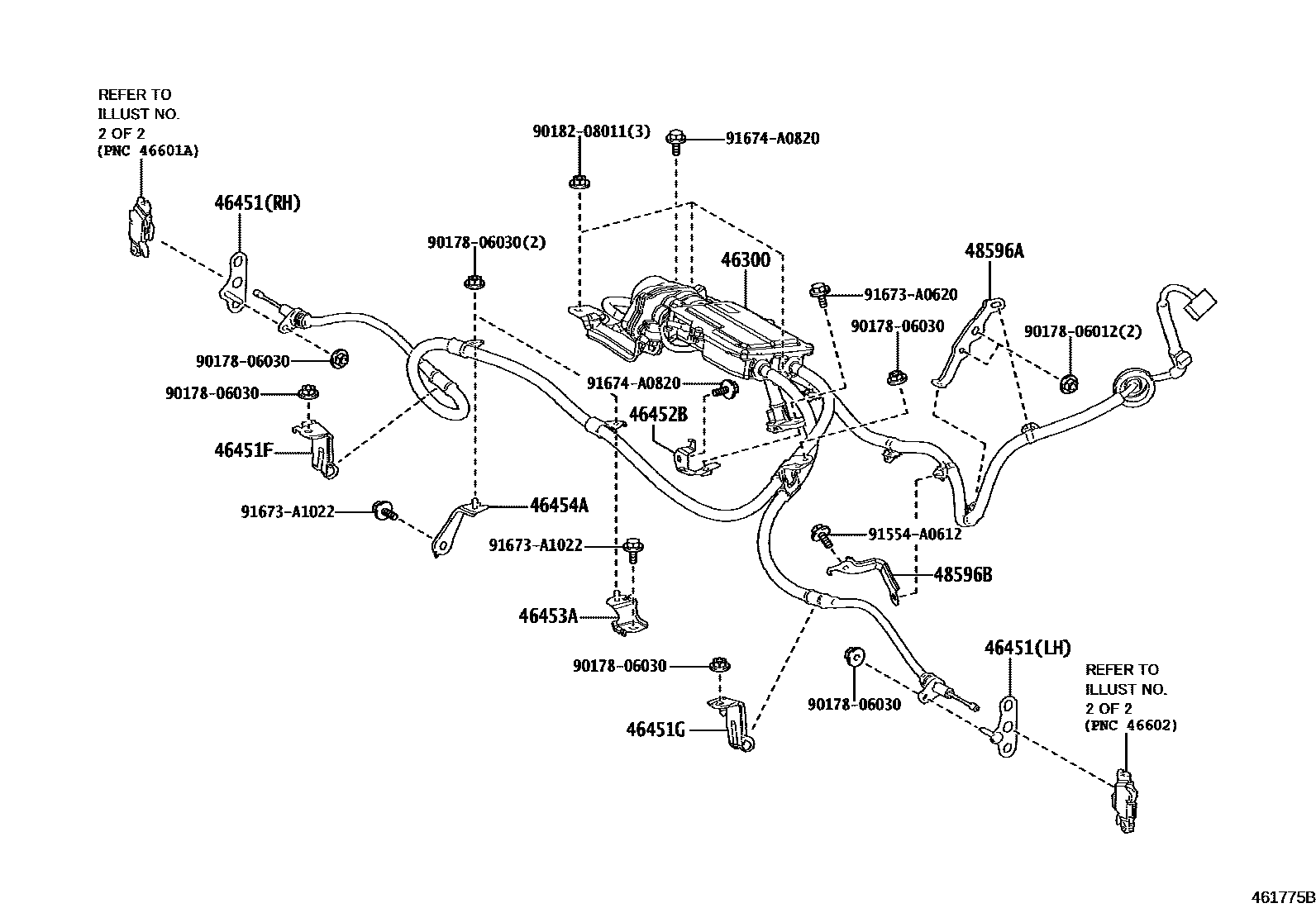

PARKING BRAKE & CABLE
46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46451FBRACKET, CABLE SUPPORT
46451GBRACKET, CABLE SUPPORT
46452BBRACKET, CABLE SUPPORT, NO.2
46453ABRACKET, CABLE SUPPORT, NO.3
46454ABRACKET, CABLE SUPPORT, NO.4
48596ACLAMP, ACTUATOR HARNESS, NO.1
48596BCLAMP, ACTUATOR HARNESS, NO.2
9017806012
main90178-06012
9017806030
main90178-06030
9018208011
main90182-08011
91554A0612
main91554-A0612
91673A0620
main91673-A0620
91673A1022
main91673-A1022
91674A0820
main91674-A0820
16 parts on this diagram · 2 diagrams in section
