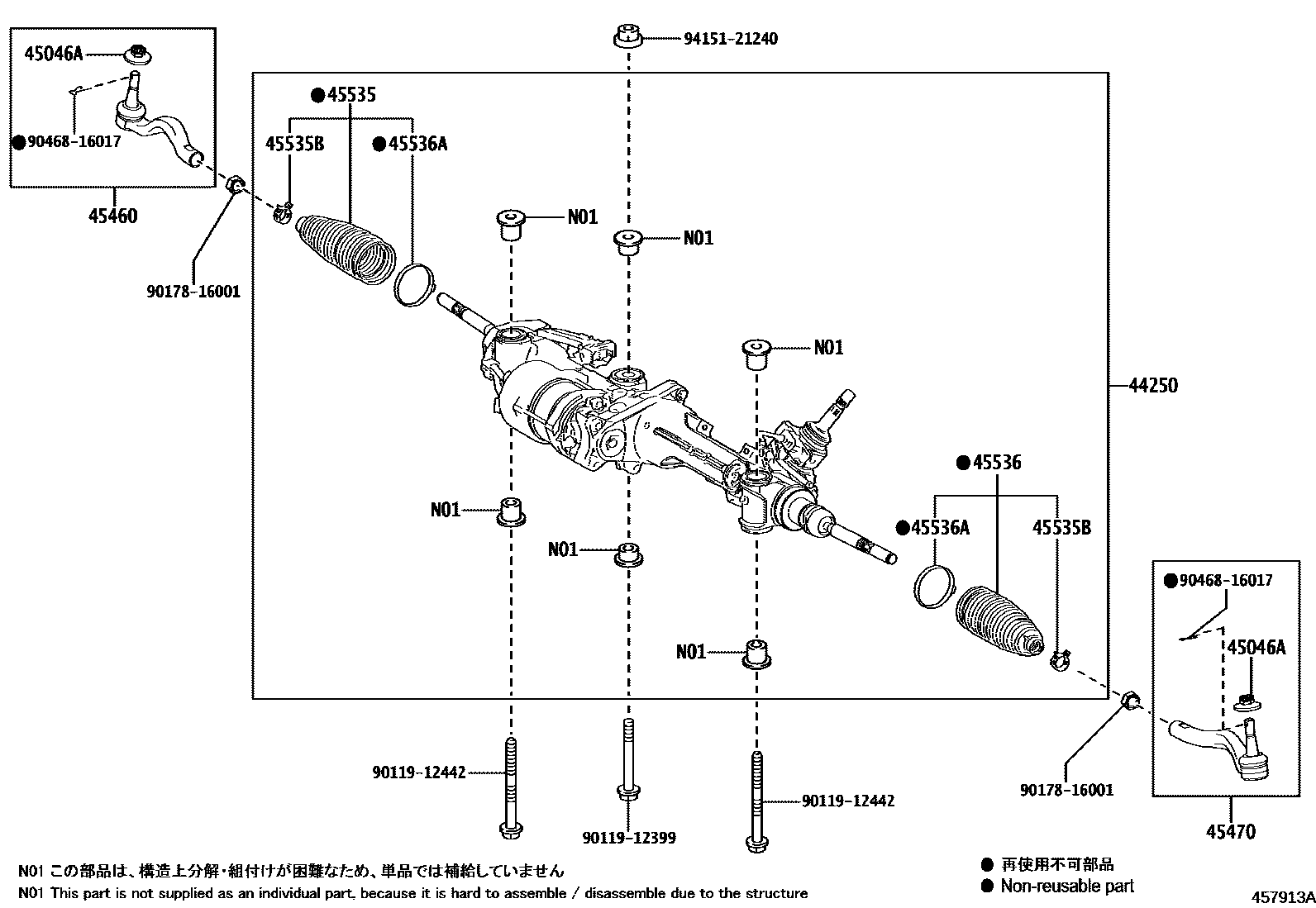

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-62031iJPD20..LHD202312-202411

main44250-62041iJPD20..RHD202312-202411

main44250-62060iJPD20..LHD202011-202312

*614

main44250-62110iJPD20..RHD202011-202312

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iJPD20202011-202411

45460ROD ASSY, TIE, RH

main45460-59125iJPD20202011-202411

45470ROD ASSY, TIE, LH

main45470-59145iJPD20202011-202411

45535BOOT, STEERING RACK, NO.1

main45535-19005iJPD20202011-202411

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iJPD20202011-202411

45536BOOT, STEERING RACK, NO.2

main45535-19005iJPD20202011-202411

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iJPD20202011-202411

9011912399

main90119-12399

9011912442

main90119-12442

9017816001

main90178-16001

9046816017

main90468-16017

9415121240

main94151-21240

13 parts on this diagram · 2 diagrams in section
