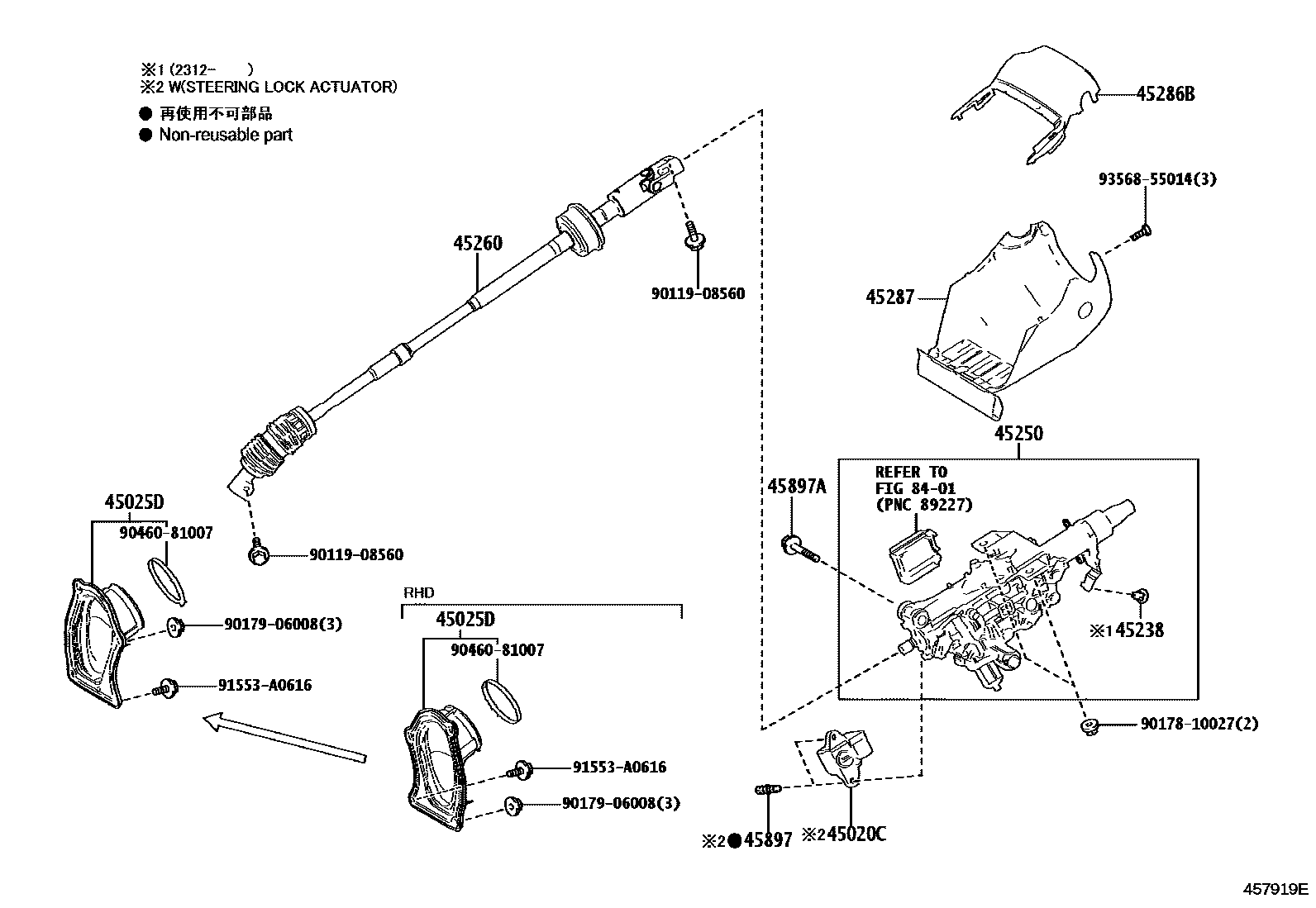

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
AUSTRALIA, NEW ZEALAND SPEC
NEW ZEALAND SPEC
IRELAND SPEC
UNITED KINGDOM SPEC
NEW ZEALAND SPEC
AUSTRALIA, NEW ZEALAND SPEC
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
IRELAND SPEC
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
UNITED KINGDOM SPEC
IRELAND SPEC
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
AUSTRALIA SPEC,BLACK,TRIM0#,2#
AUSTRALIA SPEC,BLACK,TRIM2#
U.A.E. SPEC,BLACK,TRIM0#,2#
ISRAEL SPEC,BLACK,TRIM0#,2#
COSTA RICA SPEC,BLACK,TRIM0#,2#
SAUDI ARABIA SPEC,BLACK,TRIM0#,2#
NEW ZEALAND SPEC,BLACK,TRIM0#,2#
NEW ZEALAND SPEC,BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
45287COVER, STEERING COLUMN, LWR
U.A.E. SPEC,BLACK,TRIM0#,2#
ISRAEL SPEC,BLACK,TRIM0#,2#
COSTA RICA SPEC,BLACK,TRIM0#,2#
SAUDI ARABIA SPEC,BLACK,TRIM0#,2#
NEW ZEALAND SPEC,BLACK,TRIM0#,2#
NEW ZEALAND SPEC,BLACK,TRIM2#
AUSTRALIA SPEC,BLACK,TRIM0#,2#
AUSTRALIA SPEC,BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
45897BOLT, STEERING LOCK SET
AUSTRALIA, NEW ZEALAND SPEC
IRELAND SPEC
UNITED KINGDOM SPEC
NEW ZEALAND SPEC
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
9356855014
main93568-55014
16 parts on this diagram · 2 diagrams in section
