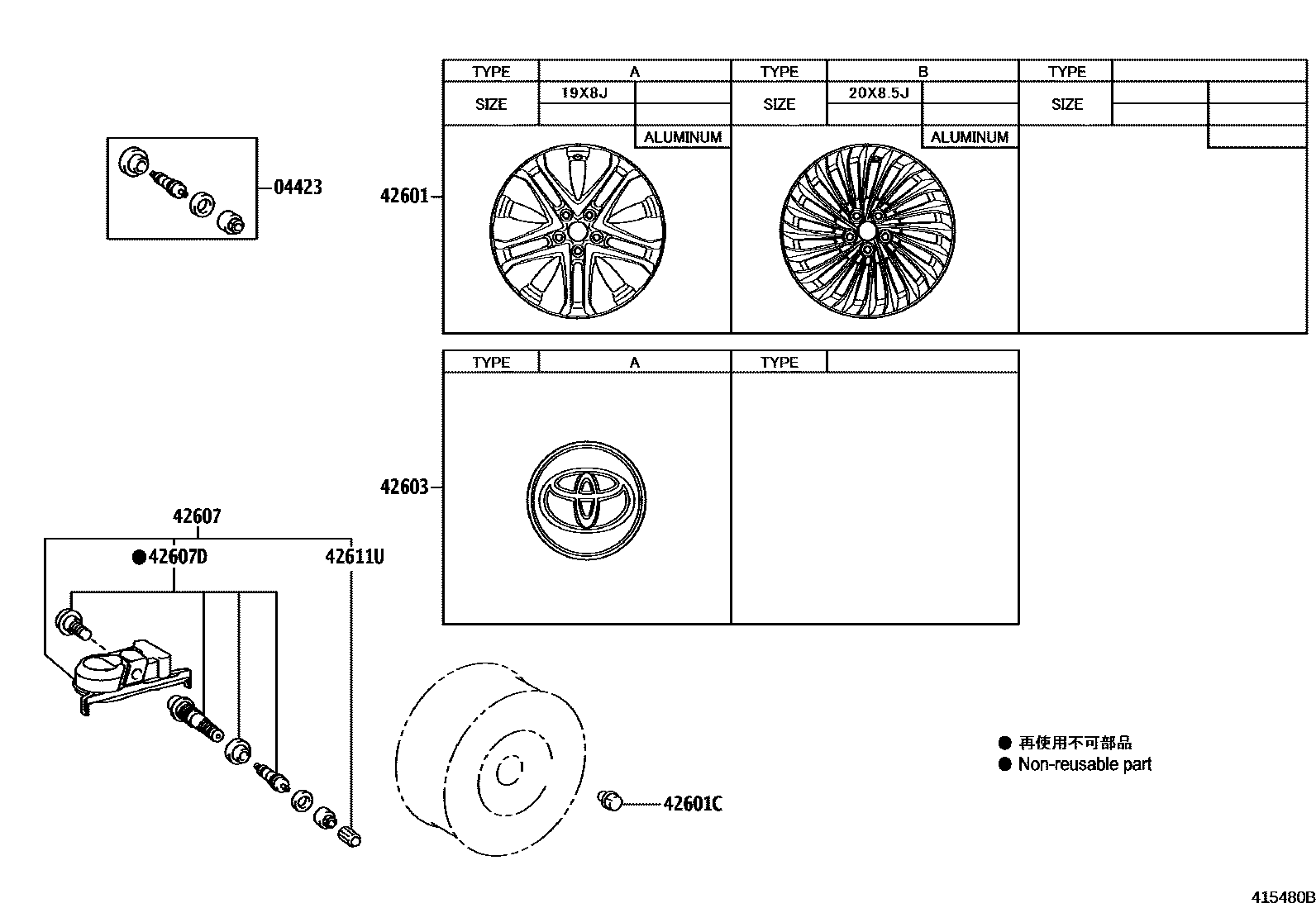

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
19X8J,#,AUSTRALIA SPEC,TYPE A:REFER ILLUST.
19X8J,#,NEW ZEALAND SPEC,TYPE A:REFER ILLUST.
19X8J,#,AUSTRALIA, NEW ZEALAND SPEC,TYPE A:REFER ILLUST.
19X8J,#,TYPE A:REFER ILLUST.
20X8.5J,#,U.A.E. SPEC&TIRE & DISC WHEEL-245/45R20, BLACK, SUMMER TIRE,TYPE B:REFER ILLUST.
20X8.5J,#,COSTA RICA SPEC&TIRE & DISC WHEEL-245/45R20, BLACK, SUMMER TIRE,TYPE B:REFER ILLUST.
20X8.5J,#,SAUDI ARABIA SPEC&TIRE & DISC WHEEL-245/45R20, BLACK, SUMMER TIRE,TYPEB:REFER ILLUST.
20X8.5J,#,TIRE & DISC WHEEL-245/45R20, BLACK, SUMMER TIRE,TYPE B:REFER ILLUST.
19X8J,#,AUSTRALIA SPEC&TIRE & DISC WHEEL-235/55R19 8J, BLACK, SUMMER TIRE,TYPE A:REFER ILLUST.
19X8J,#,NEW ZEALAND SPEC&TIRE & DISC WHEEL-235/55R19 8J, BLACK, SUMMER TIRE,TYPEA:REFER ILLUST.
19X8J,#,AUSTRALIA, NEW ZEALAND SPEC&TIRE & DISC WHEEL-235/55R19 8J, BLACK, SUMMERTIRE,TYPE A:REFER ILLUST.
19X8J,#,TIRE & DISC WHEEL-235/55R19 8J, BLACK, SUMMER TIRE,TYPE A:REFER ILLUST.
19X8J, #,TYPE A:REFER ILLUST.
20X8.5J, #,SAUDI ARABIA SPEC&TIRE & DISC WHEEL-245/45R20, *CR, SUMMER TIRE,TYPE B:REFER ILLUST.
20X8.5J, #,U.A.E. SPEC&TIRE & DISC WHEEL-245/45R20, *CR, SUMMER TIRE,TYPE B:REFERILLUST.
20X8.5J, #,COSTA RICA SPEC&TIRE & DISC WHEEL-245/45R20, *CR, SUMMER TIRE,TYPE B:REFER ILLUST.
20X8.5J, #,TIRE & DISC WHEEL-245/45R20, *CR, SUMMER TIRE,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-235/55R19 8J, BLACK, SUMMER TIRE
TIRE & DISC WHEEL-245/45R20, BLACK, SUMMER TIRE
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611UCAP, TIRE VALVE
7 parts on this diagram · 1 diagram in section
