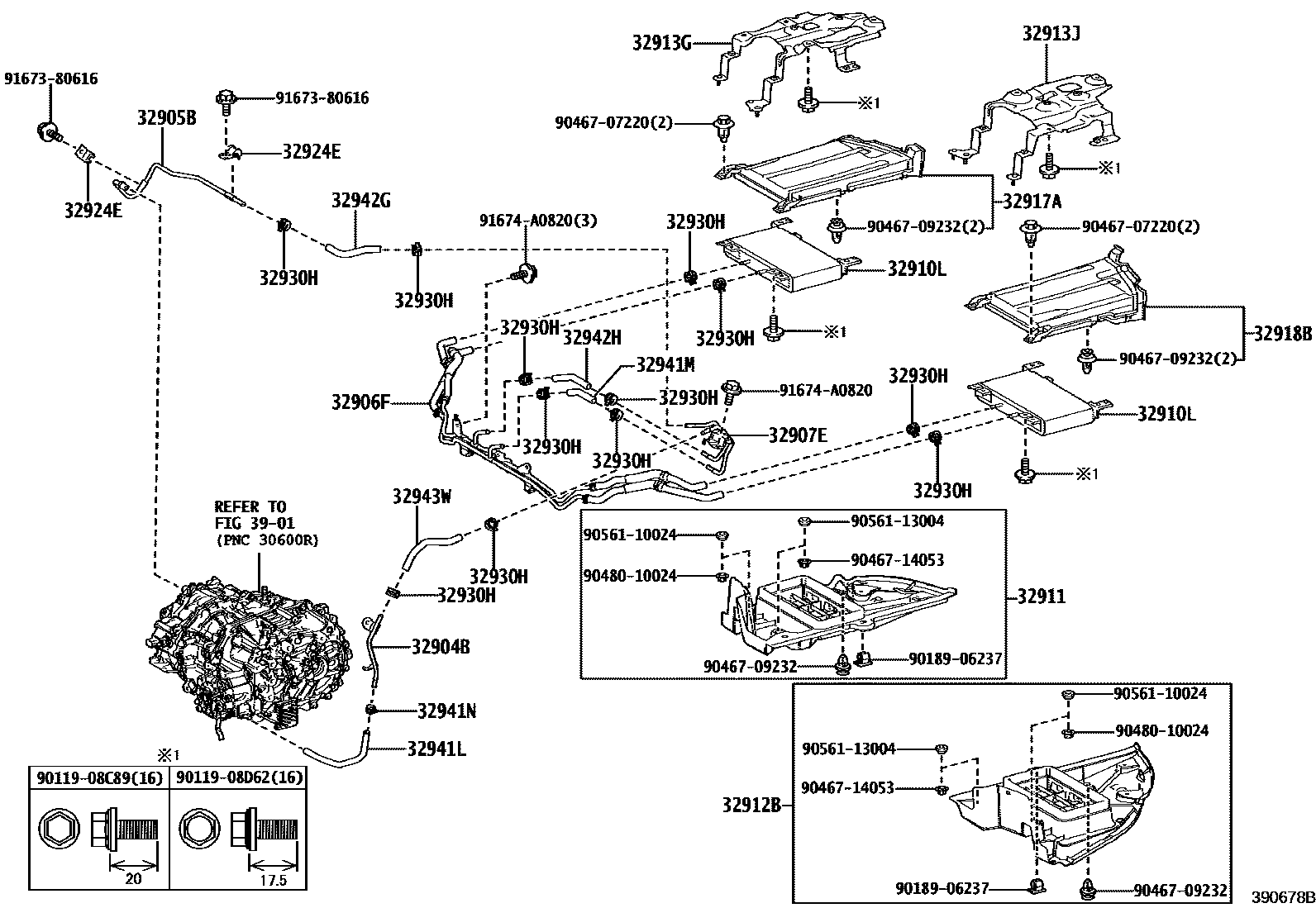

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-62010iJPD20202412

32905BTUBE SUB-ASSY, OIL COOLER OUTLET

main32905-62020iJPD20202312-202411

32906FTUBE SUB-ASSY, OIL COOLER

main32960-62050iJPD20202312-202411

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32906-62030iJPD20202312-202411

32910LCOOLER ASSY, OIL

main32910-62020×2iJPD20202011-202312

sub90119-08D62

main32910-62021×2iJPD20202412

32911COVER, TRANSMISSION OIL COOLER UNDER, RH

main32911-62010iJPD20202312-202411

32912BCOVER, TRANSMISSION OIL COOLER UNDER, LH

main32912-62010iJPD20202312-202411

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-62020iJPD20202312-202411

32913JBRACKET, TRANSMISSION OIL COOLER, NO.2

main32914-62010iJPD20202312-202411

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-62010iJPD20202412

32918BDUCT, TRANSMISSION OIL COOLER AIR, LH

main32918-62010iJPD20202312-202411

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010×2iJPD20202312-202411

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×12iJPD20202312-202411

32941LHOSE, OIL COOLER INLET, NO.1

main32941-62010iJPD20202312-202411

32941MHOSE, OIL COOLER INLET, NO.2

main32941-62040iJPD20202312-202411

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iJPD20202312-202411

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-62020iJPD20202312-202411

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-62030iJPD20202312-202411

32943WHOSE, TRANSMISSION OIL COOLER

main32941-62030iJPD20202312-202411

3901

9011908C89

main90119-08C89

9011908D62

main90119-08D62

9018906237

main90189-06237

9046707220

main90467-07220

9046709232

main90467-09232

9046714053

main90467-14053

9048010024

main90480-10024

9056110024

main90561-10024

9056113004

main90561-13004

9167380616

main91673-80616

91674A0820

main91674-A0820

31 parts on this diagram · 1 diagram in section
