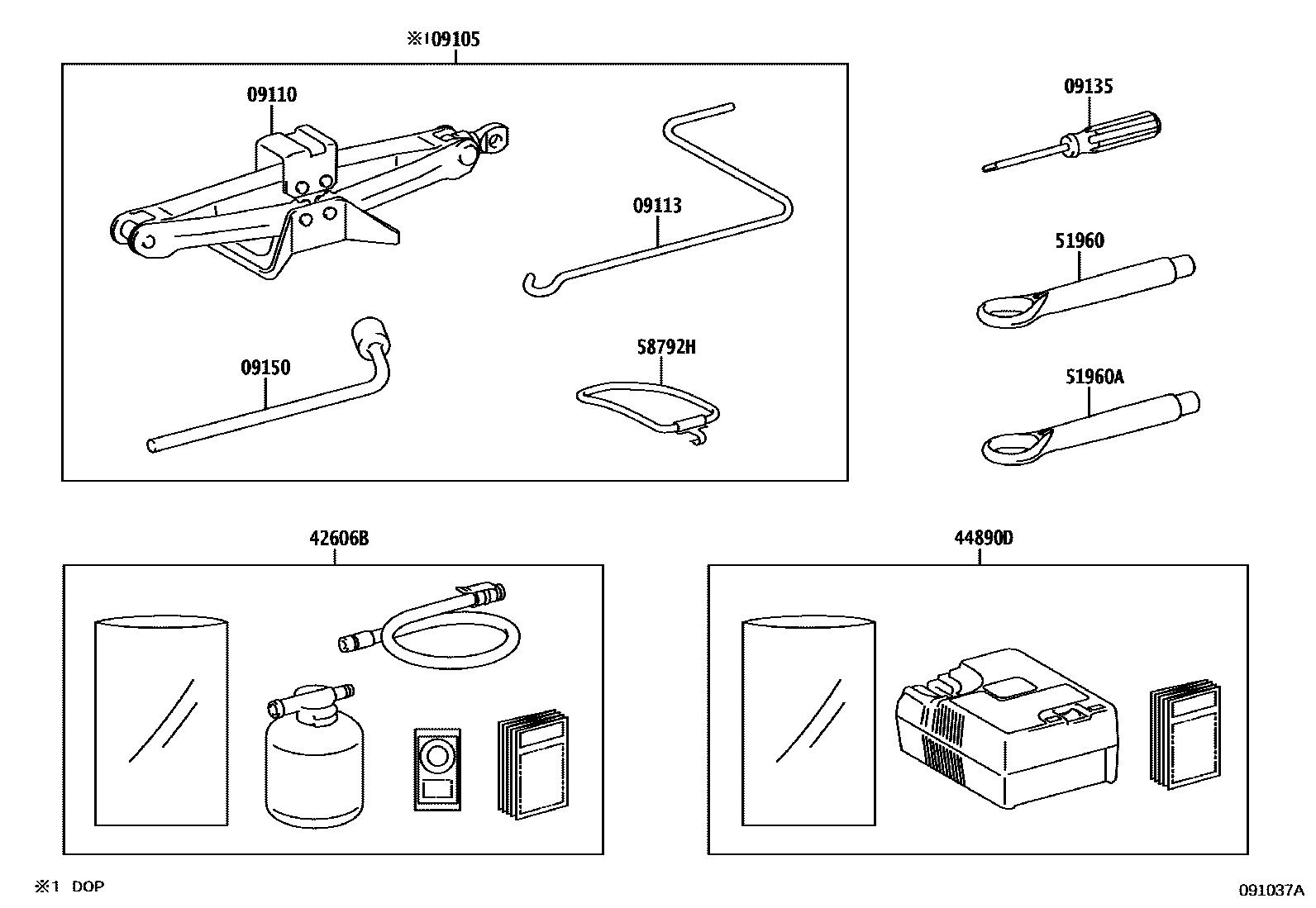

STANDARD TOOL

09105BOX SET, JACK

main09105-62010

main09105-62020

09110JACK ASSY

main09110-62020

main09111-50140

main09111-50141

09113HANDLE, JACK

main09113-30060

09135DRIVER, SCREW

main99915-10700iJPD20202011-202411

09150WRENCH, HUB NUT BOX

main09150-50040

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iJPD20202011-202301

COSTA RICA SPEC

sub42606-42080

main42606-30011iJPD20202011-202301

SAUDI ARABIA SPEC

sub42606-42080

main42606-30011iJPD20202011-202301

U.A.E. SPEC

sub42606-42080

main42606-42080iJPD20..LHD..H202301-202411

COSTA RICA SPEC

main42606-42080iJPD20..LHD..H202301-202411

SAUDI ARABIA SPEC

main42606-42080iJPD20..LHD..H202301-202411

U.A.E. SPEC

44890DCOMPRESSOR ASSY, AIR

main44890-12011iJPD20202109-202301

sub44890-42050

main44890-30030iJPD20202011-202108

sub44890-30031

main44890-42050iJPD20202301-202411

51960HOOK ASSY, FRONT

main51961-42060iJPD20202011-202411

51960AHOOK ASSY, REAR

main51961-11020iJPD20202011-202411

58792HSUPPORT, JACK CARRIER

10 parts on this diagram · 1 diagram in section
