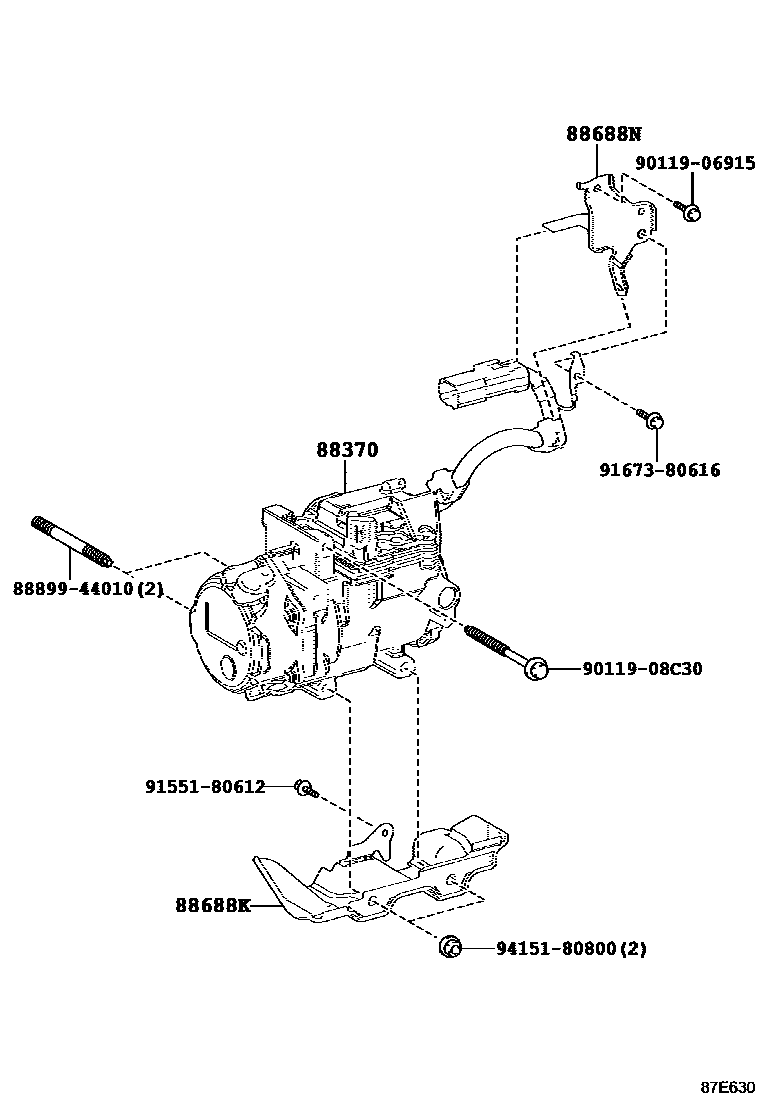

HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-62010iJPD10201506-202005

88688KBRACKET, COOLER COMPRESSOR

main88688-62030iJPD10201506-202005

88688NBRACKET, COOLER

main88688-62040iJPD10201506-202005

8889944010COVER, EVAPORATOR

main88899-44010

9011906915

main90119-06915

9011908C30

main90119-08C30

9155180612

main91551-80612

9167380616

main91673-80616

9415180800

main94151-80800

9 parts on this diagram · 1 diagram in section
