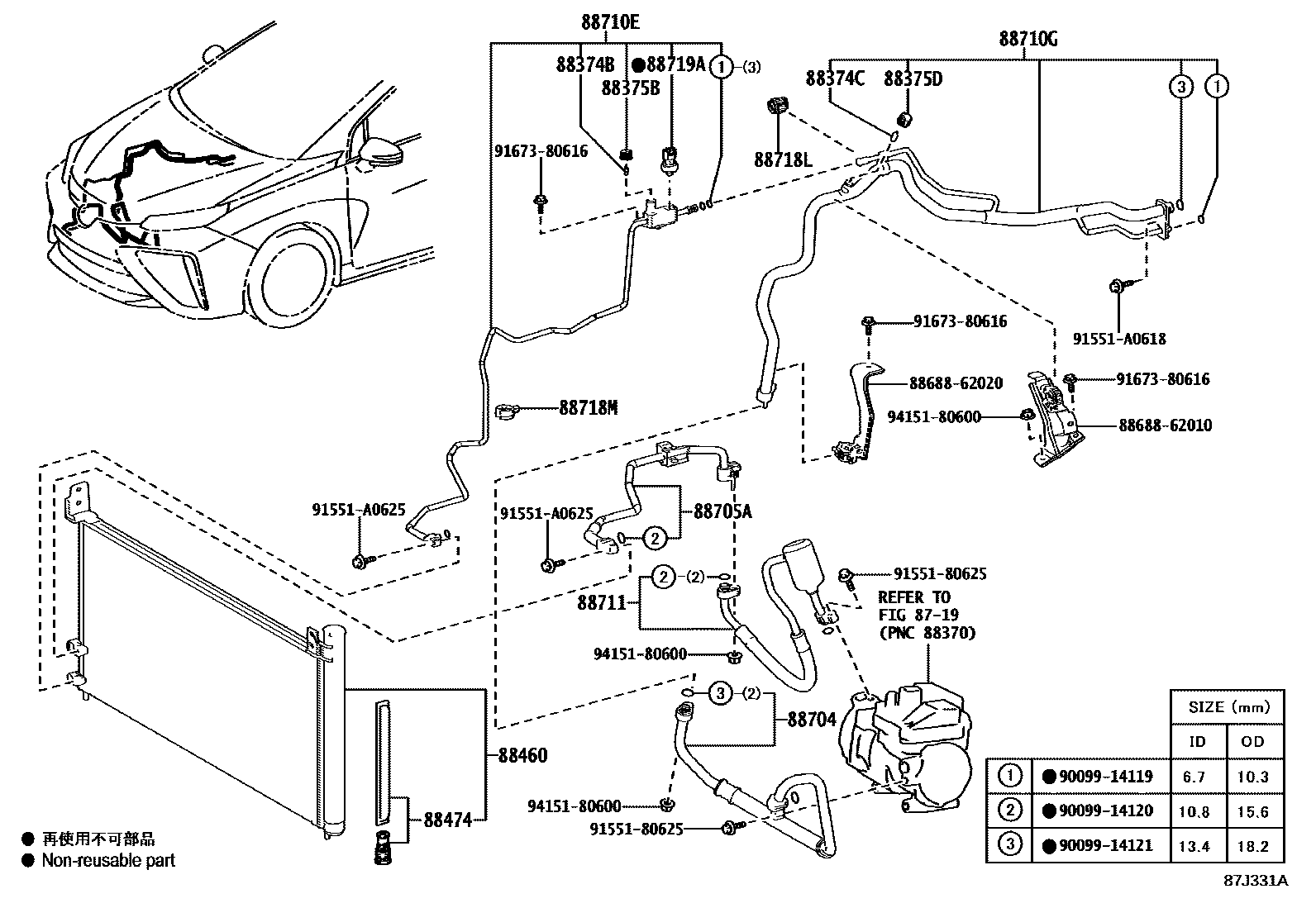

HEATING & AIR CONDITIONING - COOLER PIPING

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iJPD10201506-202005

88374CVALVE, SERVICE, NO.2

main88374-30010iJPD10201506-202005

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iJPD10201506-202005

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iJPD10201506-202005

88460CONDENSER ASSY, COOLER

main88460-62010iJPD10201506-202005

88474DRYER, COOLER

main88474-47020iJPD10201506-202005

88704HOSE SUB-ASSY, SUCTION

main88704-62010iJPD10201506-202005

88705ATUBE SUB-ASSY, DISCHARGE

main88705-62010iJPD10201506-202005

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-62030iJPD10201506-202005

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-62020iJPD10201506-202005

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-62010iJPD10201506-202005

88718LCLAMP, PIPING

main88718-2D150iJPD10201506-202005

88718MCLAMP, PIPING

main88718-1E050iJPD10201506-202005

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iJPD10201506-202005

8868862010BRACKET, COOLER DIAPHRAGM

main88688-62010

8868862020BRACKET, COOLER DIAPHRAGM

main88688-62020

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91551A0625

main91551-A0625

9167380616

main91673-80616

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
