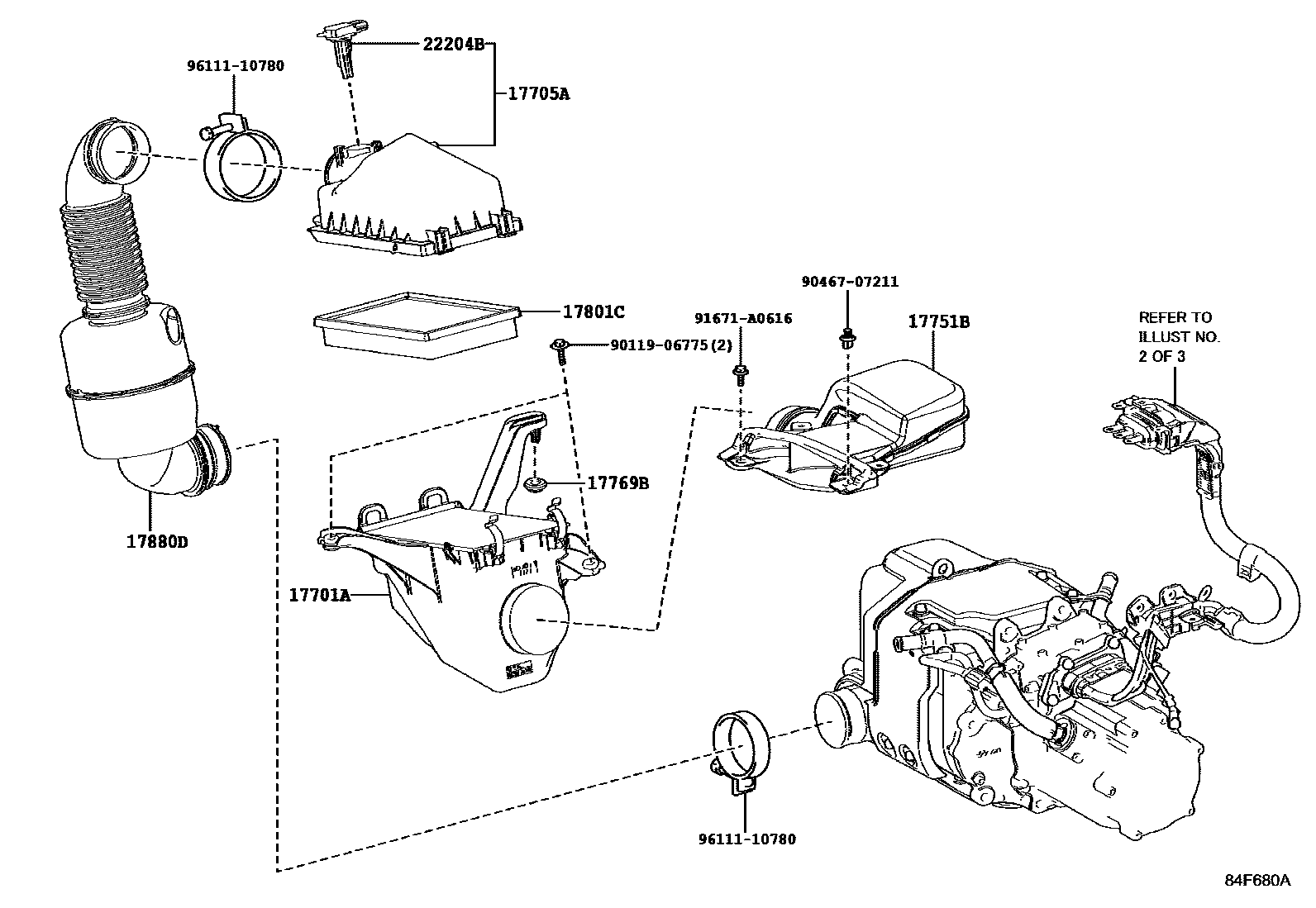

FCEV INTAKE & EXHAUST

0001 1 0002 1 0003 1

17701ACASE SUB-ASSY, AIR CLEANER

main17701-77180i4JM..JPD10201506-202005

17705ACAP SUB-ASSY, AIR CLEANER

main17705-77070i4JM..JPD10201506-202005

17751BINLET, AIR CLEANER

main17751-77040i4JM..JPD10201506-202005

17769BSUPPORT, AIR CLEANER

main17769-38010i4JM..JPD10201506-202005

17801CELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050i4JM..JPD10201506-202005

17880DHOSE ASSY, AIR CLEANER

main17880-77010i4JM..JPD10201506-202005

22204BMETER SUB-ASSY, INTAKE AIR FLOW

main22204-30020i4JM..JPD10201506-202005

9011906775

main90119-06775

9046707211

main90467-07211

91671A0616

main91671-A0616

9611110780

main96111-10780

11 parts on this diagram · 3 diagrams in section
